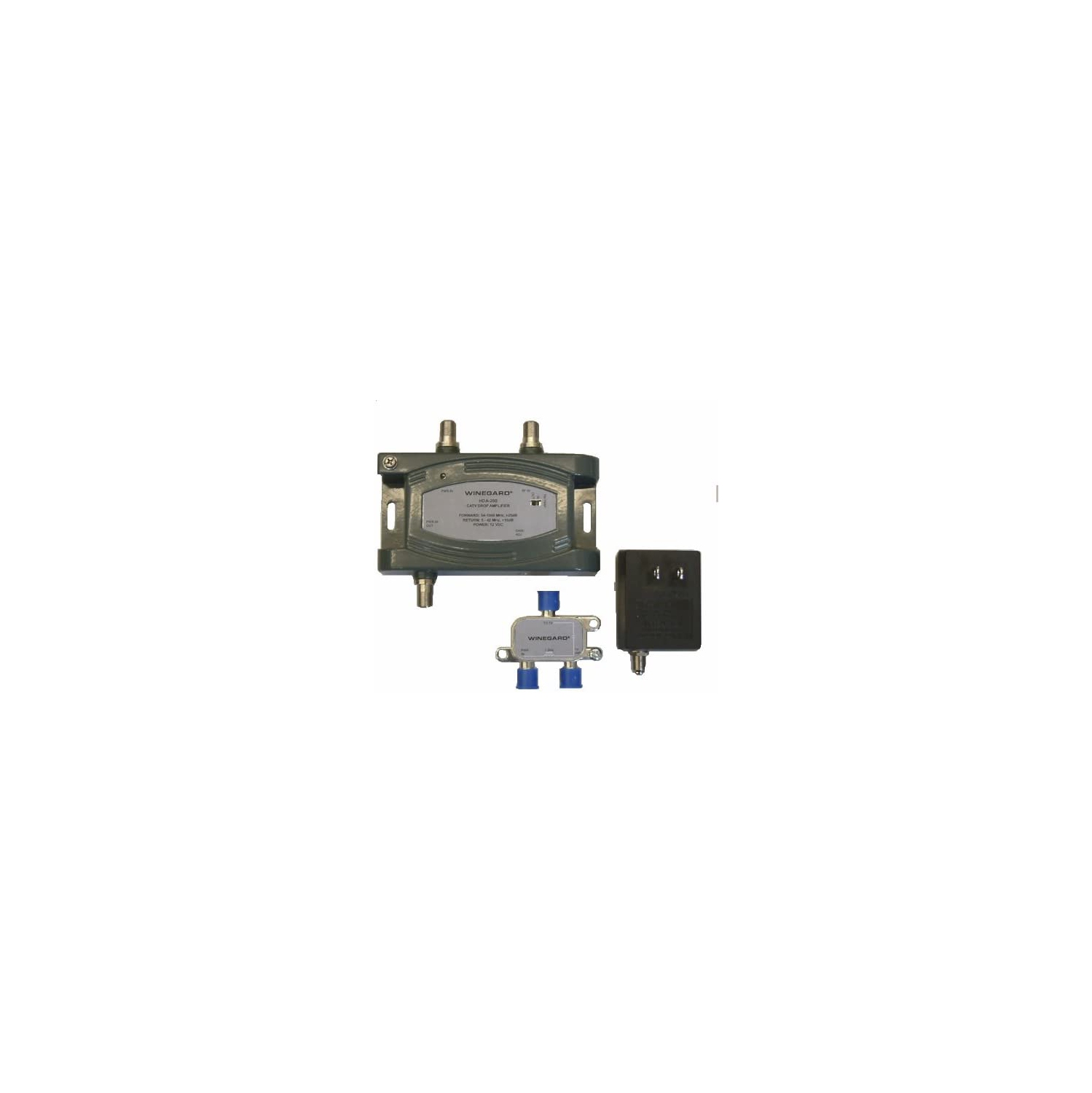

WINEGARD HDA-200 BI-DIRECTIONAL AMPLIFIER

Winegard's new HDA series of Distribution Amplifiers was designed to meet the market demand for a heavy duty, quality built, cost effective solution for the amplification and distribution of analog/digital broadcast signals from Off-Air and cable TV stations. Both the HDA-100 & HDA-200 are housed in an industrial grade, weather resistant enclosure. Each unit has an RF input, amplified RF output, and DC power insertion jack. Each amplifier also provides a 5-42 MHz 2-way bi-pass.

The HDA-200 has a single RF input, 24 dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at +12 dB gain. The HDA-200 has 0-18 dB gain control and 20 dB "switchable" FM trap, and a return path.

•If using an indoor antenna, dont expect a big boost in signal unless your cable lengths is over 20 ft and/or you are splitting the signal

•Amp works best when located as close to the source (Antenna, or Cable TV Drop)

•Can be located anywhere in the system its convenient

•Housing Dimensions: 4.90"W x 3.92"H x 1.5"D

•Power Supply Voltage: 12VDC-200 mA

•Power Supply and Inserter Included

•Bandpass Forward: 54-1000 MHz

•Weather resistant enclosure

•Noise Figure: 4.5 dB

•Adjustable Gain

•Gain: 24 dB

•FM trap

SPECIFICATIONS

•Bandpass Forward: 54-1000 MHz

•Bandpass Reverse: 5-42 MHz

•Max Output per Channel (80 ch CATV): +25 dBmV (Note 1)*

•Max Output per Channel (16 ch off-air): +40 dBmV (Note 2)**

•Max Input per Channel (80 ch CATV): +8 dBmV (Note 1)*

•Max Input per Channel (16 ch off-air): +23 dBmV (Note 2)**

•Max Input Reverse Amp: +23 dBmV (at 1dB comp)

•Gain: 24 dB

•Gain Control: 0-18 dB

•Reverse Gain: +12 dB

•Noise Figure: 4.5 dB (at max gain)

•FM Trap: -20 dB (95-108 MHz)
