More Practical. More Professional. More Powerful.
1100W, 125 dB SPL peak@1m, portable PA system with 5 channel digital mixer, 12-inch subwoofer, 1.5-inch x 10 line array speaker, a Bluetooth input, SPX digital reverbs, Priority Ducker and 1 knob EQ and multi band comp for master output.

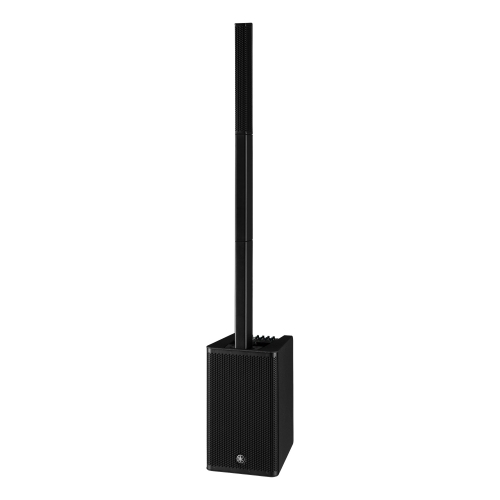

The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, Yamaha has raised the bar for portable PA.
Key Features
* 1100W power output
* Biggest in class 12-inch subwoofer for low frequency
* 1.5-inch x10 slim line array speaker for high frequency
* Digital mixer (3 mono mic/line + 1 stereo line)
* Multi band comp "MODE" for master output
* 1-knob EQ per channel
* High resolution SPX digital reverb (4 types, parameter control)
* Priority Ducker for stereo channel
* 4 band PEQ per channel via remote control APP "STAEGPAS Controller"
* 2x Hi-Z (high impedance) inputs
* Link out and monitor out
* Dedicated cover included
* Optional reverb foot switch (FC5)
* Optional dolly (DL-SP1K) for more portability
Simple setup and simple control allow you to focus on your performance
The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like "Speech" or "Music" to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow and letting you focus on your performance.
Best-in-Class Compact Power
A 1100 W amplifier drives the array speaker with 10 small-diameter 1.5-inch units, as well as a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.
Digital mixer with versatile input
With outstanding flexibility for a PA system of this size, the 5-channel digital mixer features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to Phone and 1/8-inch mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide range of input sources from instruments to CDs, PCs and smartphones.
Expandable STAGEPAS systems
Linking two STAGEPAS 1K mkII or a STAGEPAS 1K mkII with a DXL1K provides greater coverage area and increased output power for large-scale performances. Both stereo and mono playbacks are supported, and when set to mono, the inputs of the two linked units can still be used.
* 2x STAGEPAS 1K mkII: up to six mono inputs plus two stereo inputs
* A STAGEPAS 1K mkII and a DXL1K: up to five mono inputs plus one stereo input
Specifications
Type: Powered subwoofer with a line array speaker
Mixing capability
Mixing channels: 5 (Mono x3 + Stereo x1)
Input channel functions: Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
Output channel functions: MODE (SPEECH/MUSIC/CLUB)
I/O
Inputs: Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
Outputs: Link out x1, Monitior out x1
Bluetooth: Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and others: Reverb foot switch, STAGEPAS Controller (iOS/Android app)
On-board processors
DSP: SPX digital reverb (4 program, parameter control)
General Specifications
Speaker type: Powered subwoofer with a line array speaker
Frequency range (-10dB): 37 Hz - 20 kHz
Coverage area (HxV): 170° x 30°
Crossover frequency: 240 Hz
Maximum output level (1m; on axis): 125 dB SPL
Amplifier class: Class-D
Power rating, Dynamic: 1100 W
Power consumption: 25 W (idle), 91 W (1/8 power)
Power requirements: 110-120 V 60 Hz
Speaker Unit:
LF: Powered subwoofer: 12" (30 cm) Cone
HF: Line array speaker: 1.5" (3.8 cm) Cone x 10
Dimensions (W x H x D)
System: 334 x 2,000 x 418 mm (maximum)
Line array speaker: 67 x 582 x 86 mm
Powered subwoofer: 334 x 550 x 418 mm
Spacer: 67 x 555 x 86 mm (each)
Weight
System: 23.0 kg (maximum)
Line array speaker: 1.8 kg
Powered subwoofer: 20.0 kg
Spacer: 0.6 kg (each)
Handle: Top of powered subwoofer x1
Accessories: Power cord, Cover, Owner's Manual
Options: Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF), each sold separately
