The integrated 70V 'matching transformer' allows multiple C170's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (6W, 12.5W, 25W or bypass) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.

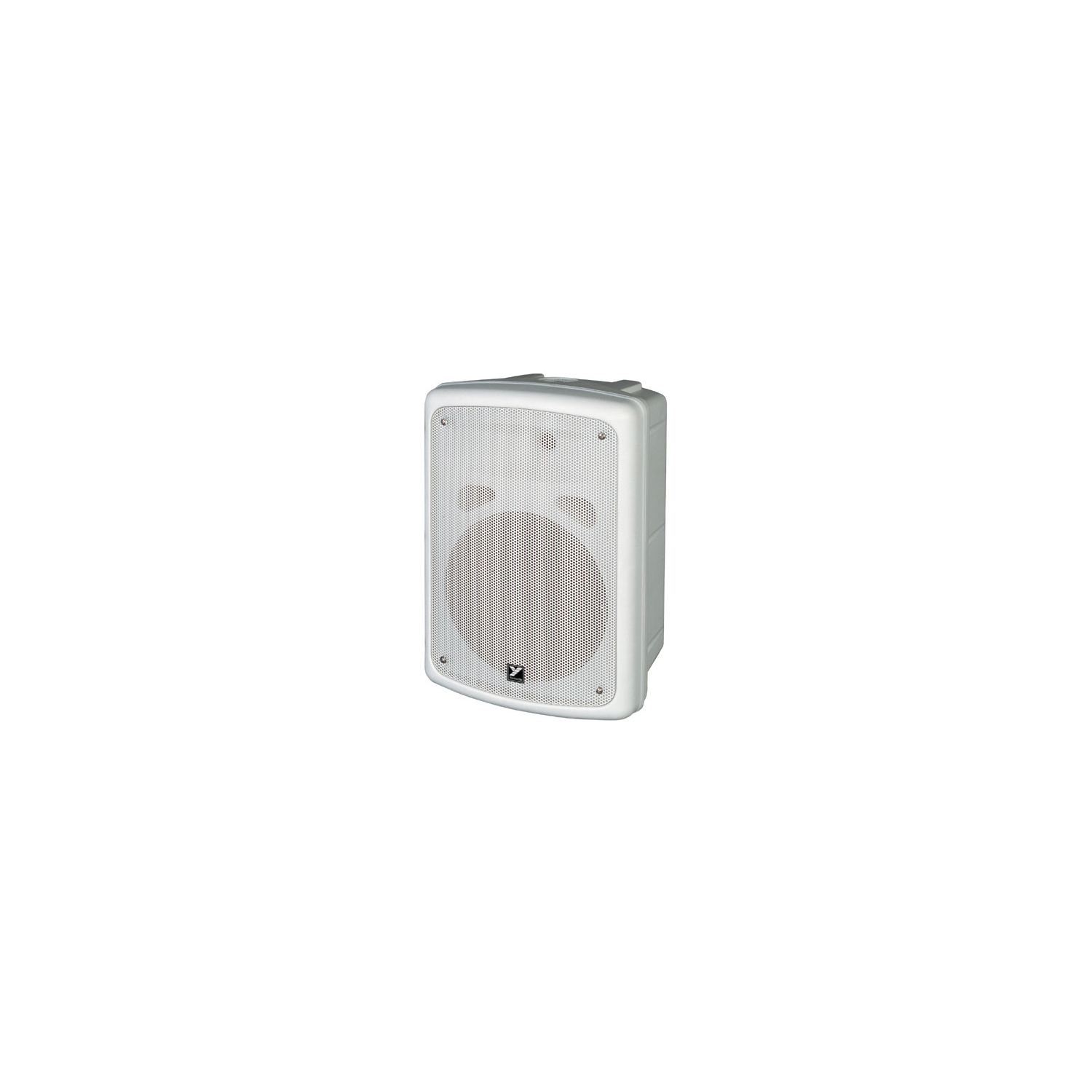

The C170 is based on the already popular C110, C120 and C130, which have a complete list of features that make them an extremely good value for fixed installations. The C170, is a compact 100-watt loudspeaker enclosure made from ABS plastic with an 8-inch driver and 1 inch Mylar tweeter, and features both dual binding posts and 1/4" connectors for maximum versatility.
The trapezoidal shape makes the C170 ideal for install or array mounting in tight locations. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they are a very versatile and cost-effective solution where superior sonic quality is required for small installations, or as a repeater or fill cabinet in larger venues. An optional polemount adapter (C170ADAPT) is also available for applications where placing the C170 on a speaker stand is required. The C170 is also available in white as the C170W, for situations where a more discreet speaker is required.
Features:
* High Performance Two-Way Installation Loudspeaker
* 8-inch Woofer / 1-inch Mylar Dome Tweeter
* 70-volt as well as 8-ohm Operation
* Power Taps at 6, 12.5 and 25 Watts
* 100 watts (8-ohm mode)
* 1/4-inch and Binding Post Inputs
* Heavy Duty ABS Plastic Cabinet and Metal Grille
* Mounting U-Bracket Included
* Available in White (C170W) or Black (C170) Finishes
* Optional Stand-Mount Adaptor (C170ADAPT) is Available
Specifications:
* System Type: 2-Way
* Active or Passive: Passive
* Program Power (Watts): 100
* Biampable: No
* Nominal Impedance (Ohms): 8
* Sensitivity (dB @1Watt/1m): 93
* Max SPL (dB): 113
* Frequency Response (Hz +/- 3db): 60 - 20000
* Driver Configuration: 8 inch / 1 inch dome tweeter
* HF Driver(s): 1 inch Mylar Dome Tweeter
* LF Driver(s): 8 inch
* LF Program Power(Watts): 100
* LF Impedance(Ohms): 8
* Inputs - 1/4" Jacks: 2
* Inputs - Binding Post: Yes
* Feet: Yes
* Included Hardware: Mounting Bracket
* Optional Pole Mount Adapter: C170ADAPT
* Enclosure Materials: ABS Plastic
* Grille: Perforated Metal
* Optional Finish: White (order as C170W)
* Dim. (DWH+back,in.): 11.25 x 9.75 x 16.25 x 9.5
* Dim. (DWH+back cm): 28.5 x 25 x 42 x 24
* Weight (lbs/kg): 14.5 / 6.6
