3Meter/10Ft RG316 RF Coaxial Cable 50 Ohm with BNC Male to SMA Male Connectors, Low Loss BNC Male to SMA Male

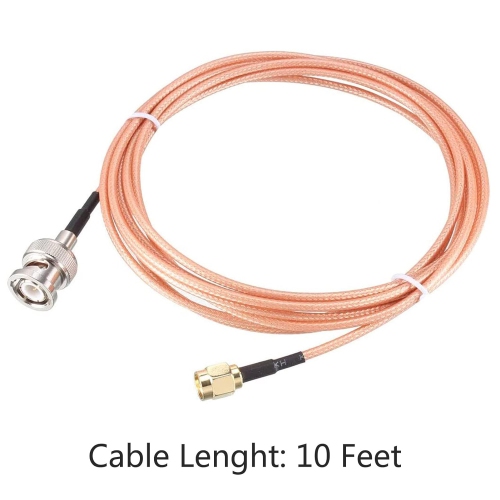

PACKAGE&SIZE 1pc RG316 coaxial cable; cable length: 3Meter/10Ft

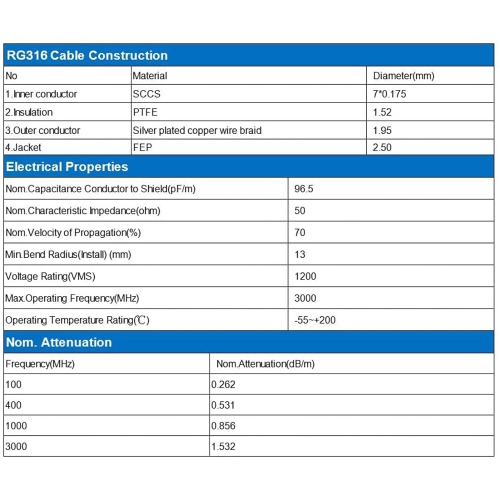

SPECIFICATION Cable: RG316, Adapter: BNC Male to SMA Male, Impedance: 50 ohm, Inner Conductor: silver-coated copper wire(SCCS), Insulation: PTFE, Shield Layer: tinned copper, Contacts Material: Gold Plated Brass Pin, Connector Material: Nickel Plated Brass, Jacket: FEP

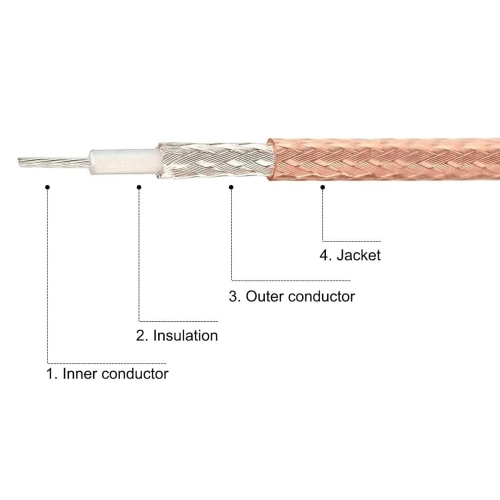

LOWER LOSS The RG316 coaxial cable has 4 structures: conductor, insulation, shield layer and FEP jacket, which means less attenuation, light weight, moisture resistance, and corrosion resistance. Meanwhile its BNC Male to SMA Male connectors provide a reliable low-loss interface for your RF equipment, which is the perfect choice for the best coax possible.

GOOD BUILD QUALITY The inner conductor of this RG316 RF coaxial cable is made of silver plated copper and the connector body is made of nickel plated brass. The coverage of outer copper braid shield layer up to 95%, which has better performance in oxidation and corrosion resistance.

APPLICATIONS This RG316 BNC Male to SMA Male coaxial cable is fully assembled. Widely used for antennas, antenna analyzer, dummy load, radio scanner, ham radio transceiver, SWR METER, CB radio handheld & amateur radio equipment.
