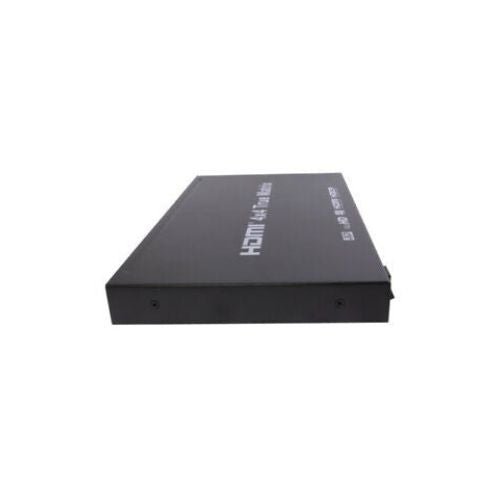

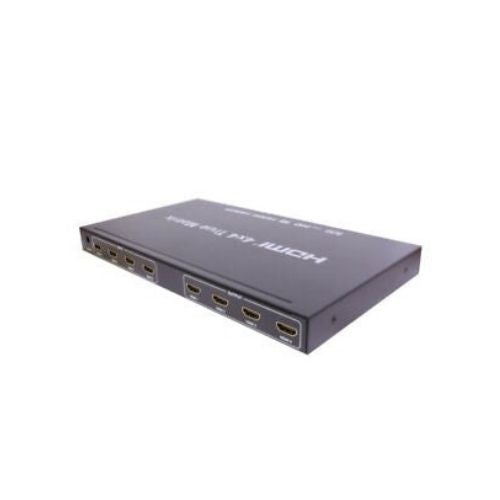

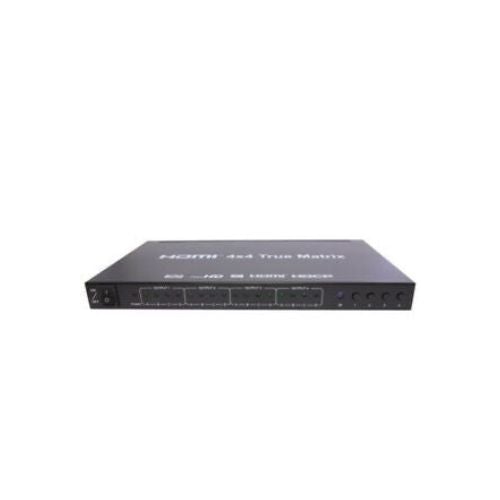

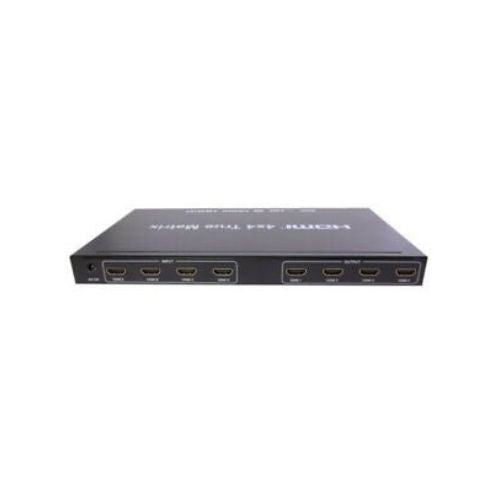

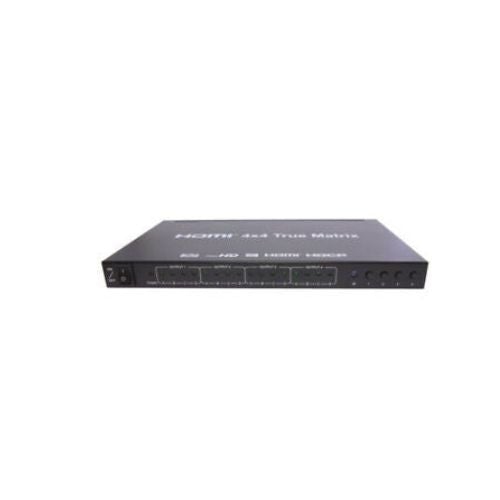

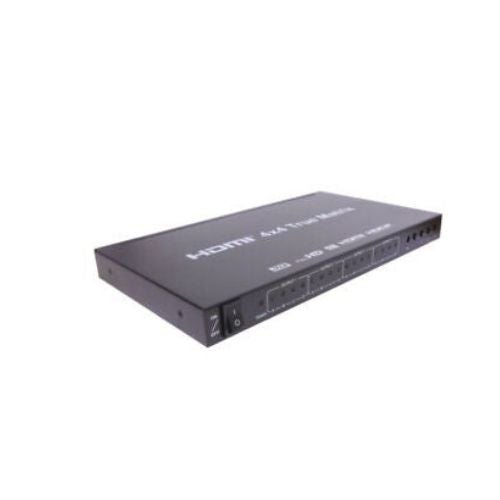

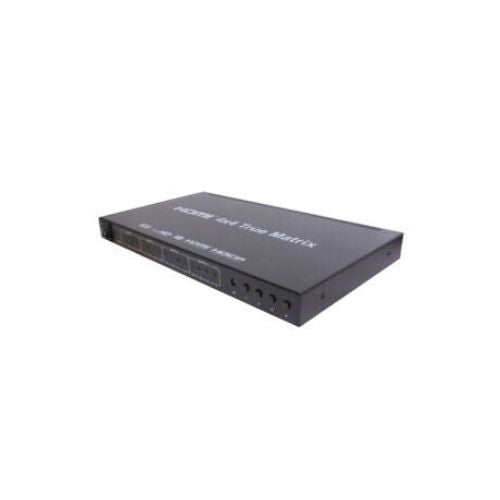

4x4 HDMI True Matrix Switch Splitter Selector Remote Control 3D 1080P 4 in 4 Out

·

Product Description:

This high-fidelity 4x4 HDMI matrix connects four HD sources to four HD signal terminals simultaneously.

It can easily switch or distribute four high-definition signals on two monitors or projectors with high-definition signals.

This 4x4 HDMI Switch allows to access to multiple HDMI sources. It allows 4 HDMI

devices to be switched easily to 1 to 4 compatible monitor or projector through

HDMI. The Product supports resolutions up to 4Kx2K 24/25/30Hz. It also supports

EDID RAM. The Product can also be placed at the end of a long HDMI cable to

regenerate the HDMI signal.

Our devices offer solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and

corporate training environments.

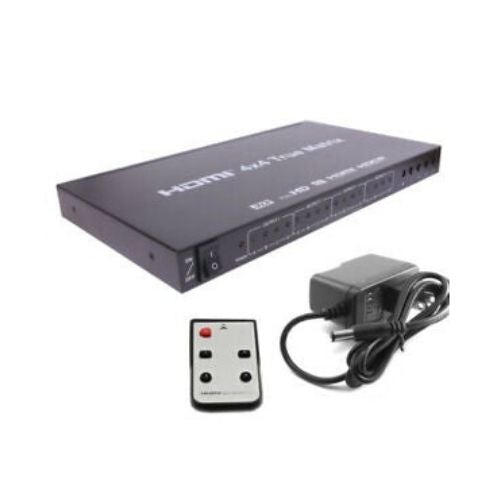

Packaging content:

1. HDMI 4x4 True Matrix x1

2. Remote controller x 1 (no battery)

3. User Manual x 1

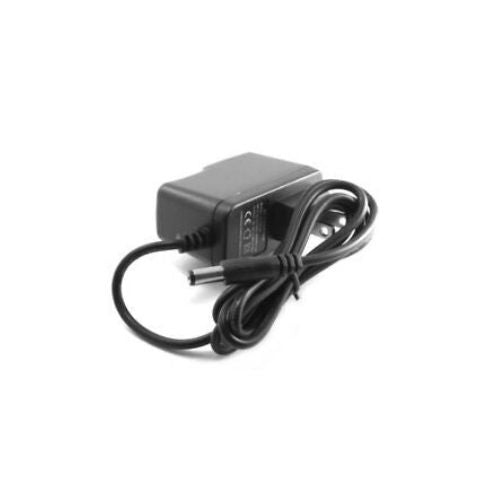

4. DC 12V Power Adapter x1

·

Features:

1. Supports 4 HDMI input ports.

2. Supports 4 HDMI output ports.

3. Compliant HDMI 1.4 specification.

4. Serial data rate at up to 3.0Gbps, capable of supporting the following

digital video formats in Deep Color Mode at up to 36 bits (12 bits/color).

5. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.

6. Supports Digital audio format, such as DTS-HD/Dolby-trueHD/LPCM7.1

/DTS/Dolby-AC3/DSD.

7. Supports signal retiming.

8. Supports Equalizer TMDS Output: 25MHz–300MHz TMDS clock.

9. Supports up to 300MHz TMDS clock rate(4Kx2K)for HDMI input.

10. Supports EDID RAM.

11. Supports 1080P input up to 15 meters AWG26 HDMI standard cable length,

output up to 20 meters AWG26 cable length.

12. Inputs can be switched with the IR remote control, also can be controlled

by button.

13. Extend the transmission distance and improve transmission signal.

14. Compatible with DVI through a HDMI to DVI adapter.

15. LED indicate signal and power mode.

16. No loss of quality.
