Overview

QoS: Port base,802.1p, IP DiffServ IPV4/IPV6,TCP/UDP port number, Pins configure ports priority (VIP port)Support max forwarding packet length 1552/1536 bytes optionSupport port mirror function; Support 1k MAC address; Support broadcast storm protection; Support port trunking (LACP)Support 16 VLAN (IEEE Std 802.1q): Port-based/Tagged-based VLAN; Support insert, remove tagBuilt-in 50 ohm resistors for simplifying BOM, 85nm Process, Package and operation temperature, IP175G: 48 Pin QFN(6x6

5 Port 10/100Mbps Fast Ethernet Switch HUB Desktop Network Adapter - axGear

Model: NET-SW-5E
Web Code: 15157204
Sold and shipped by | 3.7 seller rating (3,380 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • 1 x 5-Port Network Switch

5 Port 10/100Mbps Fast Ethernet Switch HUB Desktop Network Adapter

Description:

5 port Embedded 10/100 PHY Switch Controller

Support 5 100BaseTX or 4 100Base TX + 1 FX

Support Auto MDI-MDIX function

Power Management Tool: APS, auto-power saving while Link-off, IEEE 802.3az protocol based power saving & 10Mbps Te for 10Mbps

Light Traffic Power Saving: PWD, force-off power saving

Features:

Support Auto Factory Test, Single Power 3.3V supply

Built in Vcore Regulator, Two Priority queues per port

Support 802.1p & DiffServ based QoS

QoS: Port base,802.1p, IP DiffServ IPV4/IPV6,TCP/UDP port number, Pins configure ports priority (VIP port)

Support max forwarding packet length 1552/1536 bytes option

Support port mirror function; Support 1k MAC address; Support broadcast storm protection; Support port trunking (LACP)

Support 16 VLAN (IEEE Std 802.1q): Port-based/Tagged-based VLAN; Support insert, remove tag

Built-in 50 ohm resistors for simplifying BOM, 85nm Process, Package and operation temperature, IP175G: 48 Pin QFN(6x6), 0~70℃

Specifications:

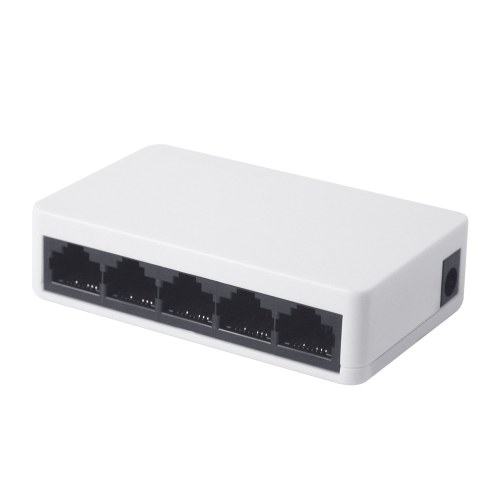

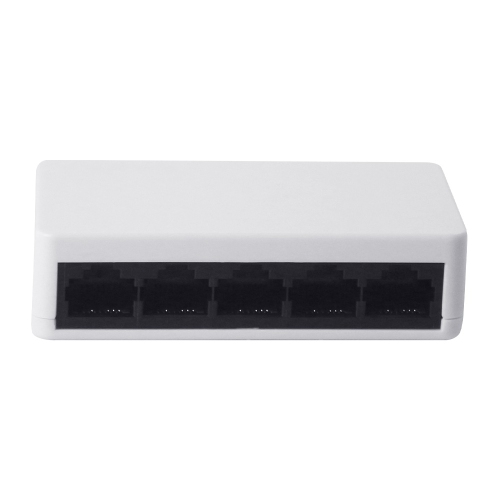

Port number: 5 port 10/100M Auto MDI-MDIX RJ45

Standard IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az

Network Media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data Rate: 10/100M

Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator: 10/100Mbps(Link/Act), Power

Dimension: 81 x 51 x 21mm

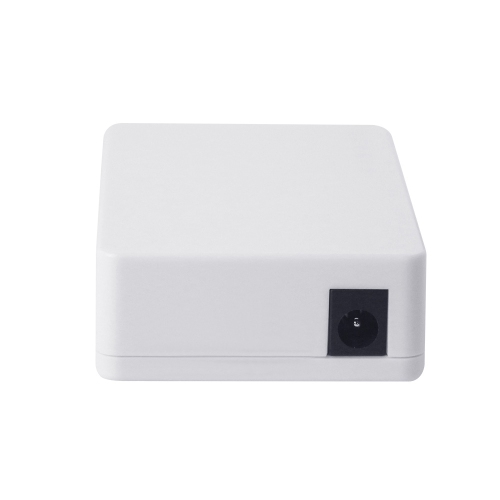

Power Input: DC5V/500mA

Power Consumption: Max1.5W

Environment:

Operating Temperature: 0 ℃-40 ℃

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40℃-70℃

Relative Humidity: 5%-90%(non-condensing)

Dimension: 8x5x2cm

Package Included:

1 x Network Switch

1 x Power Adapter

Product Condition
Brand New
Type
Network Switch
Total Number of Ports
5
Ethernet Speed
10/100
