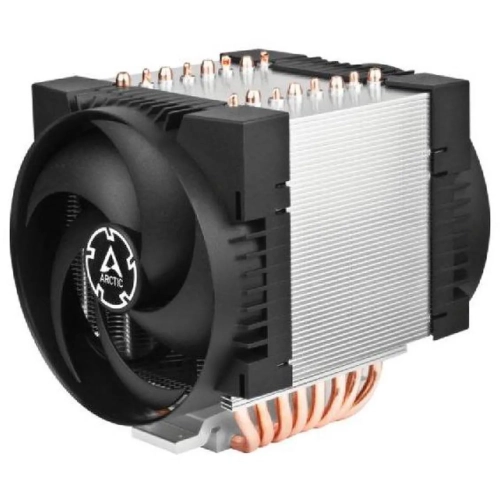

The Freezer 4U-M Rev. 2 stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel's LGA 4189 and LGA 4677, as well as AMD's SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. It also supports the Ampere Altra LGA4926*. Remarkably, despite its impressive cooling capabilities, the Freezer 4U-M Rev. 2 consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 64 cores and a TDP of up to 350 watts
Optional Ampere Mounting Kit
With the Ampere Mounting Kit, the Freezer 4U-M (Rev. 2) is compatible with the Ampere Altra LGA4926. Alternatively, a version of the product with an integrated kit is also available, the Freezer 4U-M Ampere.
Freezer 4U-M | Compatibel Processors
Versatile Multi-Compatible Server Cooler
The Freezer 4U-M Rev. 2 is compatible with a wide range of Intel and AMD server processors, including Intel sockets LGA4189 and LGA4677, as well as AMD sockets SP6, sTR5, SP3, TR4, sTRX4, and sWRX8. With a power consumption of only 2.88 watts while delivering high cooling performance, it emphasizes energy efficiency and is ideal for cooling high-performance processors with up to 64 cores and a TDP of up to 350 watts.
Compact_Design
RAM Compatibility and Clearance
The Freezer 4U-M Rev. 2 offers a generous 53 mm of clearance for memory, allowing the use of RAM modules with moderate heatsinks. This space facilitates efficient airflow and ensures compatibility with various types of RAM.
Compact_Design
Compact Design and Dual Socket Compatibility
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U-M Rev. 2 features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.
Airflow
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M Rev. 2's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Dual_Ball_Bearing_EN
Designed for continuous operation
Both fans of the Freezer 4U-M Rev. 2 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Freezer_4U_M_Rev2_Thermal_Paste
Premium Thermal Paste Included
The Freezer 4U-M Rev. 2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
