ART Pro Audio 8 Channel Stereo Rackmount Mixer

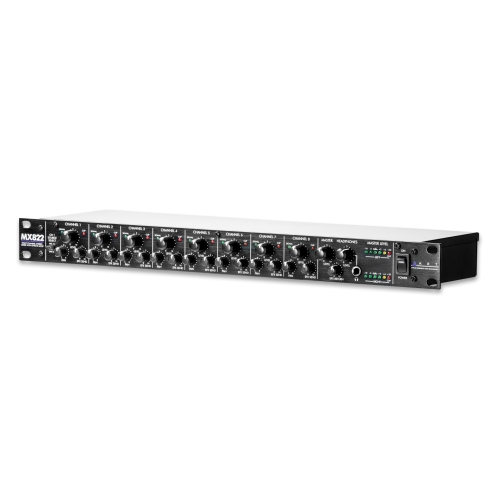

The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

FEATURES:

- Eight stereo/mono input channels with individual level, pan and effects send controls

- External effects loop with independent send and return controls

- Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for

output monitoring

- Switchable balanced microphone XLR or 1/4-inch inputs on Channel One

- Switchable low noise +48V phantom power for microphone input

- Separate green and red LED signal and clip indicators for each input channel

- Six level left and right main output metering including clip indicators

- Balanced left and right XLR main outputs

- Multiple units may be chained together for additional inputs

- Rugged 1U rack mount steel case

SPECIFICATIONS:

Input Connections:

- XLR-F balanced (MIC)

- 1/4" TRS unbalanced (Ch1-Ch8,Effects Return)

- 1/4" TRS stereo unbalanced (EFX Buss, Main Expand)

Output Connections:

- XLR-M balanced (Main)

- 1/4" TRS unbalanced (Effectss Send)

- 1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)

Input Impedance: 1k Ohms (MIC), 5k Ohms (Ch1-Ch8)

Output Impedance:
