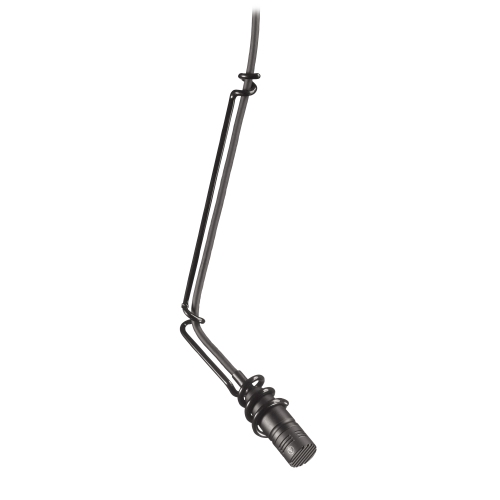

Perfect for speech, theater, orchestra and choir sound reinforcement and recording, the U853R cardioid condenser hanging microphone is equipped with UniGuard innovations that offer unsurpassed immunity from radio frequency interference. With a consistent cardioid polar pattern, the mic offers natural sound from any angle, and superior gain before feedback. It is phantom powered and features an integral 80 Hz low-cut UniSteep filter that reduces pickup of low-frequency ambient noise.
The microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine line cardioid polar patterns.
Features:
* Designed for suspension over choirs, instrumental groups and theater stages
* Superior off-axis rejection for maximum gain before feedback
* UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
* UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
* Accepts interchangeable elements to permit angle of acceptance from 90 to 360 degrees
* Low-profile design with low-reflectance finish for minimum visibility
Specs:
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 30Hz to 20kHz
Low Frequency Roll-off - 80 Hz, 18 dB/octave
Impedance: 250 ohms
Maximum Input Sound Level: 139 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range (typical): 115 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 70 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 2 mA typical
Output Connector (Power Module): Integral 3-pin XLRM-type
Weight (Microphone): 0.5 oz (14 g)
Weight (Power Module): 2.9 oz (81 g)
Dimensions (Microphone): 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter
DIMENSIONS (Power Module): 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
Cable: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector

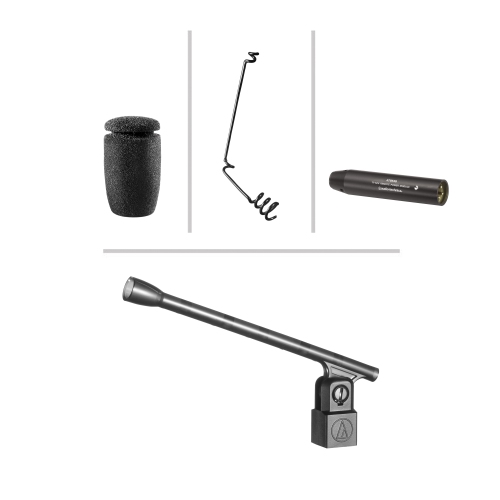

INCLUDED ACCESSORIES:
AT8153 two-stage foam windscreen;
AT8451 steel hanger;
AT8538 power module;
AT8438 5/8"-27 stand adapter
Audio-Technica Case Style - M12
OPTIONAL INTERCHANGEABLE ELEMENTS (sold separately)
UE-H hypercardioid (100 degrees);
UE-O omnidirectional (360 degrees);
UE-UL UniLine (90 degrees)
