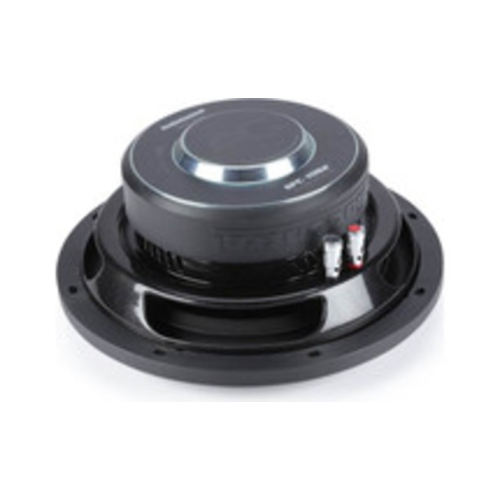

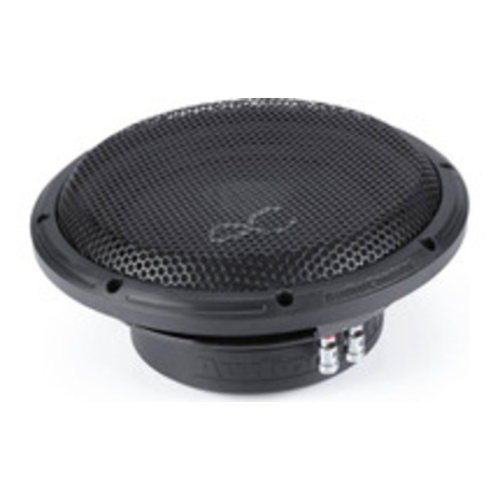

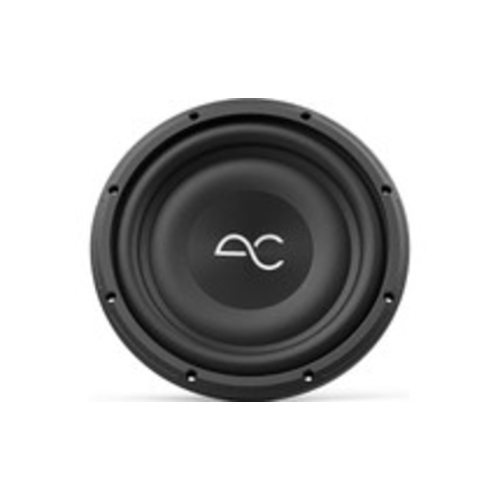

About: AudioControl SPC-10S4 10" 400W RMS Shallow Subwoofer - SVC 4 Ohm
Are you ready to take your musical experience to the next level? Look no further than the Space Series Subwoofers! These slim-yet-mighty subwoofers pack a big punch – delivering maximum low-frequency output in a shallow space. The ultimate solution for deep, rich bass in a sleek and slim design. Add in their weather-resistant features and you can enjoy your music in any environment, worry-free. No matter where you are, we know nothing beats blasting your favorite tunes and feeling your mood drastically improve. So what are you waiting for? Get the Space Series Subwoofers and enhance your vehicle’s listening environment by creating a powerful atmosphere of sound.
AudioControl has been helping people make good sound great in their cars for over 45 years, and the Space Series Subwoofers are no exception. The fiber matrix injection molded polypropylene cone ensures that every note is reproduced to perfection, so you can feel the bass hit. The 3-layer high temp voice coil former means they can handle even the most intense bass without breaking a sweat. And don’t worry about distortion ruining your jams – these subwoofers feature an optimal thermal efficiency design to ensure that your bass stays clean and clear. Not only do these subwoofers sound amazing, they’re also built tough. With their weather-resistant design and removable grille you can enjoy your music even if your vehicle likes to play off-road.
Features:
Low-Profile Shallow Mount Subwoofer
Fiber Matrix Injection Molded Polypropylene Cone
Weather-Resistant Design
3-Layer High Temp Voice Coil Former
Optimal Thermal Efficiency
Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
Removable Subwoofer Grille Included
Specifications:
Thiele/small parameters
Nominal Impedance (Z) 4 ohms
DC Resistance (Re) ]] 3.2 ohms
Resonance Frequency (Fs) 37.3460 Hz
Piston Area (Sd) 0.0330 m2
Force Factor (BL) 14.0082 T.m
Mechanical Q Factor (Qms) 2.8618
Electrical Q Factor (Qes) 0.4044
Total Q Factor (Qts) 0.3543
Sensitivity 1W/M (SPL) 87.2957
Mechanical Comp (Cms) 0.1719 mm/N
Moving Mass (Mms) 105.6787 g
Linear Excursion (Xmax) . 9 mm
Volume Acoustic Comp (Vas) 26.1432 Ltr/0.923238 cu ft
Reference Efficiency (NO.) 0.32% RMS
Power (Pe) 400 Watts
Frequency Response 20-250 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.045 cu ft/ 1.275 Ltr
Dimensions
Overall Dimensions: 10.39 in/ 264 mm
Cut Out Diameter: 9.13 in/ 232 mm
Mounting Depth: 3.5 in/ 89 mm
Mounting Height (w/o Grille): 0.71in / 18mm
Mounting Height (w/ Grille): 1.22 in / 31mm
Ported enclosure
External Dimensions: 24.00″ W × 14.50″H × 12″D
Net Internal Volume: 1.40 ft3
Total Internal Volume: 1.75 ft3
Gross External Volume: 2.38 ft3
Material Thickness: 0.75″
Tuning Frequency: 40 Hz
Port Area” 22.75 inch2
Port Inlet: 1.75″W× 13″H
Port Length: 22.25″
F3 (Hz): 34
Sealed enclosure
External Dimensions: 26″ W × 14.50″H × 5.00″D
Net Internal Volume: 0.60 ft3
Total Internal Volume: 0.65 ft3
Gross External Volume: 1.09 ft3
Material Thickness: 0.75″
F3 (Hz): 60
Qtc: 0.703
