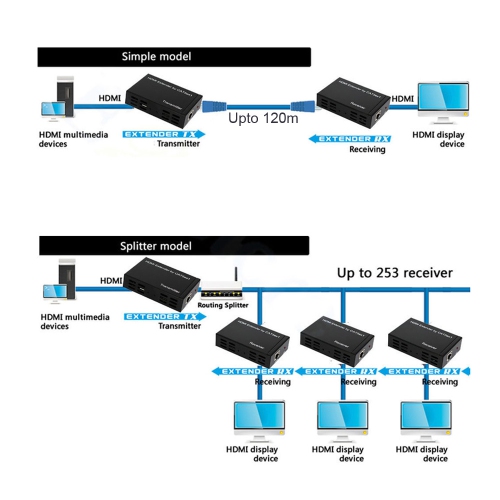

Send HDMI signal through One network cable or through TCP/IP networkEqualizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal qualityThe HDMI Extender over ONE CAT 5E/6 also support IR re-transmitting, so you can control the Source which is 120 meters outside using the HDMI ExtenderWhen transmitting a signal in 1080p resolution the CAT6 operating distance is 120 metersConnect the CAT6 in of the receiver with the CAT6 input of

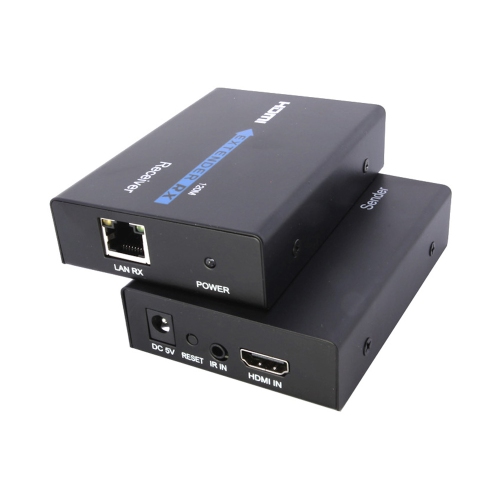

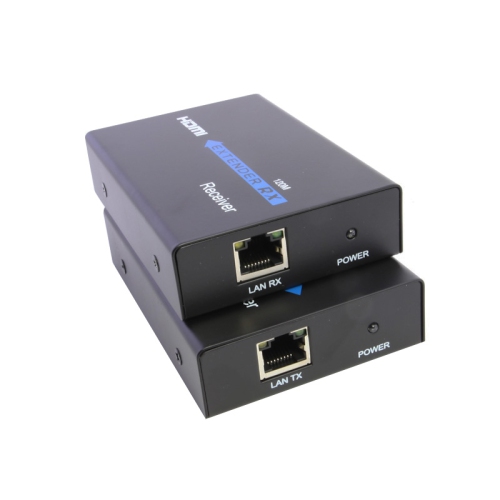

axGear HDMI Over Lan / TCP/IP Router Network IR Cat5e Cat6 RJ45 Ethernet Lan 120M 400Ft

Model: HDMI-TCPIP-120M
Web Code: 13276615
Sold and shipped by | 3.7 seller rating (3,379 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

HDMI Over Network / Lan Cable TCP/IP Extender

with IR Remote transmitter The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal up 120M over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI transmitter and receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender over ONE CAT 5E/6 also support IR re-transmitting, so you can control the Source which is 120 meters outside using the HDMI Extender.

Features:

DC 5V~12V wide power supply.

HDMI 1.3, and DVI1.1 compliant.

Support IR re-transmitting.

Uses one CAT5E/6 cable for data/DDC transmission.

Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.

When transmitting a signal in 1080p resolution the CAT6 operating distance is 120 meters.

Power Supply DC 5V Operation controls and Functions

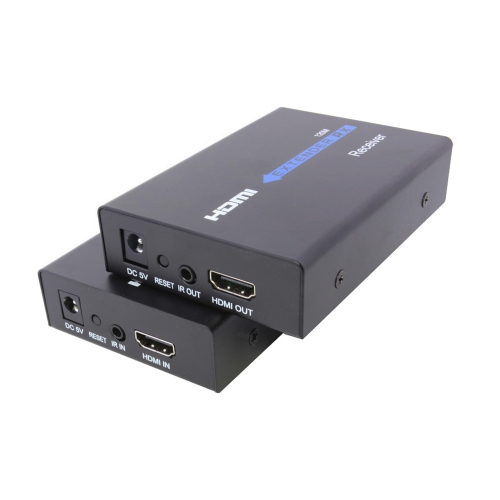

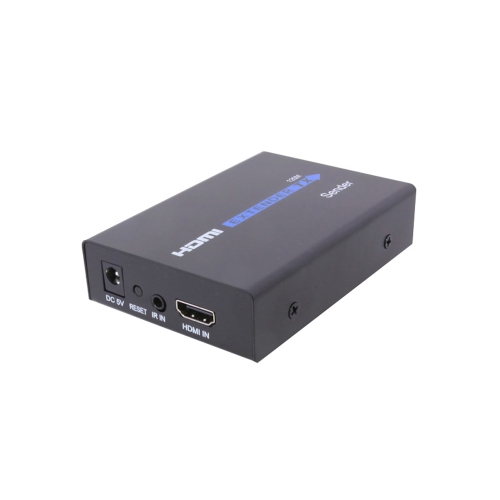

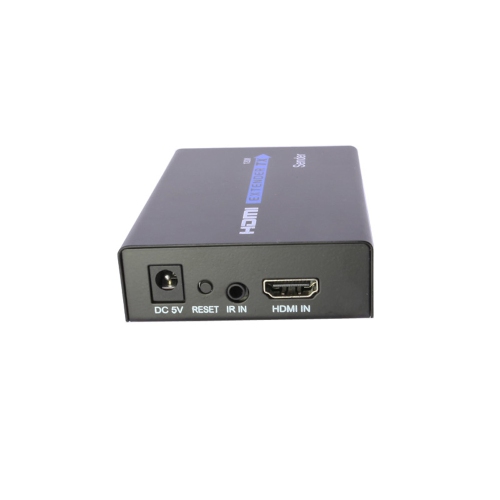

 - HDMI Extender Transmitter

RESET KEY: Factory default key.

IR OUT: Remote control signal transmit, connect the IR transmit cable with HDMI

Extender Transmitter; The IR transmit cable face to the IR receiver of the Source．

HDMI: HDMI Input port.

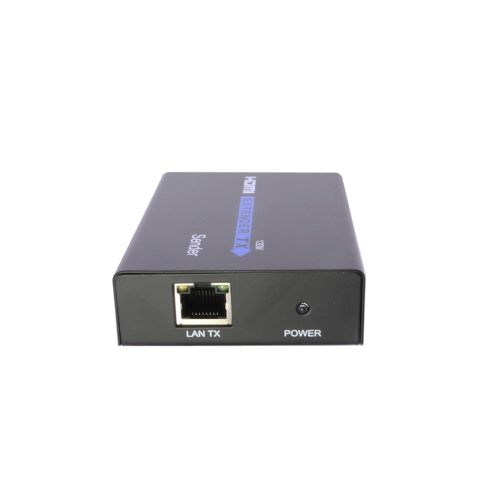

CAT6 OUT: Connect the CAT 5E/6 output of the Transmitter with the CAT 5E/6 input of the HDMI over single CAT6 receiver.

LED indicator: When the DC power on, the indicator will be light.

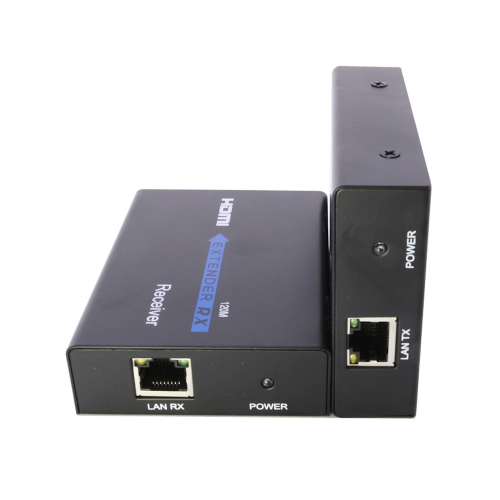

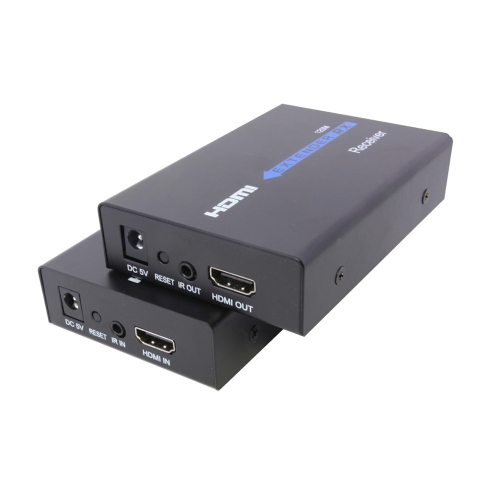

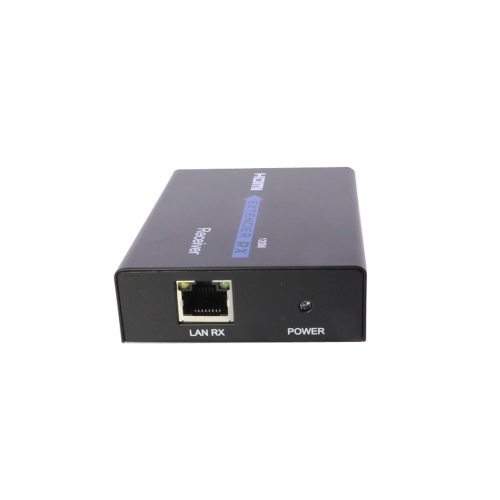

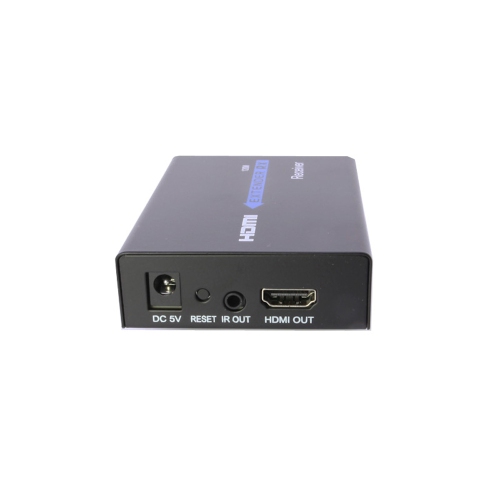

 - HDMI Extender Receiver

RESET KEY: Factory default key

IR IN: Remote control signal Receive, connect the IR receive cable with HDMI Extender Receiver．

HDMI Out: HDMI output port.

CAT6 IN: Connect the CAT6 in of the receiver with the CAT6 input of the HDMI over single CAT6 transmitter.

LED indicator: When the DC power on, the indicator will be light.

Package Included:

1 x Transmitter

1 x Receiver

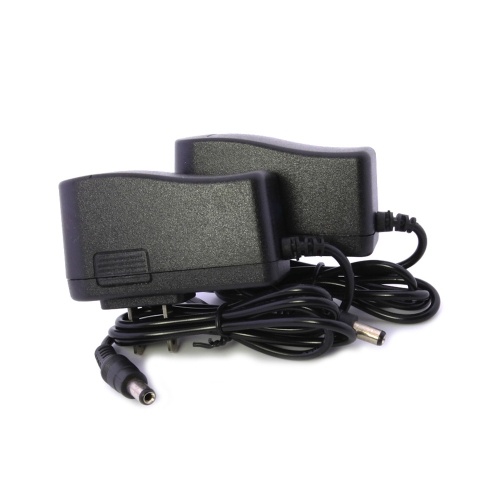

2 x Power Adapter

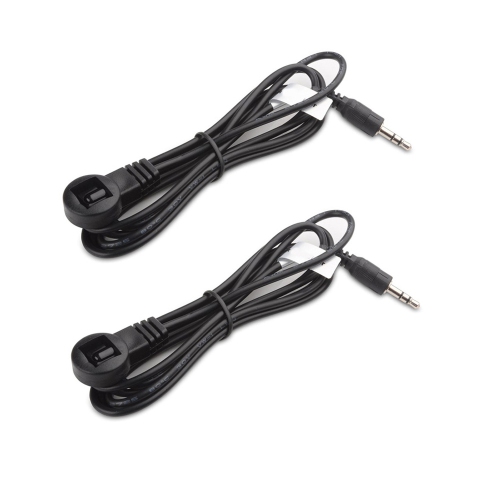

2 x IR Transmitter Cable

1 x User Manual

Product Condition
Brand New
