Overview

1x 3G/HD/SD-SDI Input4 x DVI-I Input4x VGA InputHDCP CompliantUp to WUXGA 1920x1200 CompatibleProgram and Preview OutputUp to Three Logo Stores/RecallDual PIP modeBuilt-in Test Patterns1 RU Height

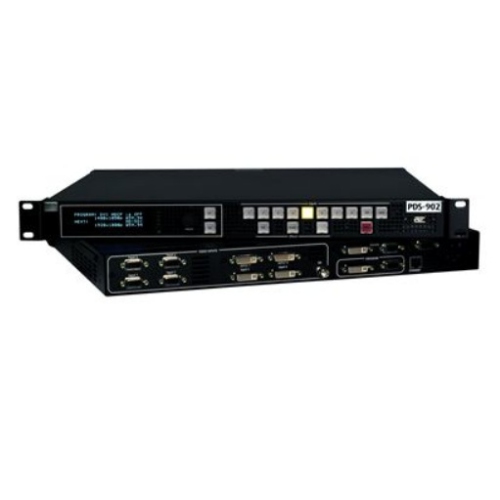

Barco PDS-902 3G-SDI Digital Switcher - US Version w/ Seller Warranty

Model: R9004694
Web Code: 14673673
Sold and shipped by

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

 The Barco PDS-902 3G-SDI Digital Switcher features four DVI-I inputs with full HDCP support, one 3G/HD/SD-SDI input, and four analog VGA inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to 3 images that can be used as a logo source during a presentation. Additionally, built-in test patterns are also provided.The PDS-902 switcher provides simultaneous program output via the DVI and analog VGA connectors. It includes a 3G/HD/SD-SDI output supporting BarcoLink for easy connection to Barco projectors (sold separately). In addition to the program output, the switcher offers a preview output that can be set at different resolutions than the program output. Users have the option of displaying 1 of 3 signals on the preview output, program, preview, or test pattern. Thanks to its straightforward setup and operation, the PDS-902 3G Switcher is well suited for live events, boardrooms, hotel ballrooms, houses of worship, education and training facilities, and fixed installations. Processing

Fast source acquisition

Fast and seamless switching

Auxiliary control from Encore and ScreenPRO-II controllers

Up to 3 Logo stores / recall capability

Low video delay

Software download via USB

Inputs

All resolutions from NTSC / PAL up to WUXGA including all HD resolutions

EDID support for analog and DVI sources

DVI-I, analog, 3G/HD/SD-SDI, and BarcoLink

HDCP 1.0 support for all DVI sources

Program and Preview Outputs

All progressive resolutions from 480p up to WUXGA / HD

DVI-I and analog VGA program output

3G/HD/SD-SDI program output with BarcoLink support

Full screen outputs and PIPs

Dual PIP mode

9 x 2 Matrix mode

Zoom and stretch fit modes

Supports HDCP compliant displays

Built-in test patterns

Independent resolutions for program and preview outputs

General

Auto-ranging power supply

Slim 1 RU height
