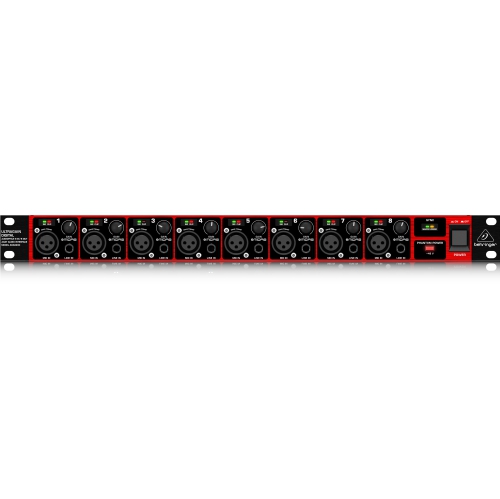

Audiophile 8 In/8 Out ADAT Audio Interface with MIDAS Mic Preamplifiers
The incredible ADA8200 features stunningly-accurate, reference-class Cirrus Logic A/D - D/A converters and 8 Award-winning MIDAS-designed Mic Preamps - making it the natural choice of professional musicians and audio engineers alike. Your recording tracks will sound just as amazing as you imagined them - when you lay them down with the ADA8200!
* Ultra-high quality 8-channel A/D and D/A interface for virtually any digital recording/mixing environment
* 8 state-of-the-art MIDAS designed Mic Preamplifiers
* Phantom power on all microphone inputs
* Reference-class Cirrus Logic* 24-bit converters for ultimate signal integrity
* Processes 48 and 44.1 kHz sample rates
* External sample rate synchronization via word clock or ADAT* input
* Optical ADAT in/out interface for ultimate compatibility
* All mic/line inputs routed to the ADAT output
* ADAT input routed to all Line outputs
* "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
* 3-Year Behringer Warranty Program*
* Designed and engineered in Germany
Specs:
Microphone Inputs
Design: MIDAS designed microphone preamp
Type: XLR connector, electronically balanced, discrete input circuitry
Gain Range: +10 to +60 dB
Maximum Input Level: +6 dBu @ +10 dB gain for 0 dB FS
Impedance: 2.7 kΩ balanced
Phantom Power: +48 V, switchable
Line Inputs
Type: 1/4" TRS connector, electronically balanced, discrete input circuitry
Impedance: appr. 20 kΩ balanced, appr. 10 kΩ unbalanced
Gain Range: -10 to +40 dB
Maximum Input Level: +26 dBu @ -10 dB gain for 0 dB FS
Line Outputs
Type: XLR connector, electronically balanced
Impedance: appr. 1 kΩ balanced, appr. 500 Ω unbalanced
Max. Output Level: +16 dBu @ 0 dB FS
Digital Inputs
Type: TOSLINK, optical connector
Format: ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz
Digital Outputs
Type: TOSLINK, optical connector
Format: ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz
Sync
Source: Internal 44.1 / 48 kHz, ADAT input, word clock input
Word Clock: Type: BNC connector
Input level: 2 to 6 V peak-to-peak
Frequency range: 44.1 to 48 kHz
System
Frequency Range: 10 Hz to 24 kHz @ 48 kHz sample rate
THD: < 0.008%
Crosstalk: < -87 dB
Power
Power Supply: 100 ~ 240 V AC
Power Consumption: 15 W
Fuse: T 1A 250 V
Mains: Standard IEC receptacle
Dimensions (H x D x W): 1.75" x 8.5 x 19" (44.5 x 482.6 x 217.0 mm)
Weight: 4.6 lbs. (2.1 kg)
