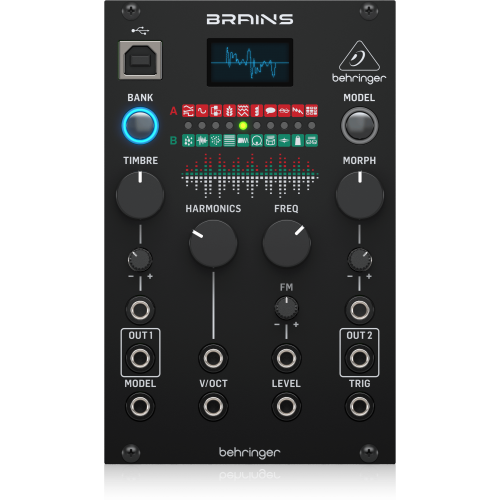

Behringer High-Resolution Multi-Engine Oscillator Module for Eurorack

The Behringer BRAINS is an amazingly versatile digital sound source for creating percussion sounds, leads and basses, as well as drones and soundscapes. With 20 digital oscillator modes, including many different control engines, you've got a wealth of different sounds and timbres to create some wild and out-of-this-world patches using chords, harmonic oscillation, particle noise, analog bass drum, snare, hi hat and even speech.

Specifications Inputs

Timber CV input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 50 kΩ

Max input level: +/-8 V

Harmonics CV input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 100 kΩ

Max input level: +/-5 V

Freq CV input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 50 kΩ

Max input level: +/-8 V

Morph CV input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 50 kΩ

Max input level: +/-8 V

Model CV input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 100 kΩ

Max input level: +/-5 V

V/oct input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 100 kΩ

Max input level: -3 to +7 V

Level input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 50 kΩ

Max input level: 0 to +8 V

Trig input

Type: 3.5 mm TS jack, DC to 2 kHz

Impedance: 50 kΩ

Max input level: 0 to +8 V

Outputs

Out 1

Type: 3.5 mm TS jack, DC coupled

Impedance: 1 kΩ

Max output level: 6.2 V

Out 2

Type: 3.5 mm TS jack, DC coupled

Impedance: 1 kΩ

Max output level: 6.2 V

Controls

Timbre: Darker or brighter content

Harmonics: Frequency spread or tonal balance

Frequency Adjustment

Morph: Panning or character

Bank: Toggles band A and B

Model: Scrolls through models in active bank

Digital Processing

A/D converter

Resolution: 16 bit

D/A converter

Resolution: 16 bit

Sampling rate: 96 kHz

Internal processing: 32-bit floating point

USB

Type: USB 2.0, type B

Power

Power supply: Eurorack

Current draw: 130 mA (+12 V), 10 mA (-12 V)
