Behringer P16-HQ 16-Channel Personal Monitoring Mixer

The Behringer P16-HQ builds on the success of P16-M, an industry favorite, with its new high-quality D-A converter, output amplifier, a design refresh and more! The P16-HQ is a great and affordable way to give performers control over their own monitor mix; leaving room for engineers to create the best overall mix possible.

The P16-HQ includes a new digital-to-analog converter with a dynamic range of 114dB, coupled with a new high-quality amplifier stage providing improved performance and volume, especially with low-impedance headphones and in-ears.

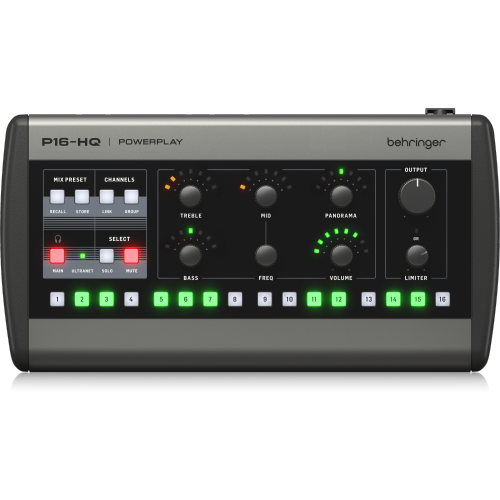

The P16-HQ sports a new look while maintaining the intuitive control surface that made P16-M so popular! All surface controls such as the 16 channel buttons, level, pan/balance controls have their own backlighting and LED indicators. All knobs and buttons are easily visible thanks to the backlighting and LED indicators added across the control surface. This allows the user to adjust on-the-fly, even on a dimly lit stage.

Specifications Audio Connections

Phones: 1/4" TRS, stereo

Line out: 2 x 1/4" TS, unbalanced

Ultranet Thru / In: 2 x RJ45

MIDI in: 5-pin MIDI connector

Performance Line Out

Frequency response: 20 Hz - 20 kHz (+0 / -0.5 dB)

THD+N: 0.002 % typ.

Residual noise: -99 dBu unweighted /-102 a-weighted

Crosstalk L / R: -75 dB

Output impedance: 1 kΩ

Max. output level: +12.5 dBu @ 200 kΩ load / +2.7 dBu @ 600 Ω load

Performance Phones Out

Frequency response: 20 Hz - 20 kHz (+0 / -0.1 dB)

THD+N: typ. 0.002 % / 0.007 % @

350 mW output power

Residual noise: -94.5 dBu unweighted /-97.5 dBu A-weighted

Crosstalk L / R: -90 dB

Max. output level

50 mW @ 600 Ω load

100 mW @ 300 Ω load

400 mW @ 30 Ω load

Controls

Equalizer

Bass: +/-12 dB @ 100 Hz, shelving

Mid: +/-12 dB, semi-parametric

Frequency: 100 Hz to 10 kHz, adjustable

Treble: +/-12 dB @ 10 kHz

Output

Limiter: Ratio ∞: 1

Level: -20 to +15 dBu (Phones)
