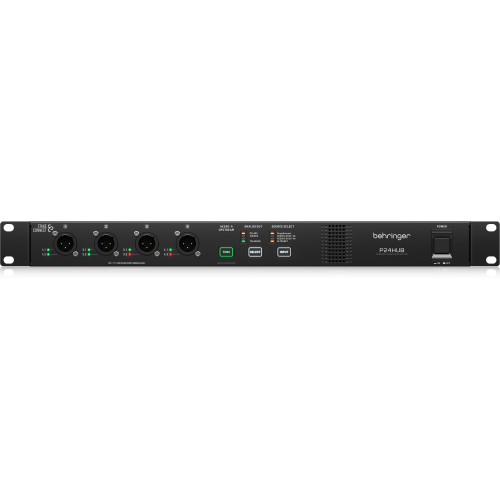

Behringer StageConnect Hub with Bus Powering for Personal Monitor Mixers

Having a dedicated monitor mix engineer can be expensive and running monitor mixing from FOH can be too demanding-- neither of these is ideal. What if every musician could create their personal monitor mix with a small dedicated mixer on-stage? That's what Personal Monitoring is all about!

Save time and energy by giving the control to the musicians! Personal monitors also allow for built-in effects, improving sound; built-in microphones, improving both communication and immersion; All controlled with a simplified user interface.

No matter if you're using a single P24 to provide an artist's mix in your studio recording room, or you're deploying a large setup for an orchestra pit with several daisy-chained P24HUBs-- setup and configuration is always a breeze.

The P24HUB is the obvious choice for larger setups especially in touring applications. However, several P24 personal mixers can be daisy-chained without a hub. This is ideal when supporting smaller impromptu gigs.

Specifications Connections

AES50 sync HOST/Master/thru: 2 x RJ45

ULTRANET input/output: 2 x RJ45

StageConnect HOST/Master: 1 x male

StageConnect CLIENT/Slave: 1 x female

StageConnect remote outputs: 4 x male

Analog outputs: 16 x 1/4" TRS

USB: Type B

AES50

Audio channels: 16/24

Sample rate: 44.1 / 48 kHz

Bit depth: 24 bit

Remote power: PoE (IEEE802.3at)

Latency: 146 μs at 44.1 Hz / 125 μs at 48 kHz

Cable length: up to 80 m

StageConnect

Audio channels: 24

Sample rate: 44.1 / 48 kHz

Bit depth: 24 bit

Phantom power : 12 V DC / 18 W

Latency : 146 μs at 44.1 Hz / 125 μs at 48 kHz

Cable: XLR balanced or DMX cable

Cable length : up to 40 m with 110 ohm DMX cable

Power

Power consumption : 125 W

Mains connection : Standard IEC receptacle
