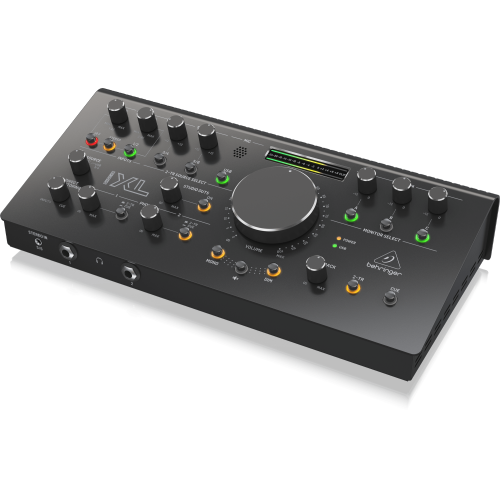

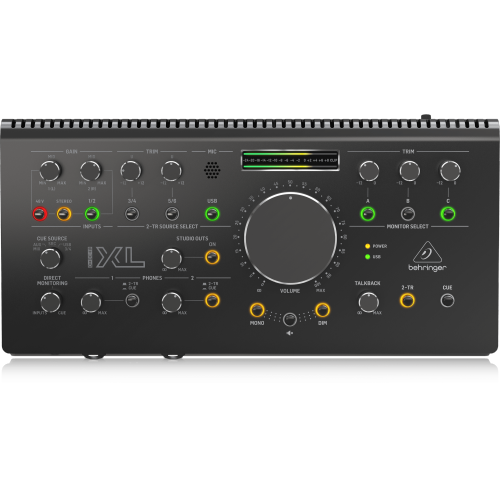

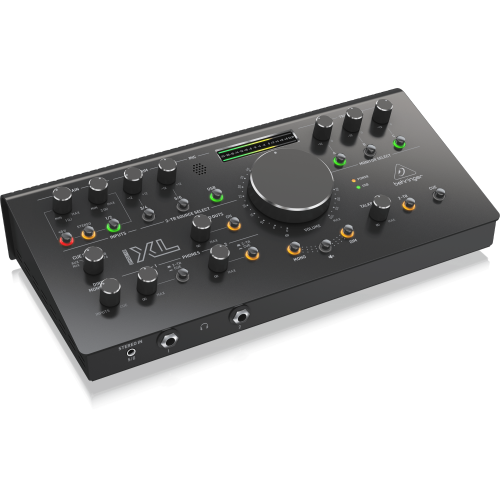

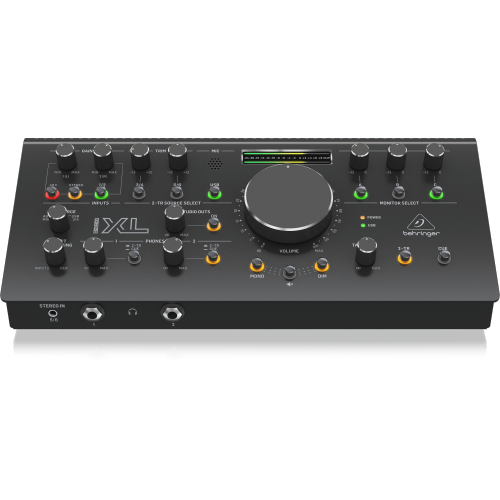

Behringer Studio XL High-End Studio Control and Communication Center

Midas Mic Preamp Legend Inside!

Did you know that Midas is one of the most recognized brands used by audio professionals around the world? Now you can get the gear the pros use! The STUDIO XL comes with two state-of-the-art Midas microphone preamplifiers with +48 V phantom power, ultra-low noise, high gain and audiophile quality.

The STUDIO XL is the ideal solution for home or professional studios, or as part of a larger setup. Premium, ultra-low noise components and high headroom lets your music shine at its best this is especially true for one of the most critical sources: Vocals!

Crystal Clear Signal Path at 192 kHz

The STUDIO XL is more than just a monitor controller Behringer added one of the best USB audio interfaces with the highest possible resolution and lowest latency. Full 192 kHz sampling rate at a clear 24-bit resolution will make you smile listening to the crisp and astonishing sound you'll get.

With the STUDIO XL, you won't have to worry about any USB noise or hum. A super-quiet USB I/O with up to 8 dB less noise than other audio interfaces on the market, while the lower output impedance on the STUDIO XL allows for even higher output volume.

VCA-Control - Not Just a Volume Knob

Unlike the typical and inexpensive potentiometers used by our competitors, the STUDIO XL utilizes high-end Voltage Controlled Amplifier (VCA) technology. While conventional monitor controllers directly pass the signal through the volume potentiometer, the STUDIO XL controls a separate high-precision amplifier circuit that drives the volume change. This gives perfect stereo and phase coherency, precision level adjustment, accurate sound and no quality degradation over time.

Behringer's really big dial allows you to make precise adjustments with ease and set levels fast and accurately critical to the final sound when it comes to mixing and mastering.

The All-In Device

The STUDIO XL integrates seamlessly into your existing setup. You can even make it the center piece of your studio. Thanks to the built-in audio interface and Midas microphone pre-amps it becomes an all-in-one recording solution, just add your computer and you're ready to go.

Instantly switch between audio sources, USB and monitor outputs. The large volume knob makes it easy to dial-in the perfect level every time, without having to reach for your mixer or your mouse. Now you can create powerful, custom monitor mixes. Plus, the built-in Talkback mic lets you communicate directly with the talent.

More Monitor Options

Today's recordings must sound great everywhere: in the car, at home, on your cell phone, soundbar, Bluetooth speakers and in the club It's essential experience your mix through as many speaker systems as possible.

The ultra-convenient STUDIO XL lets you switch between 3 independent pairs of studio monitors each with individual level adjustments. Listen through studio monitors (such as Behringer B2031A, MS16 or Tannoy GOLD 5), or any other combination at the mere press of a button!

Connections Matter

The STUDIO XL comes with three pairs of input connectors, additional Aux Mix stereo input, and a 3.5 mm (1/8") stereo input on the front for connecting a smartphone or music player, as well as three pairs of high-quality outputs to connect your favorite monitor speakers.

The first 2 inputs can be fed by a line source or any type of microphone, in any combination operating in dual mono or stereo-link mode. Not to mention the 2-Track and Studio/Phones Amp outputs which can be used for a variety of applications. Connect a 2-track digital recorder, an additional soundcard, mixer, headphones distribution amplifier or whatever you require.

Let's Communicate

You can select between an internal or external mic to talk to the talent in the isolation booth. The STUDIO XL's high-quality, built-in microphone is just a button push away. There's even a Talkback Footswitch option that frees up your hands and lets you concentrate on what's important, the music. The onboard headphone amplifier section lets you connect 2 pairs of headphones with individual level controls and a separate source selector, which will make the next session one of your best.

Not to forget, the STUDIO XL also comes with the most important switches exactly where you need them right at your fingertips. Mono and Mute buttons and even a Dim switch which instantly reduces the signal going to the monitor speakers by 20 dB. Perfect for momentarily lowering the volume to talk to someone without moving the knob.

High Quality, Best Value

Behringer designed the STUDIO XL to provide many years of super-clean, high-fidelity performance in the most critical listening environment yours! Built from the highest-grade components, the STUDIO XL is the perfect way to add a lot more convenience into your current studio setup.

Features* Premium, ultra-low noise and high headroom studio control and communication center

* All-in-one master volume controller, source selector, monitor switcher and talkback box

* 2 state-of-the-art, Midas mic preamplifiers with +48 V phantom power

* Audiophile 192 kHz 2x4 USB audio interface, perfect for computer-based studios

* True VCA control for extremely precise level control and stereo tracking

* 6 inputs with level controls plus additional aux mix input and USB monitoring from your DAW

* 3 independent and adjustable monitor outputs to connect up to 3 sets of studio monitors

* Versatile talkback options with built-in and external microphone input with footswitch and level control

* Convenient mono, mute and dim functions right at your fingertips

* 2 powerful headphone amplifiers with separate volume controls and source select switches

* Zero-latency direct monitoring with controlled blending between direct inputs and cue mix sources

* Quick-access aux input to connect your smartphone and music player for reference tracks

* High-precision dual LED meters for perfect level overview

SpecificationsInputs

Inputs: 6

Preamps: 2 x Midas designed

Type: 2 x XLR / TRS combo connector (mic/line)

Impedance: Mic: 3 kΩ / Line: 1 MΩ

Line inputs: 4 x 1/4" TRS, balanced or unbalanced, +4/-10 dB (Input 5/6 only), 1 x 1/8" TRS stereo (input 5/6)

Maximum input level: +22 dBu

Talback input: 1 x XLR

Footswitch: 1 x 1/4" TRS

Outputs

Outputs: 5 stereo

Line outputs: 10 x 1/4" TRS, balanced or unbalanced

Headphone outputs: 2 x 1/4" TRS stereo

Maximum output level: +22 dBu

USB

Type: Class compliant USB 2.0, type B

Supported operating systems: Windows 10/ Mac OS X 10.14 or higher

Audio: 2 in / 4 out

Converter resolution: 24-bit

Supported sample rate: 44.1, 48, 88.2, 96, 192 kHz

Talkback Section

Output level: -∞ to +10 dB

Talback level: -∞ to max

Takback destination: 2 track or cue

Talkback input: Internal (mic) or external (XLR)

Footswitch: Activates talkback

Controls

Phantom power: +48 V (inputs 1/2)

Volume: High-precision stereo tracking VCA volume control 0 - 100%

Playback controls: Mono, Mute, Dim

Monitor select: A, B, C

Input 1/2: 48 V on/off, Stereo on/off, 1/2 (channel select) on/off

Input 3/4: -12 to +12 dB Trim, 3/4 (channel select) on/off

Input 5/6: -12 to +12 dB Trim, 5/6 (channel select) on/off

USB input: USB (channel select) on/off

Muted: -60 dB

Dim: -20 dB

Cue source: Aux Mix, Source, USB 3/4

Studio outs: -∞ to max, on/off

Direct monitoring: Inputs to Cue blend

Phones 1/2: Level control -∞ to max, individual source select

System

Frequency response: 20 Hz to 20 kHz (+0.5 dB)

Signal-to-noise ratio: -90 dBu RMS, un-weighted

Distortion (THD+N): 0.01% @ 1 kHz, unity gain, 4 dBu input

Crosstalk: -60dB @ 1 kHz, unity gain, 4 dBu input

Power Requirements

Mains voltage: 100-240 V, 50/60 Hz

Power supply: 12 V DC 2000 mA

Power consumption: 18 W max

Physical

Standard operating temperature range: 5° C 45° C (41° F 113° F)

Dimensions (H x W x D): 80 x 328 x 163 mm (3.15 x 12.91 x 6.42")

Weight: 1.8 kg (3.97 lbs)
