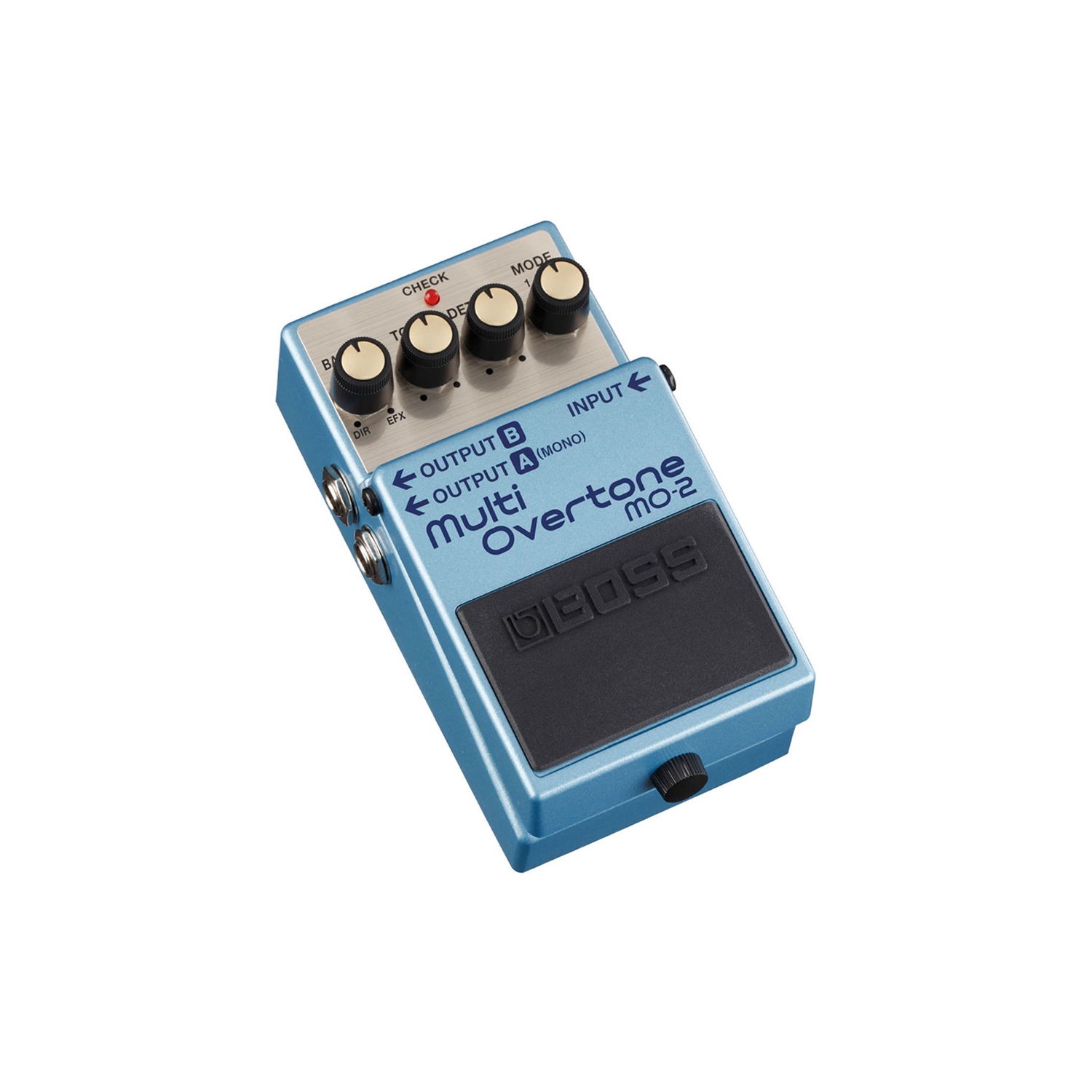

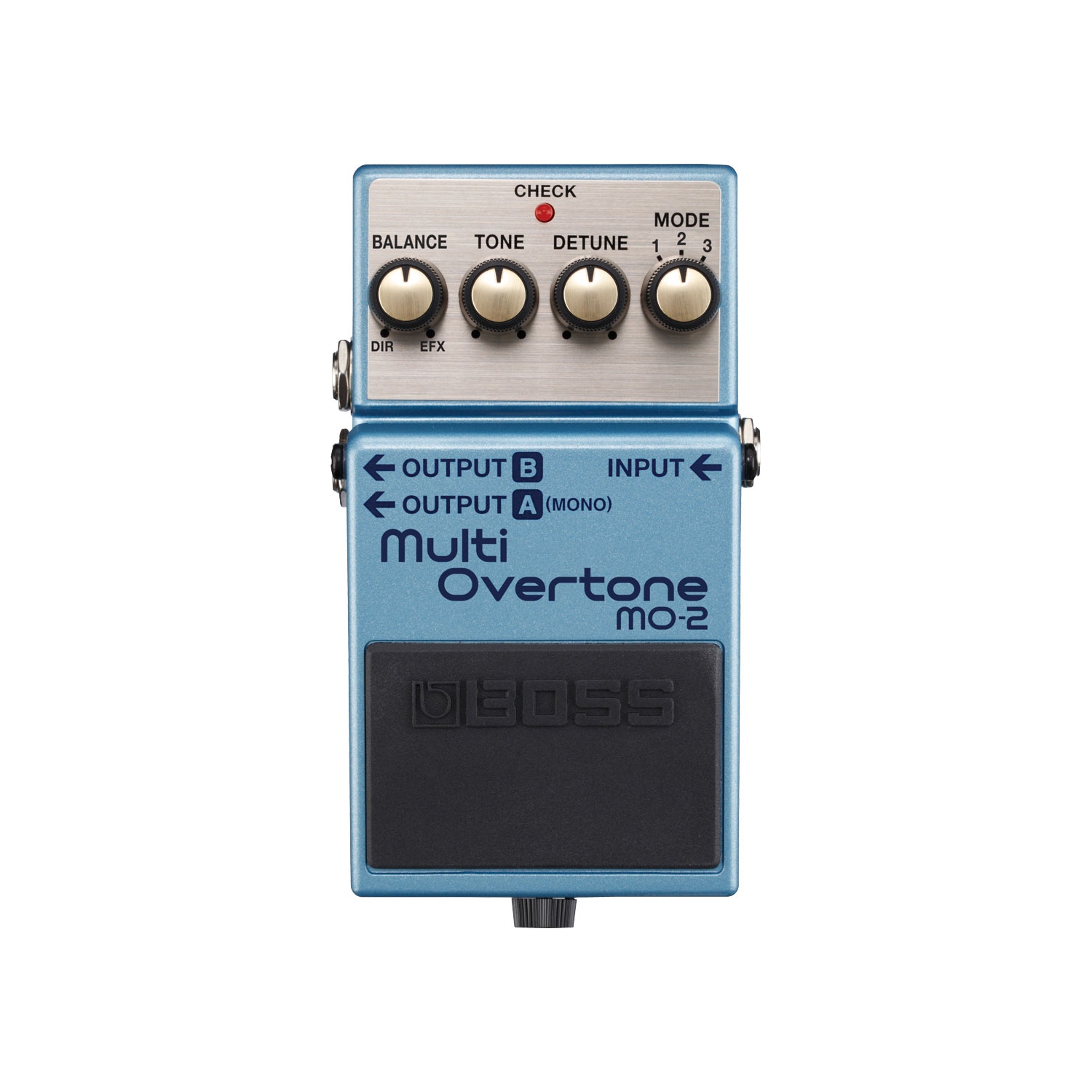

BOSS Multi Overtone Pedal

Expressive Compact with Distinctive, All-New Tones

Multi-Dimensional Processing for Superior Tone

Rolands innovative Multi-Dimensional Processing (MDP) analyzes audio signals in many dimensions and applies ideal effects to each. By giving different dynamic changes relative to the input signal in real time, MDP can create bold, all-new sounds with a previously unattainable range of expression.

MO-2: An Expressive New Voice

The MO-2 produces incredibly distinctive and expressive tones only possible with the magic of MDP. Using your guitars rich harmonic characteristics as a starting point, the MO-2 builds completely new voices that enhance and thicken your normal sound. Three different modes offer diverse tone-shaping options, while the DETUNE knob unlocks a wide range of impressive modulation effects. From shimmery multi-string resonance to flute-like transparency to powerful textures reminiscent of organs and synths, the MO-2 brings you an array of unique sonic tools that add all-new dynamic resonance characteristics to your guitar.

Specifications:

Nominal Input Level - 20 dBu

Input Impedance - 1 M ohm

Nominal Output Level - 20 dBu

Output Impedance - 1 k ohm

Recommended Load Impedance - 10 k ohms or greater

Controls - Pedal switch BALANCE knob TONE knob DETUNE knob MODE knob

Indicator - CHECK indicator (Serves also as battery check indicator)

Connectors - INPUT jack OUTPUT-A (MONO) jack OUTPUT-B jack AC adaptor jack (DC 9 V)

Power Supply - Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22) AC adaptor (sold separately)

Current Draw - 40 mA * Expected battery life under continuous use Alkaline: Approx. 10 hours Carbon: Approx. 3 hours These figures will vary depending on the actual conditions of use.

Accessories - Owner's Manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Alkaline battery (9V, 6LR61)
