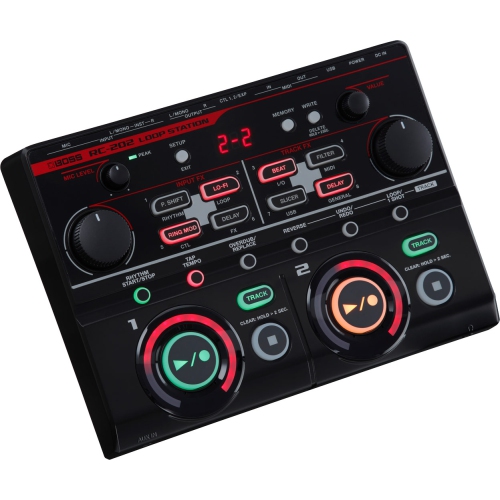

Perfect for club performers, electronic musicians, and beatboxers, the RC-202 packs powerful BOSS looping and multi-effects in a compact tabletop unit. Based on the popular RC-505 Loop Station, the two-track RC-202 offers the distinctive look and fingertip interface style of its big brother, plus a host of new features. Four Input FX and four Track FX are available at once, and loops can be saved to memories in real time for seamless creative expression while performing. Expanded foot control and MIDI capabilities are also included, ideal for looping musicians who have their hands occupied with guitar, keyboards, and other instruments.
FEATURES
* Advanced BOSS technology in a compact tabletop looper that can be operated with your hands
* Two simultaneous stereo phrase tracks with dedicated controls and loop status indicators
* Four Input FX and four Track FX simultaneously available for processing loops with DJ and sampler-style effects
* 64 phrase memories (8 memories x 8 banks), each containing two phrase tracks, custom effects/playback settings, and more
* external control via optional footswitches or expression pedal and MIDI
* XLR mic input with phantom power, mono/stereo instrument inputs, and stereo aux input
* 17 onboard rhythm patterns, including odd-measure beats
* USB for phrase import/export and DAW integration with computers
SPECIFICATIONS
Nominal Input Level:
INPUT MIC (variable): -40 dBu (typ.), -10 dBu (max)
INPUT INST: -10 dBu
AUX IN: -20 dBu
Input Impedance:
INPUT MIC: 4 k ohms
INPUT INST: 1 M ohm
AUX IN: 22 k ohms
Nominal Output Level: -10 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: OUTPUT: 10 k ohms or greater
Recording/Playback
Maximum Recording Time: Approx. 3 hours (stereo)
Maximum Phrase Memory: 8 Memory x 8 Bank
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
EffectS (INPUT FX/TRACK FX): 40
Effect Type (MASTER FX): COMP, REVERB
Rhythm Type: 17
Display: 7 segments, 3 characters (LED)
USB: Mass Storage Class, Audio/MIDI

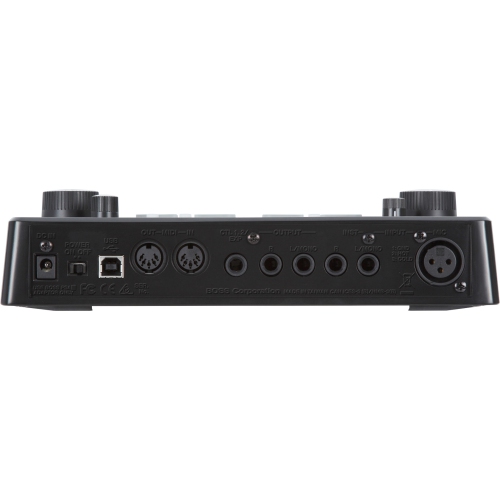

Connectors
- INPUT MIC jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max)
- INPUT INST (L/MONO, R) jacks: 1/4-inch phone type
- AUX IN jack: Stereo miniature phone type
- Phones jack: Stereo miniature phone type
- OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
- CTL 1, 2/EXP jack: 1/4-inch TRS phone type
- USB port: USB B Type
- MIDI (IN, OUT) connectors
- DC IN jack
Power Supply: AC adaptor
Current Draw: 400 mA
Accessories: AC adaptor
SIZE AND WEIGHT
Width: 239 mm / 9-7/16 inches
Depth: 175 mm / 6-15/16 inches
Height: 55 mm / 2-3/16 inches
Weight (excluding AC Adaptor): 0.95 kg / 2lbs. 2 oz.
