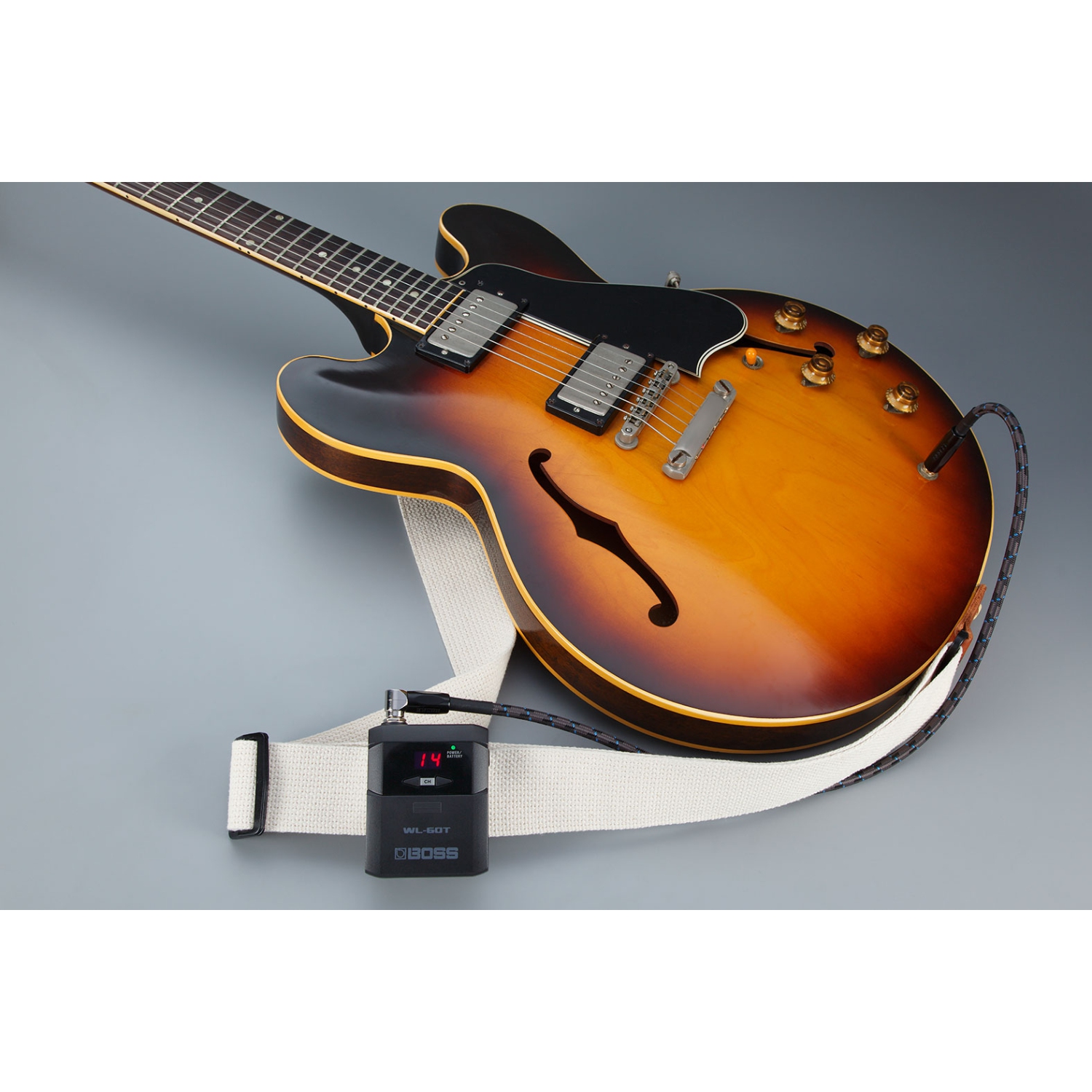

Wireless Freedom, Easy Setup Offering great tone, ultra-low latency, and effortless set up, BOSS's revolutionary WL series has made it easier than ever for musicians to go wireless. The WL-60 system is a great fit for serious stage performers, bridging plug-and-play simplicity with fast user-guided control. The compact receiver is tailor-made for pedalboards, and features a large visual display and direct-access buttons to quickly scan and select the best wireless channel. Rounding out the system is a rugged bodypack transmitter, which is compatible with nearly any instrument and runs for up to 25 hours on regular alkaline batteries. The WL-60T transmitter is available by its self and up to 14 transmitters can be paired to one receiver at once.
Features
* Premium audio performance with lightning-fast BOSS wireless technology
* Automatic 14-channel scanning makes set up quick and uncomplicated
* Large LCD shows channel status, wireless strength, battery life, and more
* Stompbox-size receiver fits easily on your pedalboard
* Bodypack transmitter works with nearly any instrument and runs for up to 25 hours on two AA alkaline batteries
* Transmission range: 20 meters/65 feet line of sight (may vary due to local conditions)
* Short high-quality cable included for connecting the transmitter to a guitar or bass
* Receiver powered by AC adaptor or two AA alkaline batteries
* Convenient DC output on receiver for powering other pedals (when using AC adaptor)
* Instrument input for using a standard cable without removing the receiver from a pedalboard
Receiver Specifications
Wireless Format: BOSS proprietary digital audio format
Wireless carrier frequency: 2.4 GHz
Compatible Channels: 14
Transmission Range: 65 feet line-of-sight (May vary due to local conditions)
Latency: 2.3 ms
Dynamic Range: 110 dB or greater
Frequency Response: 20 Hz--20 kHz
Nominal Input Level: -10 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -10 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Controls: CH button, SCAN button, ENTER button, CABLE TONE button
Indicators: Graphic LCD 64 x 32 dots
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, IN jack, OUT jack
Power Supply: Alkaline battery (AA, LR6) x 2, AC adaptor (sold separately)
Current Draw: 100 mA
Dimensions: 120 x 70 x 54 mm / 4.75" x 2.8" x 2.2"
Weight: 180 g / 7 oz
Transmitter Specifications
Nominal Input Level: -10 dBu (1 M ohm)
Controls: POWER switch, CH button
Display: 7 segments, 2 characters (LED)
Indicator: POWER/BATTERY
Connectors: INPUT jack: 1/4-inch phone type
Power Supply: Alkaline battery (AA, LR6) x 2
Current Draw: 110 mA
Dimensions: 88 x 68 x 30 mm / 3.5" x 2.7" x 1.2"
Weight: 120 g / 5 oz
