CT Sounds AT-500.1D 500W RMS Monoblock Car Audio Amplifier

About: CT Sounds AT-500.1D 500W RMS Monoblock Car Audio Amplifier

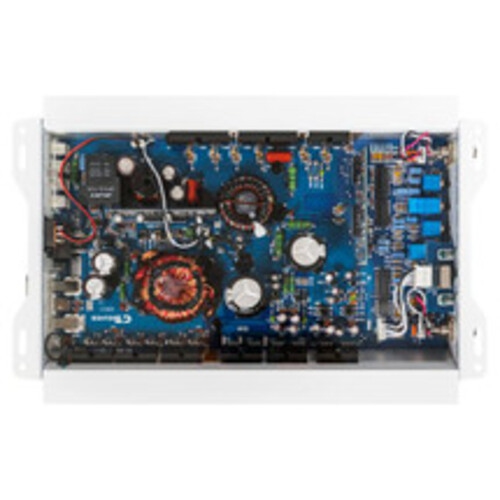

The CT Sounds AT-500.1d Monoblock Car Audio Amplifier will deliver the power you need to destroy the competition in the SPL lanes. Built using an advanced PCB board featuring Korean capacitors, MOSFET Pulse Width Modulated power supply, high-quality transformers, and cutting-edge inductors. Equipped with 4-way protection circuitry along with a Diode 6A60 for reverse polarity protection; sleep easy at night knowing your mono amplifier is protected.

The plexiglass backing, illuminated LED CT Sounds logo, and white chassis gives this amplifier an unbeatable appearance. Not to mention the amplifier comes with the highly sought-after AT Series On/Off Bass Knob which not only lets you adjust the bass boost but also displays your system voltage.

Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds AT-500.1d has the power to create the sonic explosion you crave. Variable adjustment controls feature gains, subsonic, bass boost, low pass filter, and phase settings so you can get the exact sound you are looking for out of your amplifier. The car monoblock amplifier is strappable so that you can get more power output should your system require it. It even has a master/slave switch for added convenience.

Product Highlights:

RMS Power: 1Ω @ 12.8v: 500 Watts x 1-Channel

RMS Power: 2Ω @ 12.8v: 250 Watts x 1-Channel

RMS Power: 4Ω @ 12.8v: 125 Watts x 1-Channel

Power & Ground Input Size: 4 Gauge

Speaker Input Size: 8 Gauge

Features:

MOSFET PWM (Pulse Width Modulated) power supply

Soft turn on circuitry

1-Ohm stable mono operation

Built in thermal, DC offset, overload and speaker short protection

Reinforced tiffany style nickel plated RCAs, ensuring low resistance inputs to the amp

LED power and protection indicators

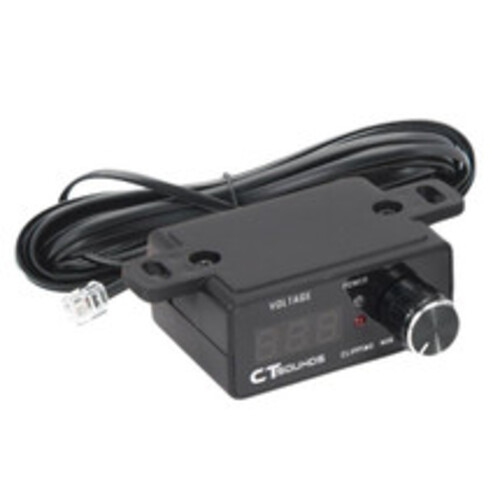

It comes with AT series remote bass knob; the knob includes digital volt-meter; power/clip light indicator & rotary pushable on/off switch. The knob is easily installable using the 8-pin Cat5 connectors on both ends of the black wire (included in the package).

Pure Class-D car audio amplifier

Specifications:

No of channel: 1

Frequency response: 10Hz ~ 250Hz

Gain adjustment: 0.2v ~ 5v

Subsonic adjustment: 10Hz ~ 50Hz

Phase adjustment: 0o ~ 180o

Bass boost: 0dB ~ +18dB

Signal to noise ratio: 100dB

Damping factor: 180

Minimum impedance: 1Ω (ohm)

Low pass filter: 35Hz to 250Hz

No of fuses: 2 x 30A (each)

Strappable: Master/Slave switch

Bass knob: Remote gain control, clip light indicator, built in voltmeter & push-able on/off switch

Dimensions (W x H x L): 190 x 54.5 x 260 mm
