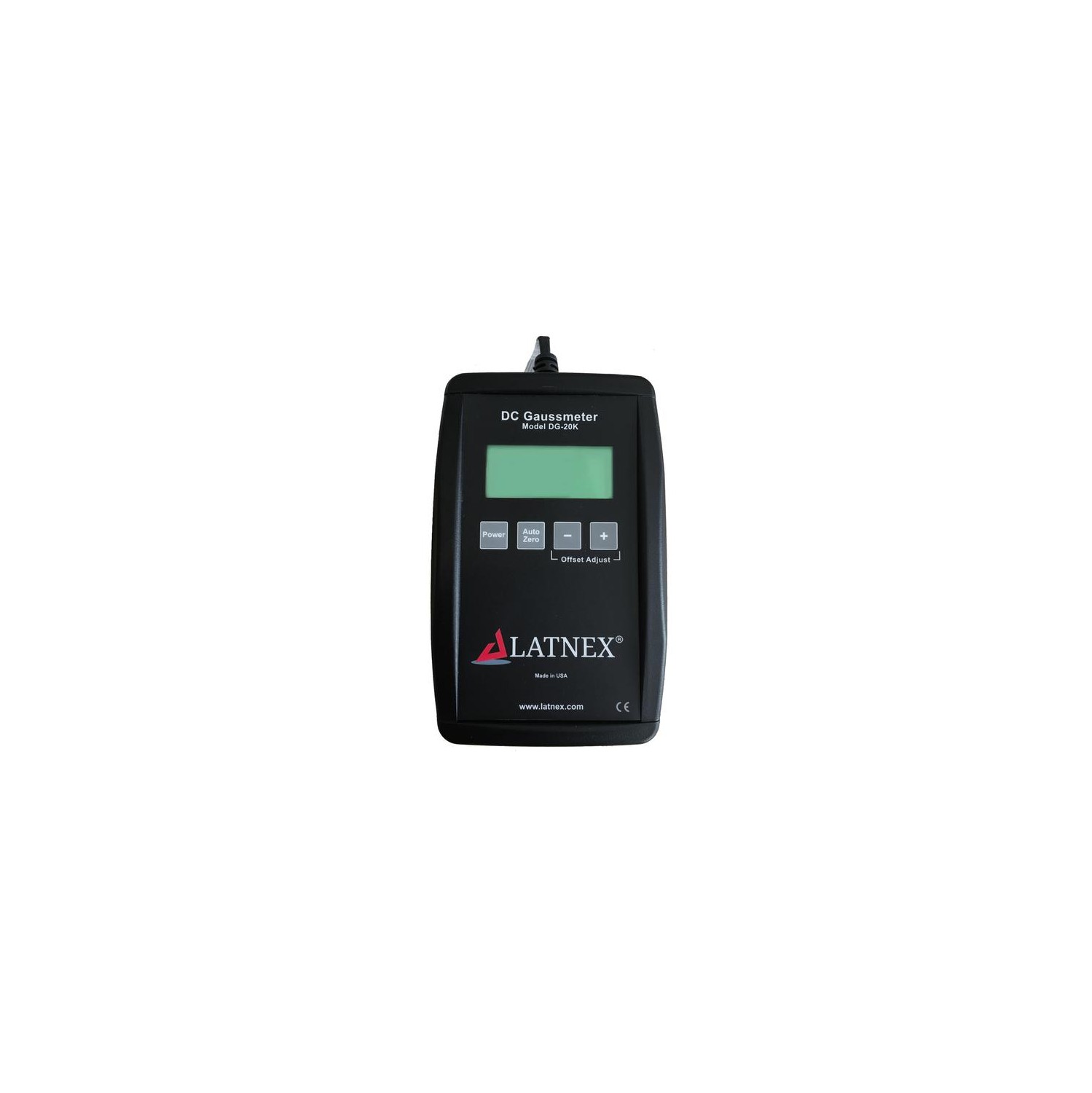

DC Gaussmeter Meter Model DG-20K

Model Number: EMR4046
Web Code: 12645351

product image

Overview

This small and powerful Gaussmeter measures the strength and polarity of magnetic fields up to 19,999.9 gauss! The sensor can easily fit in a .060 inch (1.5 mm) gap and is at the end of a 100 cm flexible cable. The sensor end can be bent if required to accommodate different situations. Place the sensor on a magnet face to measure the field. With a resolution of 0.1 gauss, it can measure any tiny variation from magnet to magnet or it can detect if a given magnet has lost even a little strength.
$529.99

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Overview

This small and powerful Gaussmeter measures the strength and polarity of magnetic fields up to 19,999.9 gauss! The sensor can easily fit in a .060 inch (1.5 mm) gap and is at the end of a 100 cm flexible cable. The sensor end can be bent if required to accommodate different situations. Place the sensor on a magnet face to measure the field. With a resolution of 0.1 gauss, it can measure any tiny variation from magnet to magnet or it can detect if a given magnet has lost even a little strength.

Bend the sensor in to a “L” to measure inside a DC solenoid tube. The 5 ½ digit display requires neither auto nor manual range change, making it easier to use than older style 3 ½ or 4 ½ digit meters. Immediately starting reading fields (updates 4 times per second) as soon as you turn on your meter! No extra set up is required.

Features:

High dynamic range 5 ½ digit display reads even the strongest magnets with .1 gauss resolution, including polarity.

Turns on instantly, updates four times a second, no setup or initial calibration required.

Auto-Zero (subtracts the present field from subsequent readings); also a fine offset control.

Offset range is the full +/- 19,999.99 gauss.

1% accuracy at room temperature, including probe.

Probe and battery included.

CE Compliant.

Applications:

Measures permanent magnets. (Maximum field of magnets is about 15,000, which occurs only with rare-earth magnets in a gap configuration.)

High resolution of 0.1 gauss over the entire range of +19,999.9 to -19,999.9 gauss allows detection of any variation in field from a magnet.

Measures inside DC Solenoids (probe is bent into “L” shape to measure this).

Sufficient resolution to map fields far from magnets.
