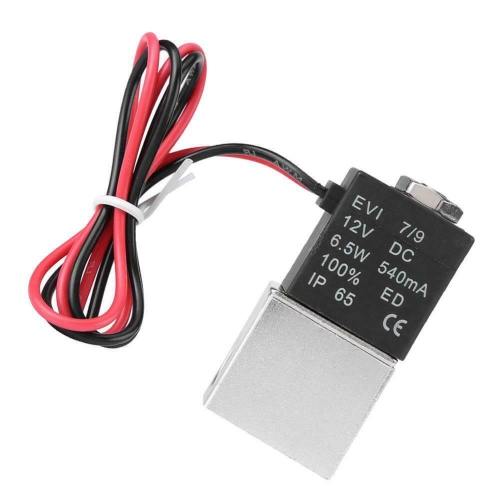

DC12V Normally Closed Fast Response Electric Air Oil Water Solenoid Valve

Description:

Features:

The solenoid valve has a 1/4 inch NPT inlet and a 1/4 inch NPT outlet. When the coil is disconnected, the valve remains closed and opens when the coil is energized. The bottom of 2CK series solenoid valve has two holes, which can be installed in any position. 2ACK series solenoid valves are equipped with ED 100% sealing coil, which is suitable for continuous operation and continuous power supply. The 2CK series valve is a zero-difference solenoid valve, which can be operated under 0 psi (vacuum).

Usage: Usually used in industry, construction and other pipeline facilities.

Specifications:

Working medium: air, water and oil

Movements: direct motion

Type: Normally Closed Type

Flow aperture: 2.5

CV value: 0.23

Nozzle caliber: G1/4"

Rated voltage: DC12V

Use fluid viscosity below 20 CST

Use pressure: air, water, oil: 0-1.0 MPa

Maximum Pressure Resistance: 1.2 MPa

Working temperature range: - 10~+80℃

Voltage range: +10%

Protection Level: IP65

Power consumption AC:7VA/60Hz

Insulation: Class F

Oil seal material: NBR or VITON

Minimum excitation time: 0.05/Second

Size: 65*32*22mm/2.56*1.26*0.87"

Notes:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow slight measuring deviation due to manual measurement.

Included:

1 X Solenoid Valve
