Connected productivity. Vibrant color.
Take your work to new heights with this 23.8-inch FHD monitor featuring brilliant color coverage, ComfortView Plus, USB-C and Ethernet connectivity. Display Type: LED-backlit LCD monitor / TFT active matrix Diagonal Size: 24" Viewable Size: 23.8" Built-in Devices: USB 3.2 Gen 2/USB-C hub USB Power Delivery: 90 Watt Panel Type: IPS Aspect Ratio: 16:9 Native Resolution: Full HD (1080p) 1920 x 1080 at 60 Hz Pixel Pitch: 0.2745 mm Pixel Per Inch: 92.5 Brightness: 250 cd/m² Contrast Ratio: 1000:1 / 1000:1 (dynamic) Color Support: 16.7 million colors Response Time: 8 ms (normal); 5 ms (fast) Horizontal Viewing Angle: 178 Vertical Viewing Angle: 178 Screen Coating: Anti-glare, 3H Hard Coating Backlight Technology: WLED Features: LED edgelight system, 100% sRGB color gamut, Mercury free, arsenic-free glass, 100% Rec 709 color gamut, 85% DCI-P3, 3-sided bezeless, Dell ComfortView Plus Dimensions (WxDxH): 21.2 in x 7.1 in x 14.3 in - with stand Interfaces:

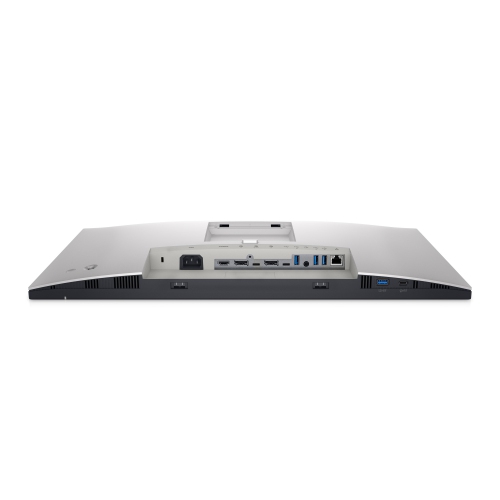

·HDMI
·
·DisplayPort 1.4
·
·DisplayPort output (MST)
·
·USB-C 3.2 Gen 2 upstream
·
·USB-C downstream (power up to 15W)
·
·3 x USB 3.2 Gen 2 downstream
·
·USB 3.2 Gen 2 downstream with Battery Charging 1.2
·
·Audio line-out
·
·USB-C 3.2 Gen 2 upstream/DisplayPort 1.4 (DisplayPort 1.4 mode / power up to 90W)
·
·Network (RJ-45)

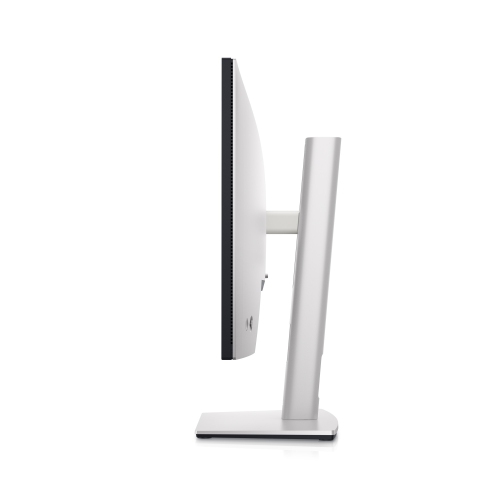

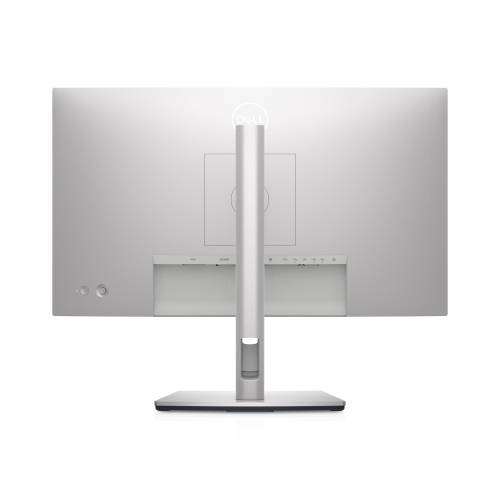

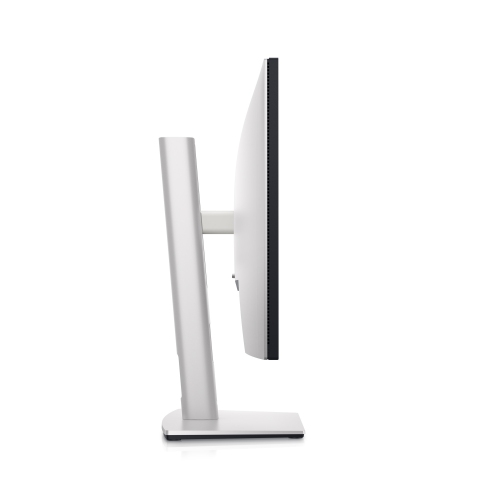

· Display Position Adjustments: Height, pivot (rotation), swivel, tilt Tilt Angle: -5/+21 Swivel Angle: 90 Rotation Angle: 180 Height Adjustment: 5.9 in VESA Mounting Interface: 100 x 100 mm Features: Security lock slot (cable lock sold separately), VESA interface support Cables Included:
·1 x DisplayPort cable - DisplayPort to DisplayPort - 6 ft
·
·1 x SuperSpeed USB cable - USB Type C to A - 3.3 ft
·
·1 x USB-C to USB-C cable - 3.3 ft
· Compliant Standards: RoHS, NFPA 99, BFR-free, DisplayPort 1.4, PVC-free Input Voltage: AC 120/230 V (50/60 Hz) Power Consumption (On mode): 11.8 W Power Consumption SDR (On mode): 11.8 kWh/1000h Power Consumption Stand by: 0.3 Watt Power Consumption (Off Mode): 0.3 Watt On / Off Switch: Yes Dimensions & Weight Details:
·With stand - width: 21.2 in - depth: 7.1 in - height: 14.3 in
·
·Without stand - width: 21.2 in - depth: 1.9 in - height: 12.2 in - weight: 8.7 lbs

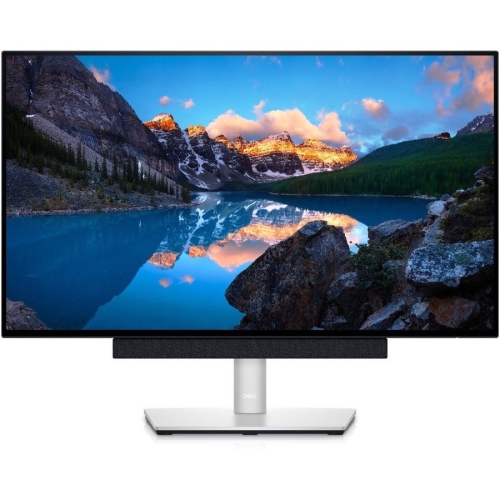

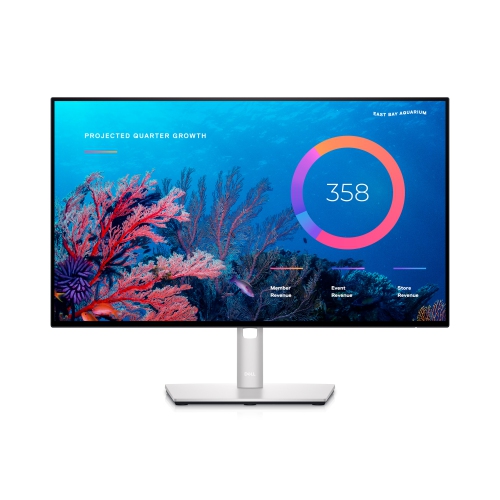

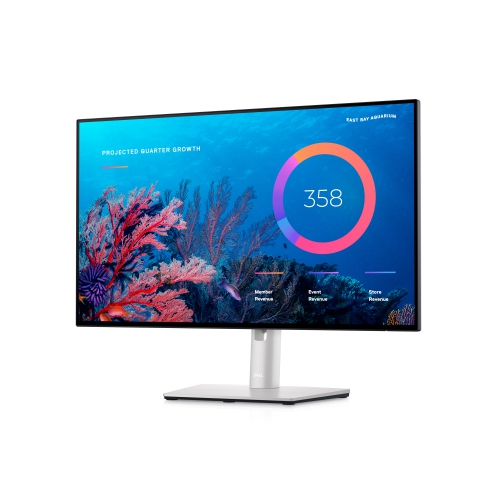

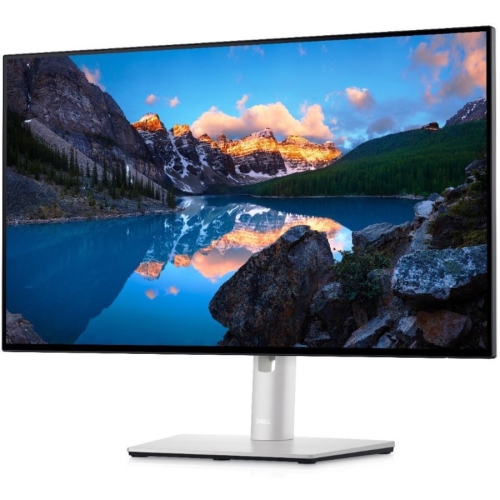

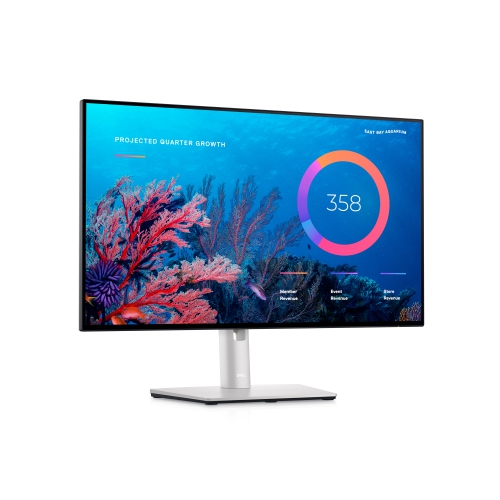

· Shipping Weight: 18.3 lbs TCO Certified: TCO Certified EPEAT Compliant: EPEAT Gold ENERGY STAR Certified: Yes Service & Support: Limited warranty - replacement - response time: next business day Bundled Services: 3-Years Advanced Exchange Service and Premium Panel Guarantee Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 80% (non-condensing) Product Description: Dell UltraSharp 24 USB-C Hub Monitor – U2422HE Device Type: White LED Edgelight System Diagonal Size: 23.8 inches Features: USB 3.2 Hub Panel Type: In-Plane switching Technology Aspect Ratio: 16:9 Native Resolution: 1920X1080 @ 60Hz Pixel Pitch: 0.2745 mm x 0.2745 mm Brightness: 250 cd/m2 (typical) Contrast Ratio: 1000 to 1 (typical) Response Time: 8 ms for NORMAL mode; 5 ms for FAST mode Color Support: 16.7 million colors Input Connectors: 1 X DP 1.4
1 X HDMI 1.4
1 X DisplayPort(out) with MST,
1 X USB Type-C upstream port ( Altenrate mode with Display POrt 1.4, Powe Delivery upto 90W)
1 X USB Type-C upstream Port( data only 10GPBs USB 3.2 Gen 2)
1 X USB Type-C downstream port with charging capablity at 15W (Maximum)
1 X super speed USB 10Gbps with BC1.2 charging capability at 2 A (maximum)
3 X super speed USB 10 Gbps ( USB 3.2 Gen 2) downstream port
1 X audio line-out port
1 X RJ45 port Display Position Adjustments: Height adjustable (150 mm),
Tilt (-5° to 21°)
Swivel (-45° to 45°)
Pivot ((-90° to 90°) Screen Coating: Anti-glare treatment of the front polarizer (3H) hard coating Dimensions (WxDxH) - with stand: 21.17 inches x 7.07 inches x 14.33 inches ~ 19.53 inches Weight: 8.72 lb Compliant Standards: ENERGY STAR certified Monitor
EPEAT( Gold) registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.
TCO Certified Display
RoHS Compliant
BFR/PVC Free monitor (excluding external cables)
Meets NFPA 99 leakage current requirements
Arsenic-Free glass and Mercury-Free for the panel only
