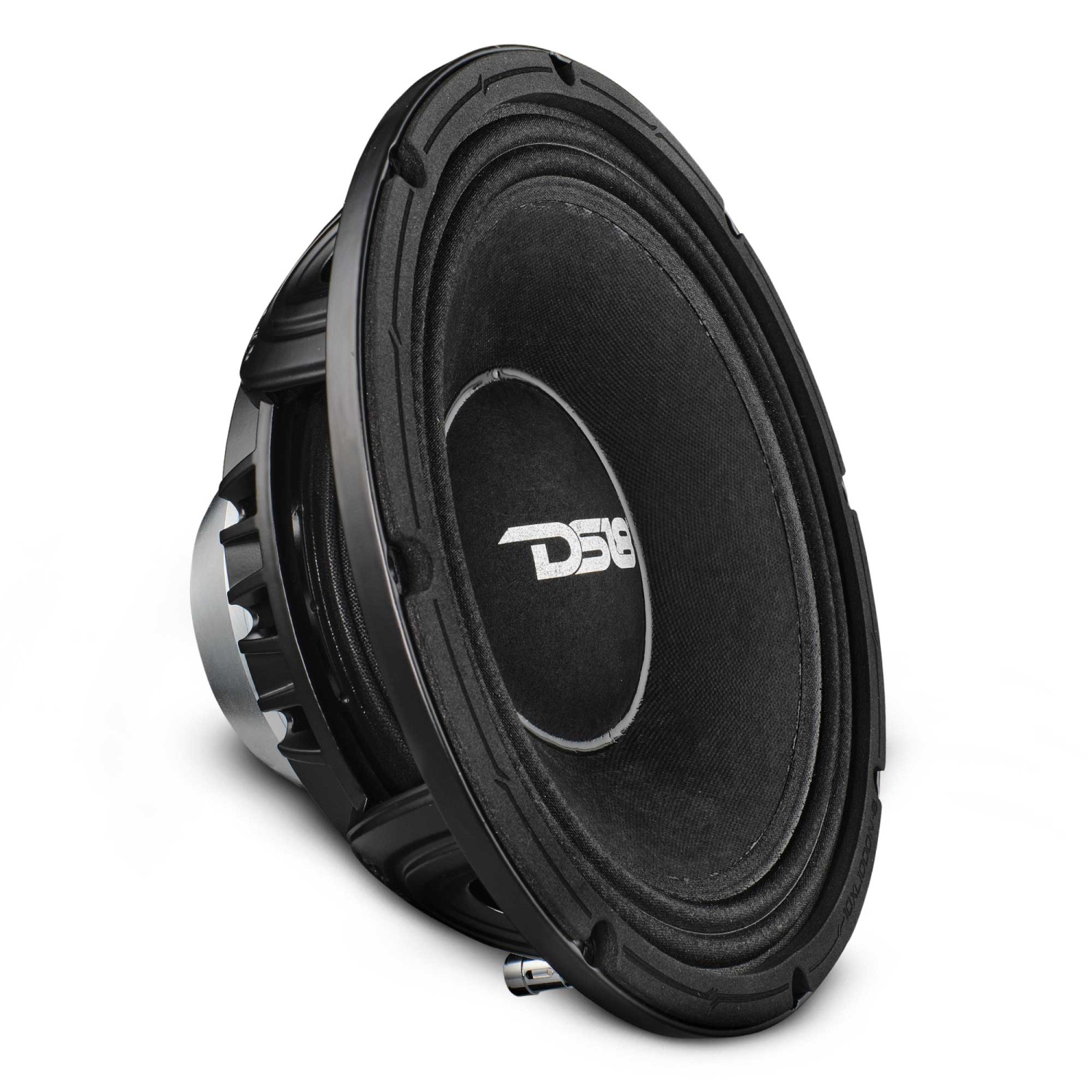

About: DS18 10XL1000N-8 XL Series 10" Neodymium Magnet Mid-Range Loudspeaker 500W RMS - 8 Ohm (Each)
10” Mid-Range Loudspeaker with Neodymium Magnet | 1000W Max | 8 Ohm
Take your mid-range clarity to the next level with DS18’s 10XL1000N-8—designed for pro-level audio setups where sound quality is non-negotiable.
Raw Power, Refined Sound
This 10" midrange loudspeaker features a powerful 3” voice coil and high-efficiency neodymium magnet, delivering 500W RMS and 1000W MAX power. With a 101dB sensitivity rating and frequency response of 80Hz–5KHz, you get LOUD mids that cut through without distortion.
Designed to Perform
Built with demodulating rings and improved heat dissipation, the 10XL1000N-8 is crafted for high-performance environments. The non-pressed paper cone, curvilinear shape, and CCAW winding work in harmony to provide rich clarity and dynamic response—perfect for aggressive SPL systems or concert-level builds.
Ready to Install
This speaker’s satin black aluminum basket, sealed back design, and direct-to-cone leads ensure rugged durability and efficient installation. Optimized for a 4.57” mounting depth, it's a drop-in solution for serious systems.
Product Highlights:
10" Mid-Range
MAX Power: 1000 Watts
RMS Power: 500 Watts
Impedance: 8-Ohm
Neodymium Magnet
101dB
Specifications:
SKU: 10XL1000N-8
Nominal Diameter: 10" / 254mm
Nominal Impedance: 8 ohms
RMS Power Handling: 500 watts
MAX Power Handling: 1000 watts
Interleaved Sandwich Voice coil (ISV): No
Demodulating Rings: Yes
Improved Heat Dissipation: Yes
Cone Shape:Curvilinear
Speaker Terminals: Push 12ga
Motor:
Voice Coil Diameter: 3" / 76.2mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-pressed Paper
Dust Cap Material: Paper
Bullet Material: N/A
Bullet Color/Finish: N/A
Surround Material: Cloth
Spider Diameter: 5" / 127mm
Leads Type: Direct to Cone
Basket Material: Aluminum
Basket Color/Finish: Satin Black
Magnet Material: Neodymium
Magnet Weight: 11 Oz
Displacement Volume: 0.04L / 0.0014ft3
Thiele & Small Parameters:
Equivalent Volume Vas: 35.45L / 1.25ft3
Excursion (one way) Xmax: 6mm
Free Air Resonance Fs: 70Hz
Mechanical Factor Qms: 5.87
Electrical Factor Qes: 0.23
Total Factor Qts: 0.23
Mechanical Mass Mms: 34g
Mechanical Compliance Cms: 0.21mm/N
BL Factor BL: 18
Voice Coil Inductance Le: 0.25mH
Cone Area Sd: 346.36cm2
DC Resistance Re: 5.6 ohm
Mechanical Mass w/o air Mmd: 30g
Measurements:
Overall Diameter: 10.3" / 261.5mm
Overall Depth: 5.1" / 129mm
Front Mount Baffle Cutout: 9.2" / 233mm
Mounting Depth: 4.57" / 116mm
Motor Diameter: 5.16" / 131mm
