About: DS18 FRP-2.5K FRP Compact Full-Range Class D 1-Channel Amplifier 2500W RMS
Its variable crossover filters allow you to fine-tune your sound for optimal performance. Depending on your Band-Pass Adjustments, this Full-Range Amplifier can be used for Bass, Mids, or Highs. Micro digital design maximizes the FRP-2.5K’s power output and efficiency.

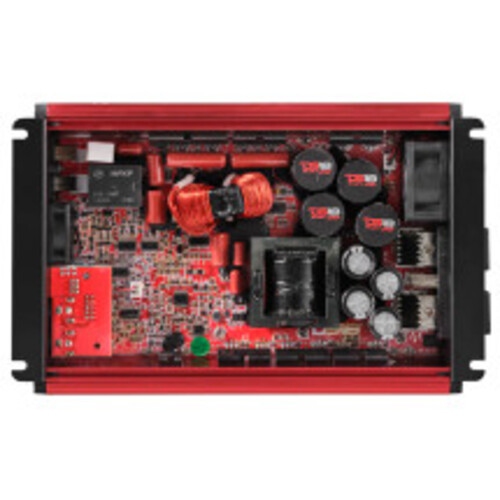

DS18’s FRP-2.5K was built for durability and performance. The protective coating on the PCB prevents moisture corrosion and bonded components provide extra vibration protection. This means you can enjoy high-quality sound even in harsh conditions.
Its bass boost feature enhances your low-end frequencies for a richer, more powerful sound. The bass knob also comes with power and clip indicators: with short circuit thermal, DC offset, and high/low voltage protection - your amplifier and vehicle are safeguarded against the most common problems in car audio.
DS18’s FRP-2.5K outputs 700W RMS @ 4-Ohm; 1300W RMS @ 2-Ohm; 2500W RMS @ 1-Ohm; and 2800W RMS @ 1-Ohm (BURST) – perfect power settings to supercharge any vehicle. Thanks to its compact size, Tiffany RCA Terminals, and coming in three different colors (blue, titanium, or red) the FRP-2.5K fits in any system. Upgrade with DS18’s FRP-2.5K and bring power to any system.
Product Highlights:
1 Channel Full Range
Class D
1 ~ 4 Ohm Stable
1 X 2500 Watts RMS @ 1 Ohm
Clip / Protection Indicator
Remote Level Control Knob
Features:
Amplifier Class: Digital
Amplifier Type: Full-Range Monoblock
Number of Channels: 1CH
Minimum Impedance: 1Ω
Led Indicator: Power / Protect / Clipping
Power Input Terminal Size: 0GA
Fuse Size (Recommended): 200A
Remote Level Control: Yes (Volmeter Optional)
Cooling Fan: Yes (Smart Cooling x 2)
Voltmeter: No
Thermal Protection: Yes
Over-Load Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes

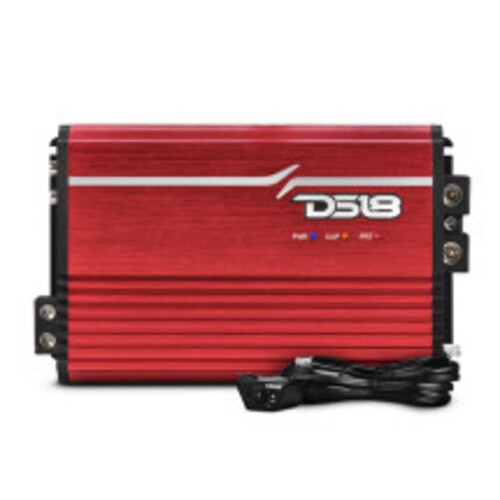

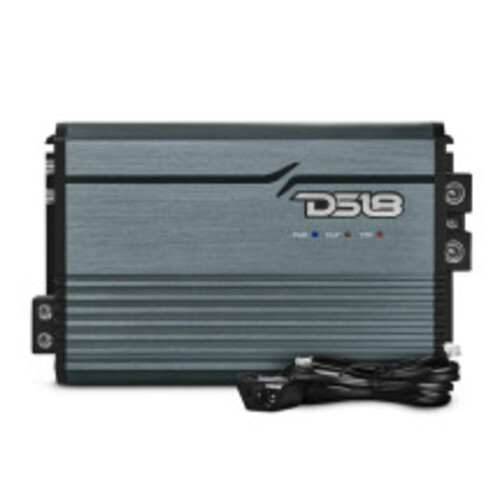

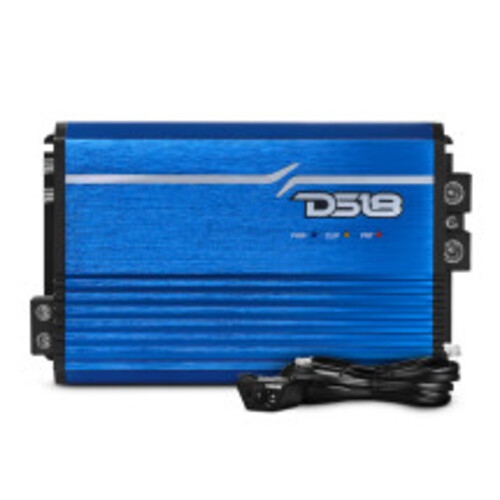

Body Color / Finish: Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications: Yes
Stable/Reliable Four Layers Traces PCB Design: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes
Tiffany RCA Terminal: Yes
LED Clip Indicator: Yes
Metal Knobs with Click Steps: Yes

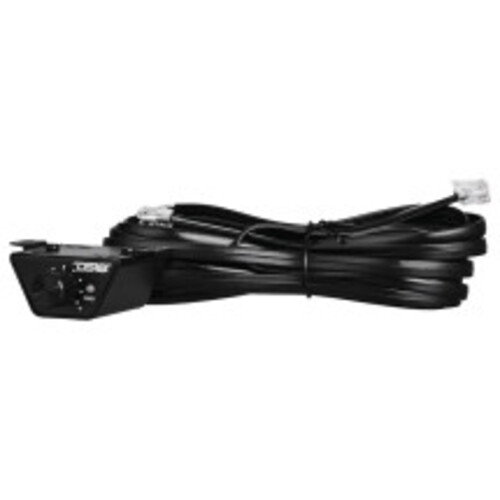

Remote Level Control with Clip Indicator: (Included)
Remote Level Control with Clip Indicator and Voltmeter: (Optional)
Specifications:
RMS Power @ 4 ohms: 700W
RMS Power @ 2 ohms: 1300W
RMS Power @ 1 ohm: 2500W
MAX Power @ 1 ohm (Burst): 2800W
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 83dB
Efficiency @ 4ohm: 85.6%
Damping Factor: 90
Input Impedance: 10KΩ
Total Harmonic Distortion (THD): 0.5%
Low Level Input Range: 400mv-3.6V
High Level Input: No
Selectable X-Over: Fixed Band-Pass
X-Over Filter Range: HP: 10Hz-2KHz / LP: 40Hz-20KHz
Bass Boost Range: 0-12dB
Bass Boost Frequency: 50Hz
Phase Selector: No
Measurements:
Overall Length: 8.85" (225 mm)
Overall Width: 5.5" (140 mm)
Overall Height: 2.36" (60 mm)
Heatsink Length: 7.6" (193 mm)
Gross Single Unit Weight: 2.1kg
