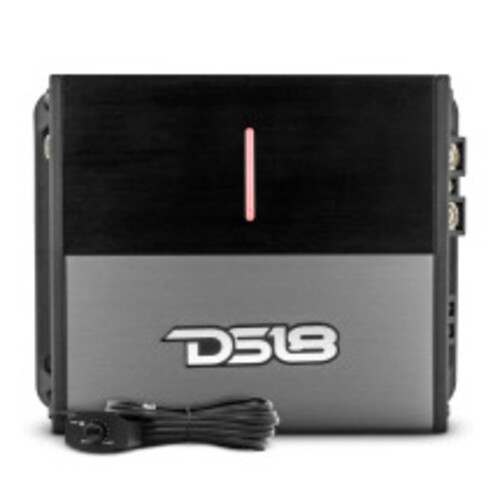

About: DS18 ION600.1D ION Compact Full Range 600W RMS Monoblock Amplifier
Experience an unparalleled sound journey with DS18’s ION600.1D, a full-range high efficiency micro digital 1-channel amplifier, designed for powerful and crisp audio performance that will elevate your listening experience to new heights.
Built for seamless integration into your audio system, DS18’s ION600.1D allows for easy connectivity and optimal signal transfer using Hi-Level Inputs and Tiffany RCA’s. With a frequency response of 10Hz – 20KHz this full-range amplifier comes with variable full-range crossover filters for precise control over your sound. This gives the ION600.1D the ability to be configured for bass or mids/highs depending on how you set the full range crossover. Fine tune these levels with the convenient remote level control knob!

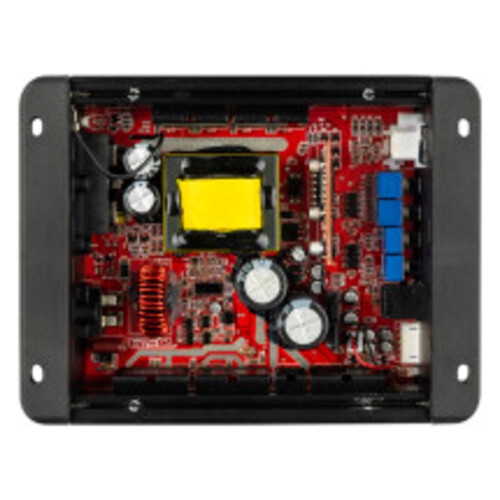

The ION600.1D is engineered to withstand the test of time. Protective coating on the PCB prevents moisture corrosion, while bonded components provide extra vibration protection. Safety was a top priority in the construction of DS18’s ION600.1D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifier’s status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.
The ION600.1D has power ratings of 600W at 1 ohm, 400W at 2 ohms, and 200W at 4 ohms; perfect power ratings to turbocharge every piece of equipment in your system! Immerse yourself in a world of superior sound quality and reliability with DS18’s ION600.1D!
Product Highlights:
1 Channel Full Range
Class D
1 - 4 Ohm Stable
1 X 600 Watts @ 1 Ohm
Power / Clip / Protection Indicator
Compact
Specifications:
Total Watts (Peak): 1800W
RMS Power @ 4 ohm: 200W
RMS Power @ 2 ohm: 400W
RMS Power @ 1 ohm: 600W
RMS Power @ 4 ohm Bridge: N/A
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: >95dB
Efficiency @ 4 ohm: 88%
Damping Factor: 210
Input Impedance: 27K ohms
Channel Separation: N/A
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.2-6V
High Level Input: Yes
Selectable X-Over: Band-Pass
X-Over Filter Range: HP: 15Hz-1KHz / LP: 40Hz-20KHz
Bass Boost Range: 0~12dB
Bass Boost Frequency: 45Hz
Features:
Amplifier Class: Digital
Amplifier Type: Full-Range Monoblock
Number of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Power / Protect / Clipping
Power Input Terminal Size: 4 AWG
Fuse Size: 80A (external)
Remote Level Control: Yes
Cooling Fan: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Aluminum Black / Silver
Hi-Level Speaker connector: Yes
Tiffany RCA Terminal: Yes
LED Clip Indicator: Yes
High Efficiency Micro Digital Design: Yes
Measurement:
Overall Length: 6.14" (156 mm)
Overall Wide: 4.72" (120 mm)
Overall Height: 2" (52 mm)
Heatsink Length: 4.84" (123 mm)
Gross Single Unit Weight: 0.7Kg
