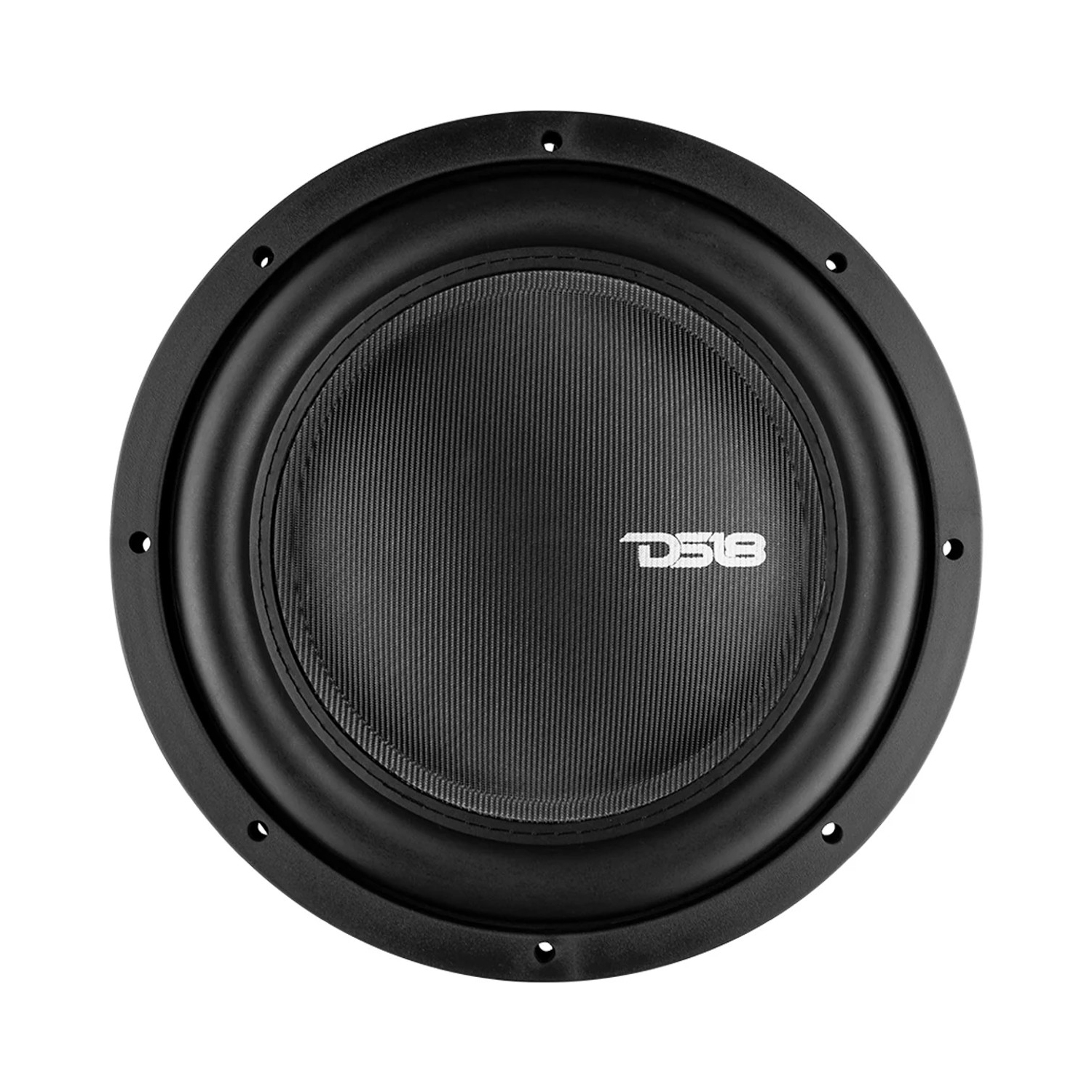

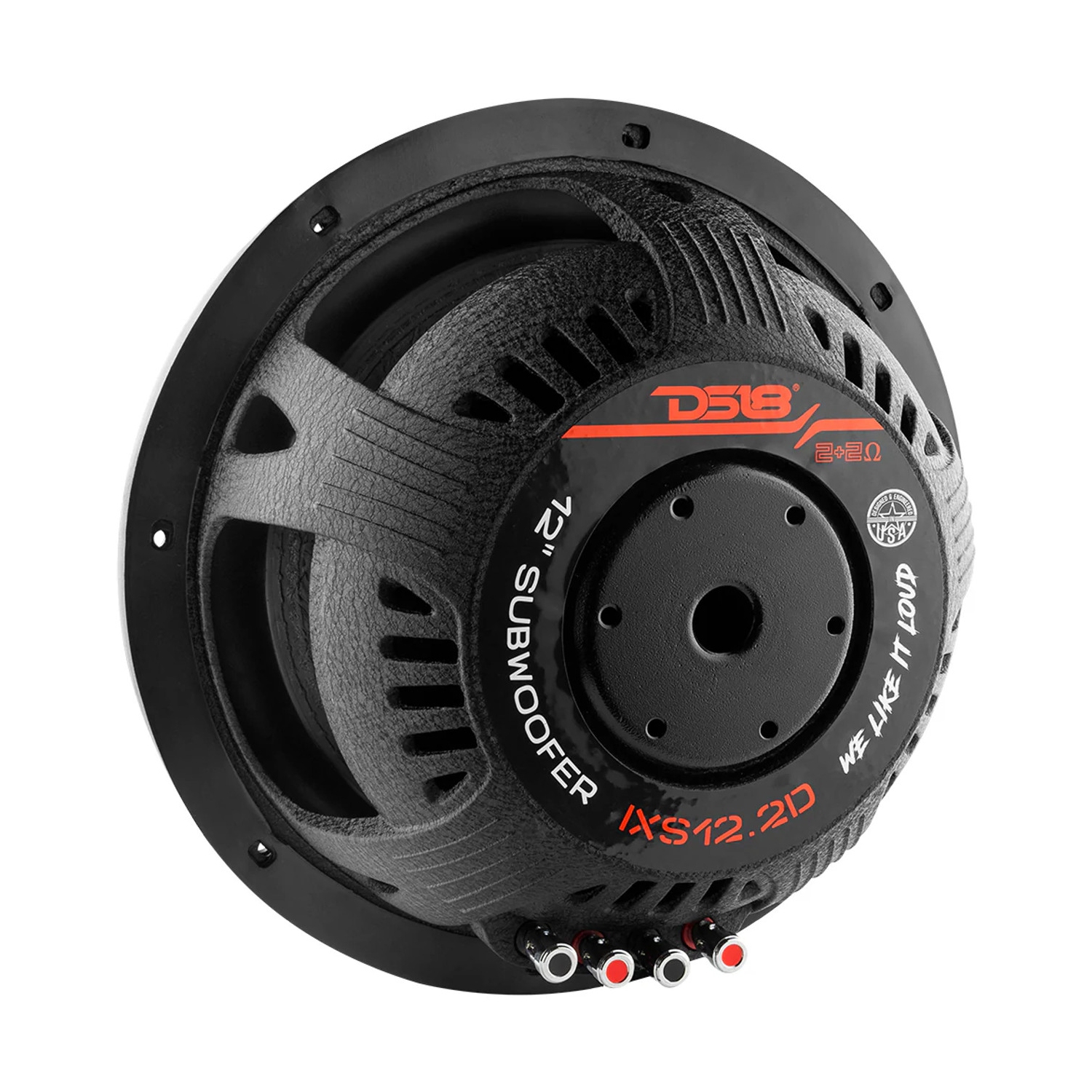

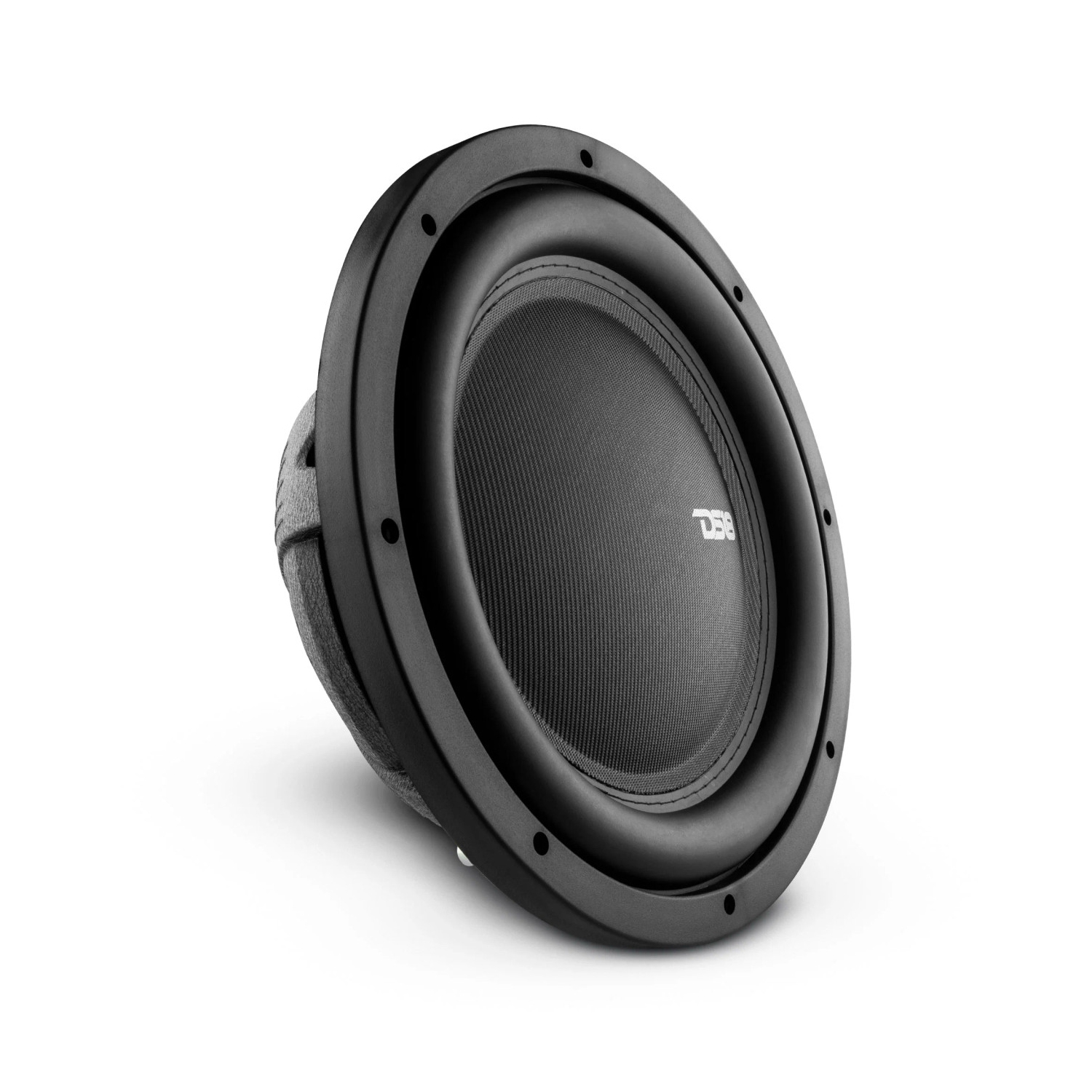

About: DS18 IXS12.2D 12" 800W RMS Shallow Mount Car Subwoofer - Dual 2 Ohm
Engineered with uncompromising precision and cutting-edge technology, the IXS12.2D is specifically designed to revolutionize your car audio experience.
Drawing upon the immense success of our renowned SW slim subwoofer line, the IXS series builds upon that legacy by offering even more power and depth. Available in both 10 and 12-inch variants, these subwoofers come with multiple voice coil options, allowing you to extract the maximum potential from your amplifier.
With impressive power handling capabilities rated at 800W RMS and 1600W MAX, the IXS12.2D delivers thunderous bass and dynamic performance. The IXS12.2D covers an extensive frequency range (20 – 600Hz) , capturing both the subtle nuances and the powerful impact of low-frequency sounds. It effortlessly reproduces low-frequency sounds with remarkable clarity and accuracy, ensuring that every beat is felt and heard with precision. The high sensitivity rating of 85dB the IXS12.2D means that it efficiently converts power into sound, requiring less power to produce impressive volume levels.
The dual voice coil configuration on the IXS12.2D offer increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output. Even with its shallow mount size, this subwoofer fits snug in compact spaces, requiring less box space than other subs of its size. The versatility it offers is unmatched, providing you with endless placement options. The 2+2-ohm impedance of the IXS12.2D allows for seamless integration with a wide range of car audio systems. Ensuring efficient power transfer from your amplifier, maximizing the IXS12.2D’s performance and bass response.
Get ready to feel the bass like never before with the DS18 IXS12.2D—where power meets precision, and excellence becomes the new standard.
Product Highlights:
12" Shallow Subwoofer
MAX Power: 1600 Watts
RMS Power: 800 Watts
Impedance: 2-Ohm 2.5" DVC
Ferrite Magnet
85dB
Specifications:
SKU: IXS12.2D
Nominal Diameter: 12" / 304.8mm
Nominal Impedance: 2+2 ohms
RMS Power Handling: 800W
Maximum Power Handling: 1600W
Sensitivity (1w/1m): 85 dB
Frequency Response: 20 - 600 Hz
Recommended Lo Pass Crossover: 80 Hz
Motor:
Voice Coil Diameter: 2.5" / 63.5mm
Voice Coil Former Material: Aluminum
Winding Material: Copper
Cone Material: Paper
Dust Cap Material: Fiberglass
Surround Material: Stitched rubber
Basket Material: Aluminum
Basket Color/Finish: Corrugated Black
Magnet Material: Ferrite
Magnet Weight: 62 Oz
Displacement Volume: 0.93L / 0.033ft3
Thiele & Small Parameters:
Equivalent Volume Vas: 38L / 1.34ft3
Free Air Resonance Fs: 33 Hz
Mechanical Factor Qms: 4.83
Electrical Factor Qes: 0.82
Total Factor Qts: 0.7
Moving Mass Mms: 261.6 g
Compliance Cms: 106.15 mm/N
Bl Factor BI: 14
Voice Coil Inductance Le: 14.72 mH
Diaphragm Area Sd: 494.81 cm2
DC Resistance Re: 1.6+1.6 ohms
Efficiency Bandwidth Product EBP: 36.5
Recommended Enclosures:
Sealed Internal Volume (minimum): 28L / 1ft3
Sealed Box Output Response F3: 40Hz
Measurements:
Overall Diameter: 12.6" / 320 mm
Overall Depth: 5" / 129 mm
Front Mount Baffle Cutout: 10.79" / 274 mm
Mounting Depth: 4.33" / 110 mm
Motor Diameter: 6.3" / 160 mm
Gross Single Unit Weight (lb): 16.5
Single Unit Box Dimensions W x L x H (Inches): 13.25 x 13.5 x 6.5
Quantity of Units in Master Carton: 2
Gross Master Carton Weight (lb): 34
Master Carton Dimensions W x L x H (Inches): 14 x 14 x 14
