Overview

Number of Channels: 5,IP67 Waterproof Rating,Total Watts (Peak): 2800W

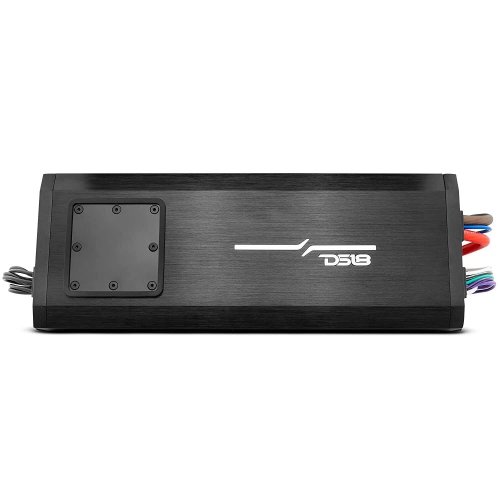

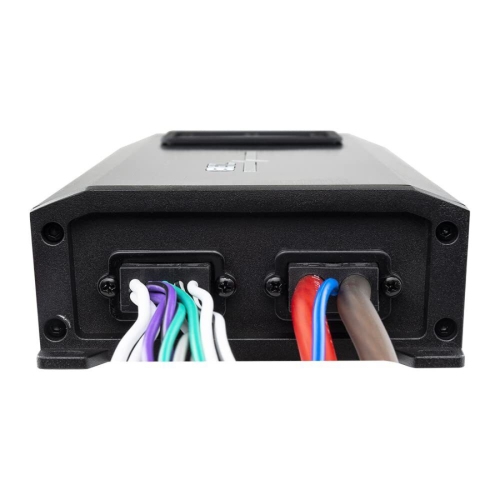

DS18 NXL-X1200.5D 5-Channel 2800W Max Class-D Full-Range Marine Audio Amplifier

Model: NXL-X1200.5D
Web Code: 17184226
Sold and shipped by | 4.4 seller rating (157 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

BRAND NEWDS18 NXL-X1200.5DNXL SERIES | 5 Channel 2800 Watts Max Class-D Full-Range Stereo Marine AmplifierFEATURESAmplifier Class: DigitalAmplifier Type: Stereo Full Range + Subwoofer Number of Channels: 5Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge) / 2 Ohm (SUB)Led Indicators: Power / Protection / ClipPower Input Size: 4GA Tinned OFCFuse Size: 2 x 50A (100A)Thermal Protection: Yes (75°C)Over-Load Protection: YesShort Circuit Output Protection: YesVoltage Input Protection: Yes (7-16V)Body Color / Finish: Black Brushed AluminumPOWERTotal Watts (Peak): 2800WRMS Power @ 4 ohm: 4 x 150W + 350W (SUB)RMS Power @ 2 ohm: 4 x 200W + 600W (SUB)RMS Power @ 1 ohm : -RMS Power @ 4 ohm Bridge: 2 x 400WAUDIOFrequency Response: 10Hz-20KHzSignal to Noise Ratio 1W@4Ω: > 100dBEfficiency @ 4ohm: 0.85Input Impedance: 20KΩChannel Separation: 60dBTotal Harmonic Distortion (THD): < 0.05%Low Level Input Range: 200mV-5VSelectable X-Over: Yes (HPF/Full/LPF) / LPF Fixed (SUB)X-Over Filter Range: 40Hz-2KHz / 50Hz-250Hz (SUB)Bass Boost Range: 0-18dB (SUB)Bass Boost Frequency: 42Hz (SUB)Infrasonic Filter: 10Hz-55Hz (SUB)Phase Selector: NoMEASUREMENTOverall Length: 12.67" / 322mmOverall Wide: 4.4" / 112mmOverall Height: 1.77" / 45mmHeatsink Length: 11.87" / 301.7mmGross Single Unit Weight: 2.4kg
