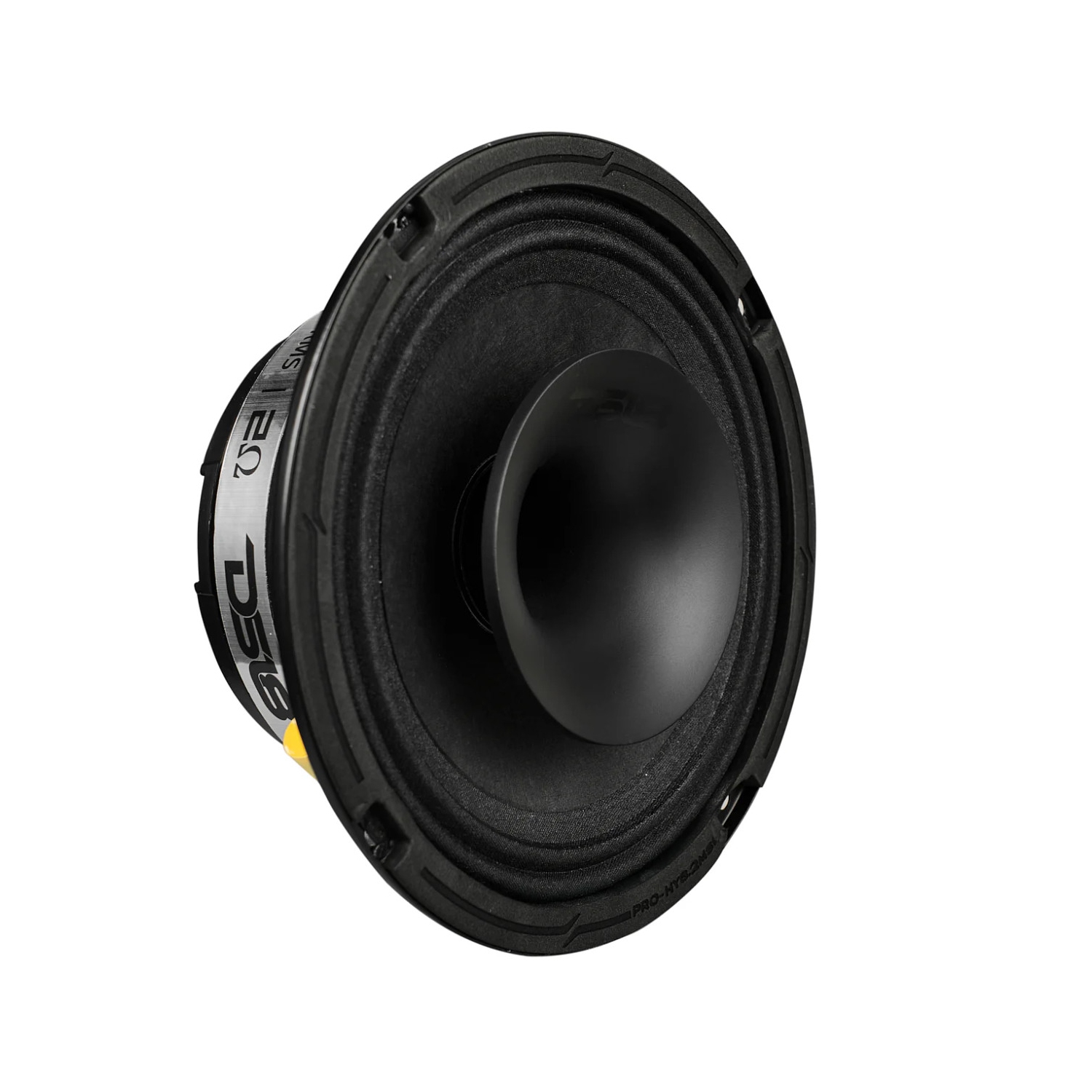

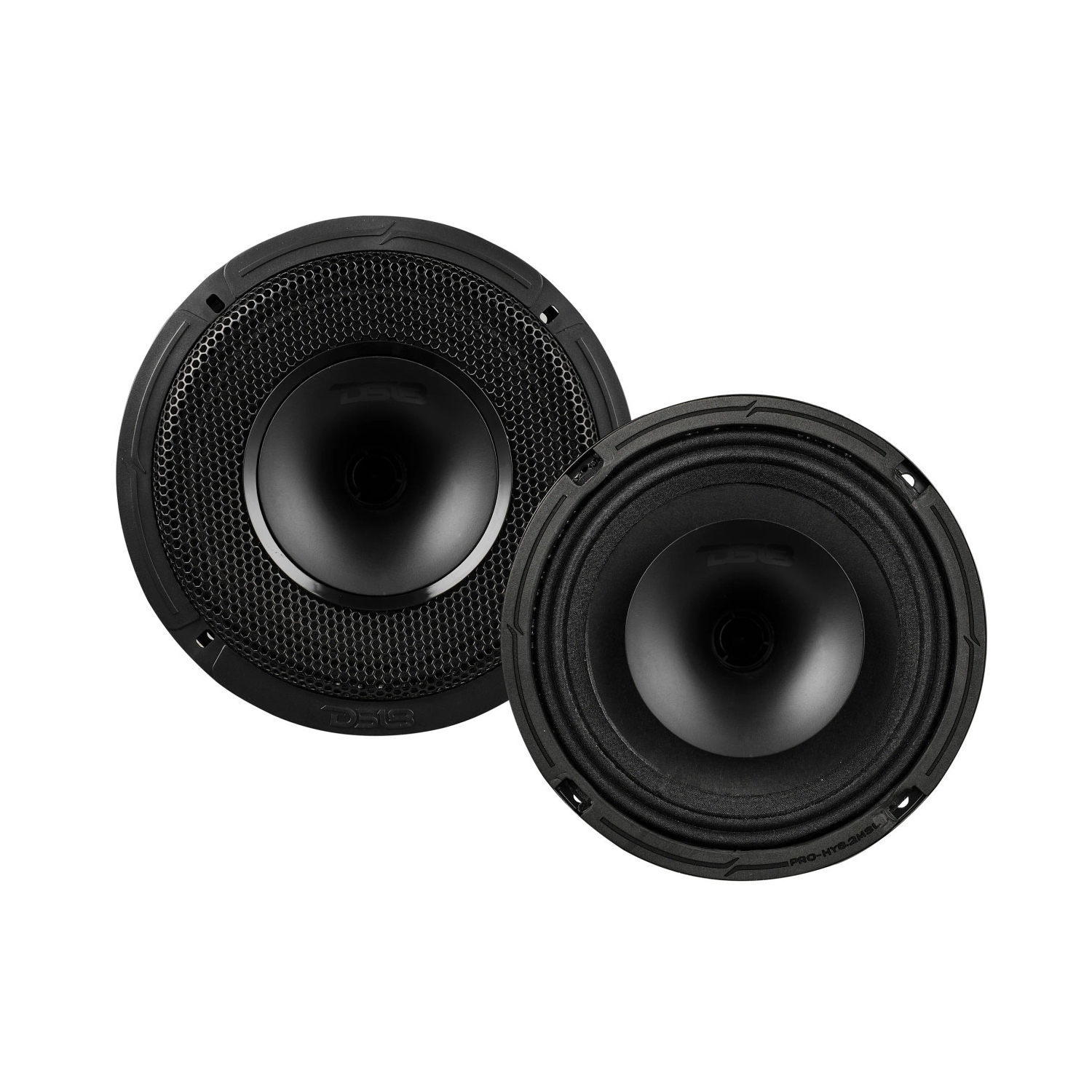

About: DS18 PRO-HY6.2MSL 6.5" Slim Hybrid Mid Range Loudspeaker 150W RMS with 1" Compression Driver Horn - 2 Ohm
6.5" Hybrid Slim Loudspeaker with 1" Compression Driver Horn
DS18’s PRO-HY6.2MSL is made for tight builds that need BIG sound. With a hybrid design that pushes full-range clarity in a slim profile, this 2-ohm loudspeaker is the perfect solution for motorcycles, UTVs, Slingshots, Jeeps, and other powersports vehicles.
Hybrid Power
This compact beast combines a 6.5” midrange woofer with a built-in 1” compression driver horn—giving you the full range of frequencies in one clean unit. It hits 150W RMS / 300W MAX, with 97dB sensitivity and a wide 120Hz–20KHz response, delivering loud, accurate audio where it matters most.
Built to Ride
The PRO-HY6.2MSL features a paper cone, cloth surround, and a black steel basket backed by a 19.5oz ferrite magnet. The compression driver brings the heat with a titanium diaphragm, Kapton voice coil, and neodymium magnet.
Fits Tight
At just 2.82” mounting depth and a slim 6.55” total diameter, the PRO-HY6.2MSL mounts just about anywhere your setup needs some punch. Offering a clean fit and getting louder than anything else in its class.
Product Highlights:
6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
RMS Power: 150 Watts(300 Watts Peak)
Impedance: 2 Ohm ~ 97dB
Ferrite & Neodymium Magnets
With Grill
Easily Repaired With The PRO-HY/VC
Specifications:
SKU: PRO-HY6.2MSL
Nominal Diameter: 6.5" / 165.1mm
Nominal Impedance: 2 Ohms
RMS Power Handling: 150W
MAX Power Handling: 300W
Sensitivity (1w/1m): 97dB
Frequency Response: 120Hz-20Khz
Recommended HI Pass Crossover: 140Hz
Number of Ways: 2 ways
Pair or Single: Single
Grill Included: Yes
Woofer Specifications:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: KSV
Winding Material: CCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Steel
Basket Color/Finish: Black
Magnet Material: Ferrite
Magnet Weight: 19.5 Oz
Thiele & Small Parameters
Equivalent Volume Vas: 7L / 0.248ft3
Excursion (one way) Xmax: 1.5mm
Free Air Resonance Fs: 163Hz
Mechanical Factor Qms: 7.488
Electrical Factor Qes: 1.102
Total Factor Qts: 0.96
Mechanical Mass Mms: 2.87g
Mechanical Compliance Cms: 0.333mm/N
BL Factor BL: 2.287
Voice Coil Inductance Le: 0.07041mH
Cone Area Sd: 136.8 Cm2
DC Resistance Re: 1.9 ohm
Mechanical Mass w/o air Mmd: 20.7g
Driver Specifications:
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Titanium
Magnet Material: Neodymium
Horn Diameter: 3.15" / 80mm
Measurements:
Overall Diameter (Without Grill): 6.55" / 167mm
Overall Diameter (With Grill): 6.93" / 176mm
Overall Depth (Without Grill): 3.26" / 83mm
Overall Depth (With Grill): 3.45" / 88mm
Front Mount Baffle Cutout: 5.65" / 144mm
Mounting Depth: 2.82" / 72mm
Motor Diameter: 4.31" / 110mm
