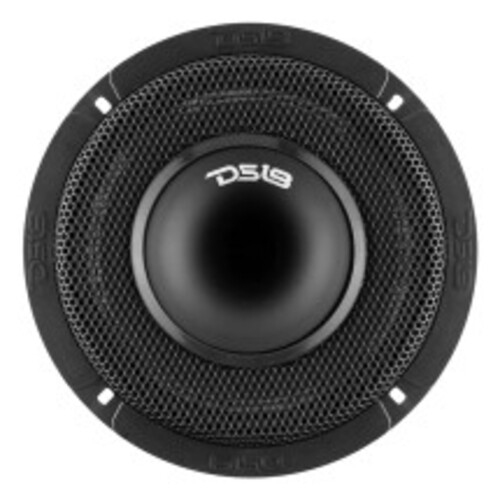

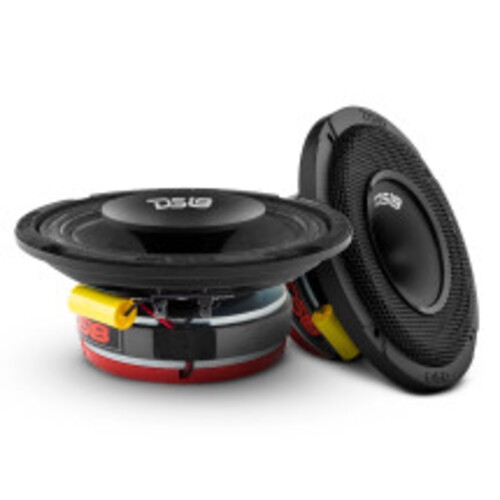

About: DS18 PRO-HY6MSL 6.5" Shallow Hybrid Mid-Range Loudspeaker w/ Built-in Driver 150W RMS - 8 Ohm (Each)
Your pursuit of perfect sound ends with the introduction of the PRO-HY6MSL! We've taken our Pro-Audio midrange and merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design. With 300W MAX power handling and 150W RMS power handling, the PRO-HY6MSL boast astonishing loudness with remarkable clarity at even the highest volumes. Immerse yourself in a world of rich musical response, thanks to the frequency response range of 120Hz to 20KHz. The PRO-HY6MSL’s excel in reproducing crystal-clear audio with astonishing depth and precision. And with a nominal impedance of 8 ohms and sensitivity of 93dB, you'll experience every nuance and detail of your favorite tracks like never before.
With its sleek dimensions of 6.92 inches in width and a mounting depth of 2.77 inches, this speaker is incredibly versatile, fitting effortlessly into a wide range of applications. One of the standout features of this speaker is its titanium diaphragmed driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium this allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. To further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. Prepare to be blown away by the power, clarity, and precision of the PRO-HY6MSL.
Product Highlights:
6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
RMS Power: 150 Watts (300 Watts Peak)
Impedance: 8 Ohm
Ferrite & Neodymium Magnets
With Grill
93dB
Specifications:
Nominal Diameter: 6.5" (165.1 mm)
Nominal Impedance: 8 Ohm
RMS Power Handling: 150W
MAX Power Handling: 300W
Sensitivity (1w/1m): 93dB
Frequency Response: 120Hz-20Khz
Recommended HI Pass Crossover: 140Hz
Number of ways: 2 ways
Pair or Single: Single
Grill Included: Yes
Woofer Specifications:
Voice Coil Diameter: 1.5" (38.6 mm)
Voice Coil Former Material: KSV
Winding Material: CCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Steel
Basket Color/Finish: Glossy Red
Magnet Material: Ferrite
Magnet Weight: 17.5 Oz
Thiele & Small Parameters
Equivalent Volume (Vas): 3.45L / 0.121ft3
Excursion (one way) Xmax: 2mm
Free Air Resonance (Fs): 161Hz
Mechanical Factor (Qms): 7.653
Electrical Factor (Qes): 1.496
Total Factor (Qts): 1.252
Mechanical Mass (Mms): 6.875g
Mechanical Compliance (Cms): 129.952 mm/N
BL Factor (BL): 5.621
Voice Coil Inductance (Le): 10.78mH
Cone Area (Sd): 136.848 Cm2
DC Resistance (Re): 6.5 ohm
Mechanical Mass w/o air (Mmd): 5.955g

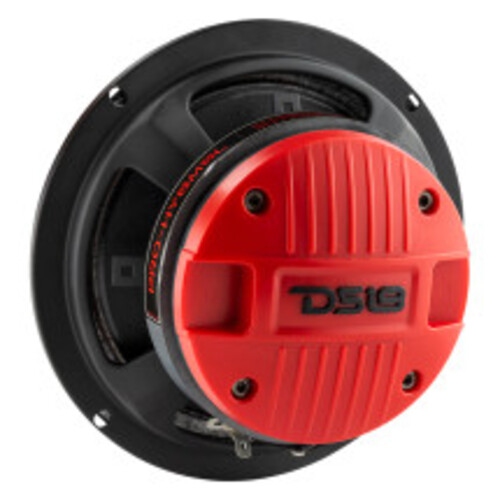

Driver Specifications:
Voice Coil Diameter: 1" (25.4 mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Titanium
Magnet Material: Neodymium
Horn Diameter: 3" (76.2 mm)
Speaker Measurement:
Overall Diameter: 6.92" (176 mm)
Overall Depth: 3.52" (89.5 mm)
Front Mount Baffle Cutout: 5.6" (142 mm)
Mounting Depth: 2.77" (70.5 mm)
Motor Diameter: 4.33" (110 mm)
Gross Single Unit Weight: 3.75 lb
Shipping Dimensions (L x W x H): 7.25" x 7.25" x 4.25"
