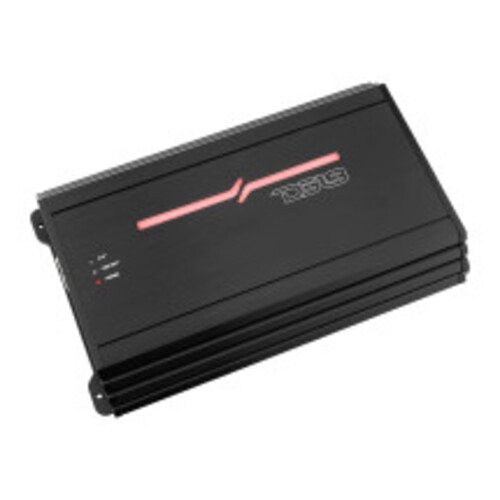

About: DS18 ZR1000.1D ZR Series 1000W RMS Class D Monoblock Amplifier
The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potential! With DS18's ZR1000.1D, the possibilities are endless. It boasts an impressive array of tuning options, including Lowpass, Subsonic, as well as a Bass Boost Switch Selector that allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.
Delivering a commendable 380W RMS @ 4-Ohm, 650W RMS @ 2-Ohm, and 1000W RMS @ 1-Ohm, the ZR1000.1D provides the perfect amount of power to fuel your bass. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment. The ZR1000.1D is a testament to DS18's commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 3000 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 10Hz – 220Hz, this amplifier faithfully reproduces the deepest lows with remarkable clarity and accuracy.
The ZR1000.1D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 4 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your bass, allowing for seamless integration with your existing sound system and putting you in complete control of your soundstage. Experience the DS18 difference today with the ZR1000.1D and discover a new dimension of car audio excellence.
Product Highlights:
1 Channel Subwoofer Monoblock
Class D
1 ~ 4 Ohm Stable
1 x 1000 Watts @ 1 Ohm
Clip/Protection Indicator
Bass Control Knob
Specifications:
Total Watts (Peak): 3000W
RMS Power @ 4 Ohm: 380W
RMS Power @ 2 Ohm: 650W
RMS Power @ 1 Ohm: 1000W
Frequency Response: 10-220Hz
Signal to Noise Ratio: >95dB
Efficiency @ 4 Ohm: 80%
Damping Factor: 220
Input Impedance: 20K ohm
Channel Separation: N/A
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.2-6V
High Level Input: No
Selectable X-Over: LPF Fixed
X-Over Filter Range: 40-180Hz
Bass Boost Range: 0-12db
Bass Boost Frequency: 30-80hz
Infrasonic Filter: 10-50hz
Phase Selector: No
Features:
Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Clipping/protect/power
Power Input Terminal Size: 4 GA
Fuse Size: 100 A
Remote Level Control: Yes / Dash Mount
Cooling Fan: No
Voltmeter: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes 16 Volts
Clipping Protection: Yes
Body Color / Finish: Black Aluminum Brush
Measurements:
Overall Length: 11.8" (301 mm)
Overall Wide: 7.24" (184 mm)
Overall Height: 2" (53 mm)
Heatsink Length: 10.47" (266 mm)
Gross Single Unit Weight: 5.8Lb
