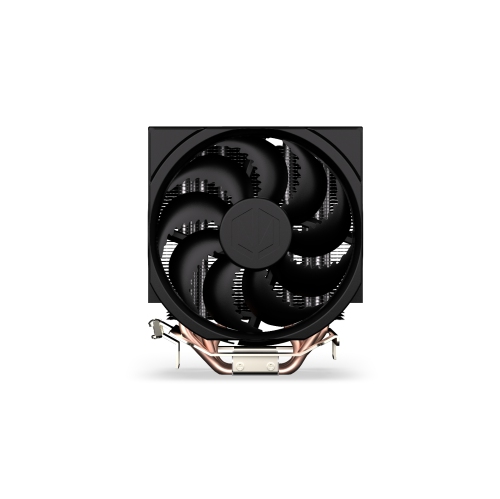

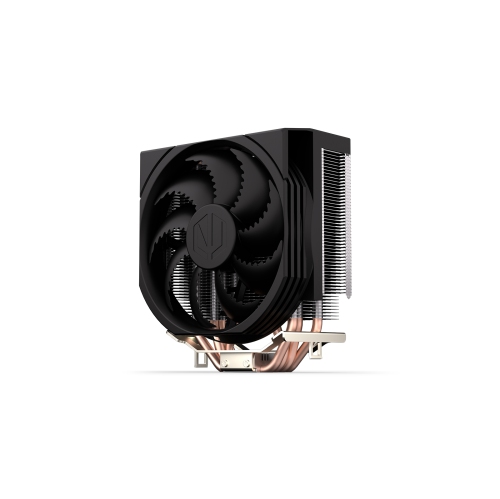

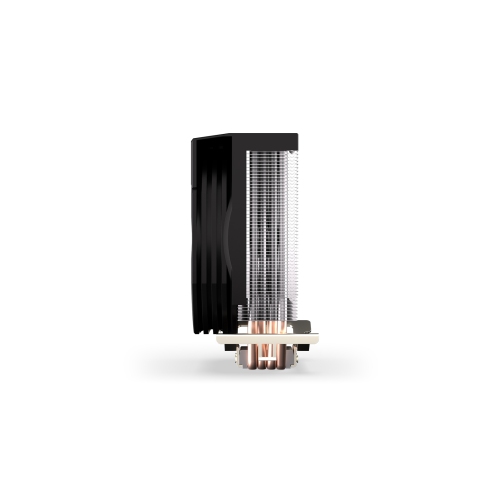

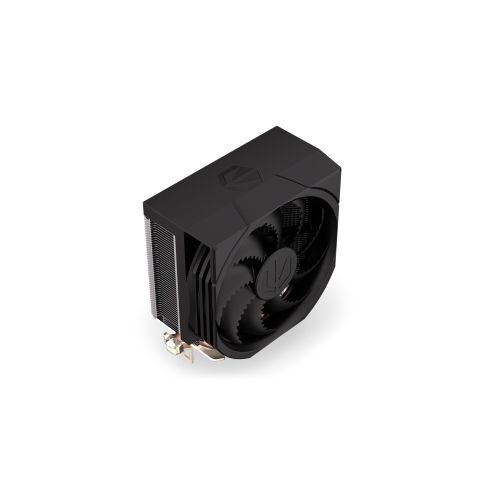

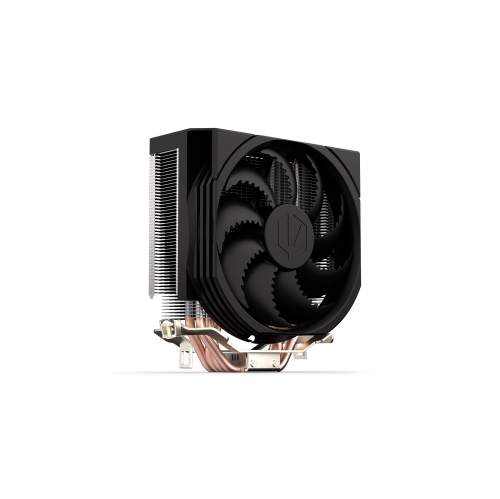

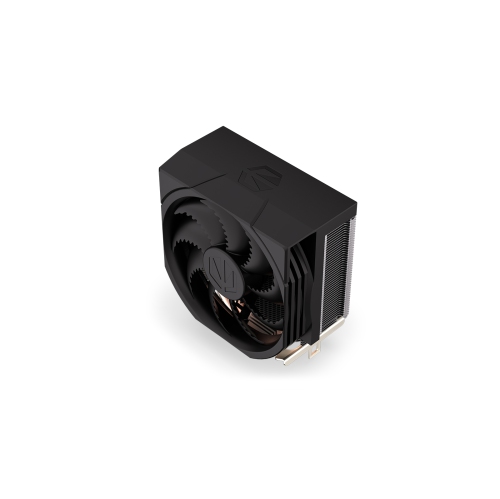

The ENDORFY Spartan 5 MAX is a short (at the highest point it’s 14.6 cm) cooler, with which you will start a cold winter in your CPU. The arctic breeze is ensured by a 120 mm Fluctus fan. We put it on a densely finned heatsink with four heat pipes, so you don't have to worry about hot flashes. With such a package you can render and design without worrying that your CPU will suddenly turn blue (unless you have colorful lights in stock).
The ENDORFY Spartan 5 MAX is also compatible with many sockets (from older ones like AM2 and LGA1156 to AM5 and LGA1700) and tall RAM sticks.
Quiet, quieter, the Spartan 5 MAX
If you happen to breathe louder, you may miss the sound of the Spartan 5 MAX working. This badboy is as quiet as students taking a written exam — except that our cooler remains silent even when the work is done.
A constant stream of airflow is supplied by the award-winning 120 mm Fluctus fan. The blades have been shaped in such a way as to blow as much air as possible through the densely arranged heatsink fins. Each blade has a wavy edge, which further reduces fan noise (psychoacoustic optimizations used in Fluctus fans are patent pending).
14.6 cm of power
At first glance, the Spartan 5 MAX seems small, but we added the word "MAX" to its name for a reason. The cooler is a short king, only 14.6 cm tall — thanks to this, it can fit in small cases and keeps the arctic-low temperature in them. It blows cold even when you pull an all-night gaming session after a busy day of work.

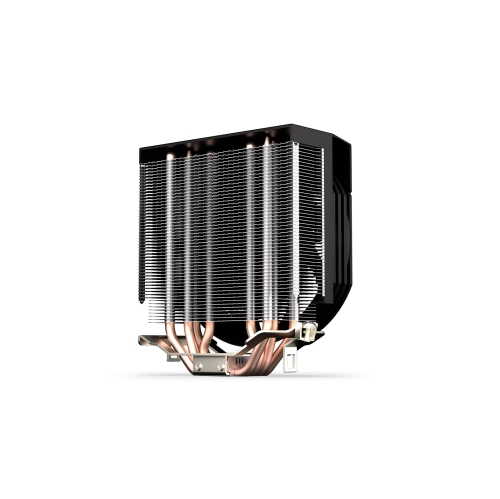

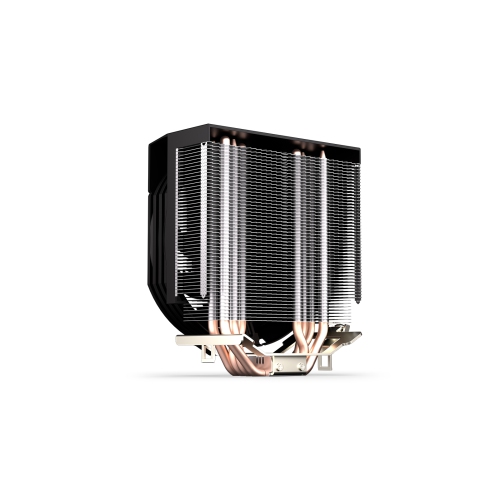

Such effective cooling is possible thanks to the heatsink with dense ribbing, which collects thermal energy well. The optimized base with direct-touch heat pipes drastically improves the dissipation of heat.
Assembly in a moment
You can literally mount the Spartan 5 MAX in a moment without additional fancy tools. By the way, we've taken care of the usually hardest things — we've installed a 120 mm Fluctus fan for you — so you'll be able to handle the whole process easily, even if it's your first time assembling a PC.
6-year warranty
We have been in the industry for a long time, and we know that the ENDORFY logo = high quality that cannot be faked. That's why with the Spartan 5 MAX cooler you get a long, 6-year warranty (although you probably won't use it anyway).
ENDORFY Spartan 5 MAX – main features:
-Cost-effective CPU cooling
-Compact design
-Integrated Fluctus fan
-Extended fan speed range
-Pre-applied Pactum PT-3 thermal paste
-Easy and rapid installation
-6-year warranty
ENDORFY Spartan 5 MAX – technical specifications:
-Product code: EY3A003
-EAN: 5903018665801
-Product type: CPU air cooler
-Color: black
-Radiator dimensions: 146×125×65 mm
-Radiator type: tower
-Heatpipes: 4
-Maximum number of fans: 1
-Fans (included): 1
-Included fans:
1 × Fluctus (integrated)
*Fan dimensions: 120×120×25 mm
*Fan speed: 250 (±100) – 1500 (±10%) RPM
*Control (speed): PWM
*Connector (fan): 4-pin (male and female)
*Voltage (fan): 12 V
*Current (fan, peak): 0.22 A
*Fan bearing: FDB
*MTBF: 100 000 h
*TDP: 180 W
-CPU compatibility:
*AMD: AM5, AM4, AM3(+), AM2(+), FM2(+), FM1
*Intel: LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156
-Warranty: 72 months
