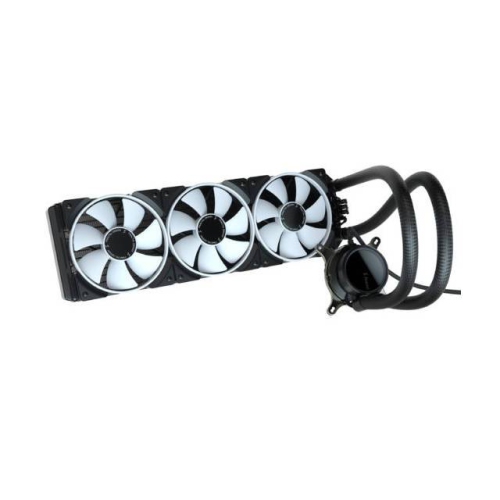

Fractal Design Accessory FD-W-2-S3602 Celsius+ S36 Prisma Retail

Fractal Design Accessory FD-W-2-S3602 Celsius+ S36 Prisma Retail

Model: FD-W-2-S3602
Web Code: 14965273
Sold and shipped by | 4.5 seller rating (17 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

MPN

FD-W-2-S3602

General specifications

Sockets supported (Intel)

1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066

Sockets supported (AMD)

AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)

Coldplate material

Copper

Thermal paste

Pre-applied

Tube length

400 mm

Tube material

Low-permeability rubber with braided nylon sleeve

Fittings, block side

Articulating 90-degree elbow

Fittings, radiator side

Straight rotary

Fan control

Dual mode (Auto/PWM)

Fan specifications

Fan type

Prisma AL-12 PWM ARGB

Rotational speed

500 - 2000 RPM

Bearing

LLS

PWM control

Yes

Acoustical noise (full speed)

32.7 dBA

Maximum air flow

85.71 CFM

Maximum static pressure

2.78 mm H2O

Input voltage

12V DC

Maximum input current

0.18A

MTBF

100,000 hours

Pump specifications

Rotational speed

800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60oC

Bearing type

Ceramic bearing and shaft

PWM control

Yes

Acoustical noise (full speed)

20 dBA

Maximum pressure, 50oC

1.46 mm H2O

Input voltage

12V DC

Input current (without fans)

0.36A

MTTF

50,000 hours

Block height

45 mm

Block measurements (with fittings)

86 x 75 mm

Block diameter (main block body)

62 mm

Radiator specifications

Dimensions

123 x 30 x 403 mm

Housing material

Aluminum

Fin material

Aluminum

Fan screw threads

6-32

Other

Package contents

Celsius+ S36 unit, 3 x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws

Product Condition
Brand New
