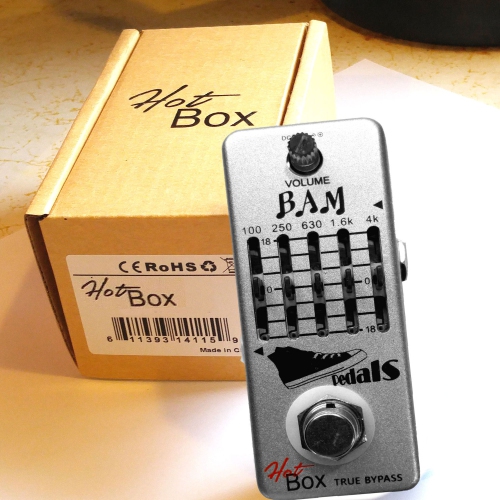

Hot Box Bam Guitar Graphic EQ Attitude Series Effect Pedal

Hot Box Pedals Bam 5 Band Graphic EQ Pedal features five adjustable frequency faders that can be used to shape and sculpt your sound. Cut problem frequencies, add warmth and achieve classic tones. Designed for electric guitar but will also work fine for bass.

Description

Hot Box Pedals Attitude Series Bam 5 Band Guitar Graphic Equalizer Pedal

The BAM Graphic EQ Pedal can be used with an electric guitar or electric bass. It features five adjustable frequency faders that can be used to shape and sculpt your instrument sound to perfection. With 18dB of gain or attenuation ranging from 100Hz-4kHz, this pedal can be used to cut problem frequencies, add warmth or sparkle, create the classic scooped mid sound, achieve that AM radio effect, and more.

Compact / Miniature Case Size

Advances in circuitry design have made is possible for guitar effect pedals to be built in a compact enclosures that literally fit in the palm of your hand. The mini design allows more pedals to fit on your pedal board and also helps reduce the overall weight.

True Bypass Circuitry

The compact inner circuitry is designed with a 3PDT True Bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.

Specifications:

Full Metal Shell

5 bands of EQ - 100Hz, 250Hz, 630Hz, 1.6kHz, 4kHz

18dB of attenuation or gain

True Bypass 3DPT Switch

Power Supply: 9V DC (Negative Centre) - (Not Included)

Working Current: 8mA

Input Impedance: 470K Ω

Output Impedance: 100k Ω

Input and Output Connectors: 1/4" jack

Dimensions: L95mm x W45mm x H53mm (incl. switch)

Weight: .2kg (203grams)

Note:

Power supply not included.

Please use the 9V power adapter whose polarity is negative center otherwise, the product may not work properly.

Package List:

1 * Effect Pedal

1 * User Manual
