Overview

Introducing IDE-SATA07, your solution for seamless data conversion. This Parallel ATA to Serial ATA Host Mode Converter boasts the Marvell 88SA8052 Bridge Controller, ensuring top-notch performance. Whether you need to adapt Serial ATA to ATA or ATAPI, IDE-SATA07 has you covered with its versatile firmware. With compliance to Serial ATA 1.0, 48-bit sector addressing, and support for various transfer modes, it's the bridge board that streamlines your data interface needs.

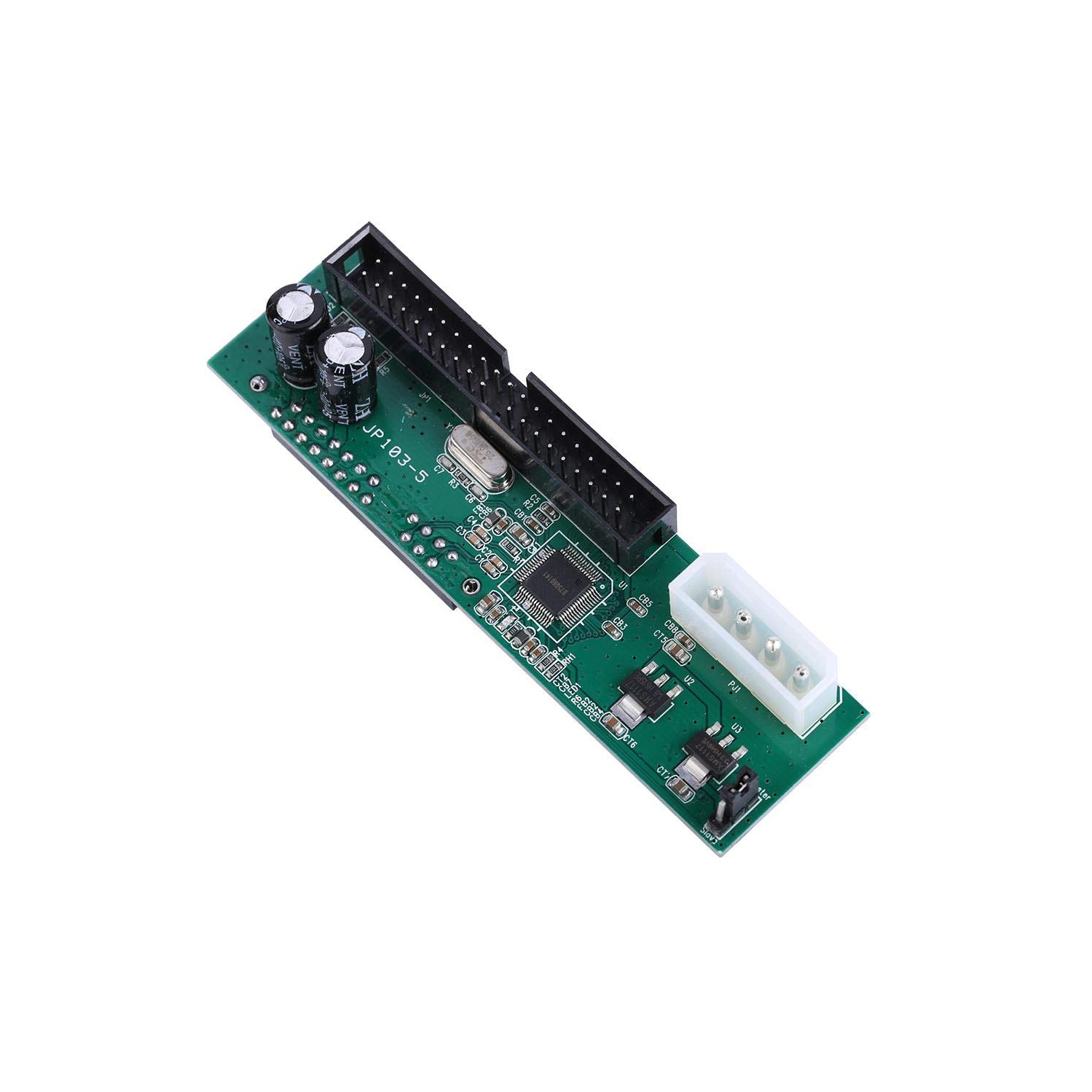

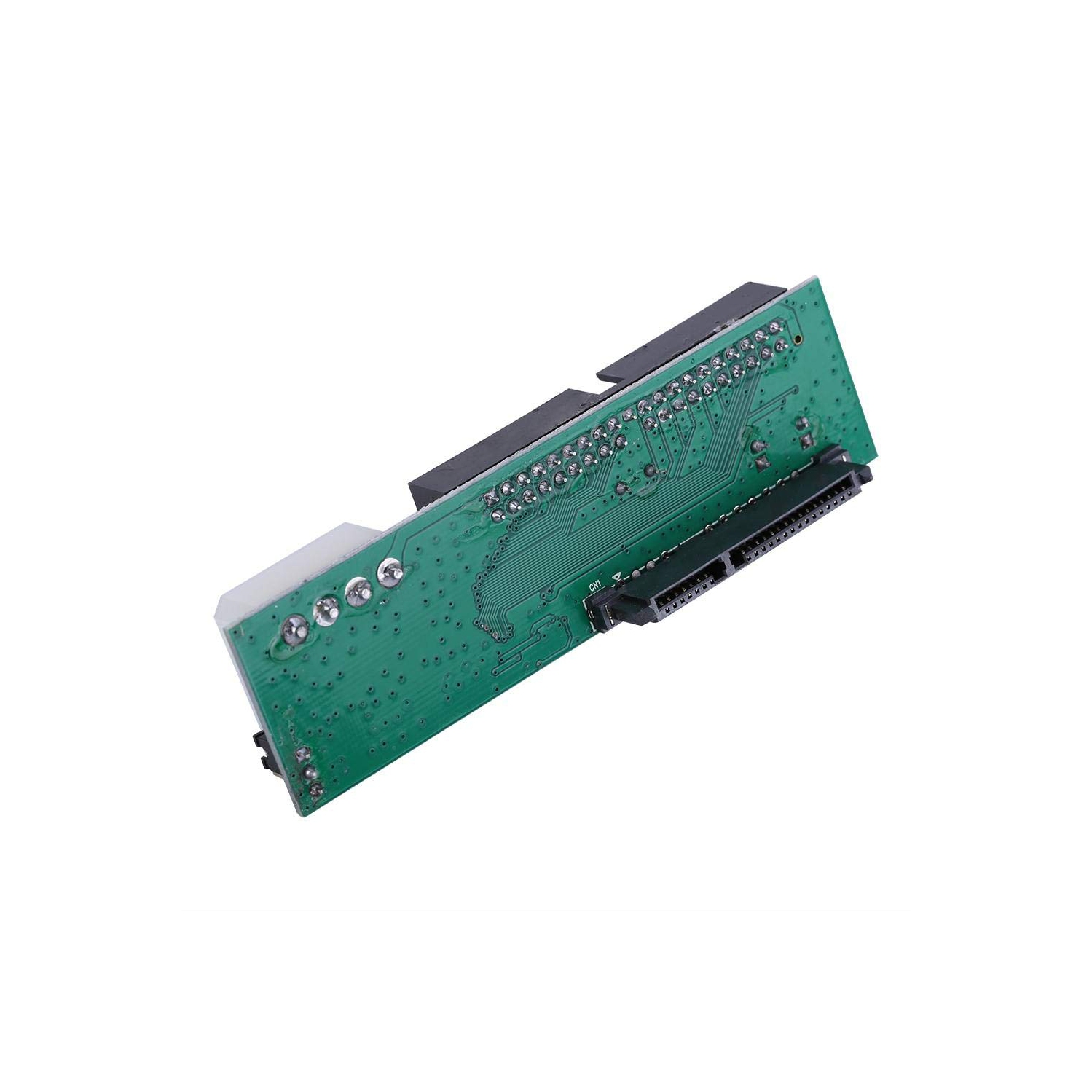

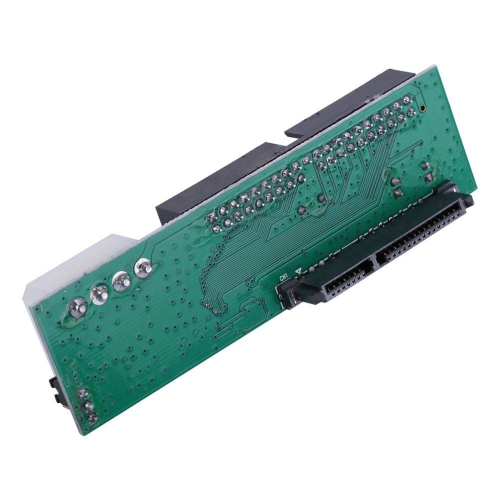

IDE-SATA07 Parallel ATA to Serial ATA Host Mode Converter featuring Marvell 88SA8052 Bridge Controller

Model: IDE-SATA07
Web Code: 17362048
Sold and shipped by | 4.7 seller rating (6 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Introduction

IDE-SATA07 is a Parallel ATA to Serial ATA Host mode Bridge Board featuring Marvell 88SA8052 Serial ATA bridge Controller.

IDE-SATA07 is ideally suited for tailgate interface applications for converting Serial ATA device into ATA device. Both ATA and ATAPI modes are supported using the same firmware.

Technical Specifications

Parallel ATA to Serial ATA Bridge Board:

Serial ATA:

Compliant with Serial ATA 1.0

48-bit sector addressing

Serial ATA Connector:

Signal + Power (7+15 pin) Female Type Connector

Parallel ATA:

Ultra ATA/133 Parallel Interface

48-bit sector addressing

Jumper for selecting Master and Slave

Parallel ATA Connector:

Male IDC 2X20 pin Connector

Transfer Rate:

Supports PIO and DMA modes

Supports bus master DMA at 1.5Gbps burst rate

DC Power Connector:

IDE Big 4-pin power connector

LEDs

Power LED

SATA PHY Ready LED

Activity LED (Pin Header 2pin Pitch=2.54mm)

Product Condition
Brand New

Connectivity

End Type #1
SATA II
End Type #2
Other
End Type #3
Other

Features

Maximum Resolution
720p HD
