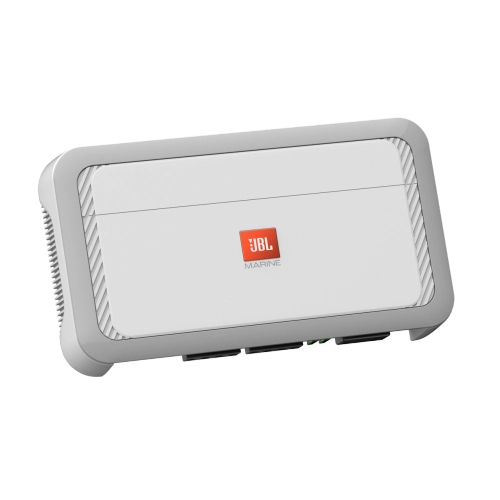

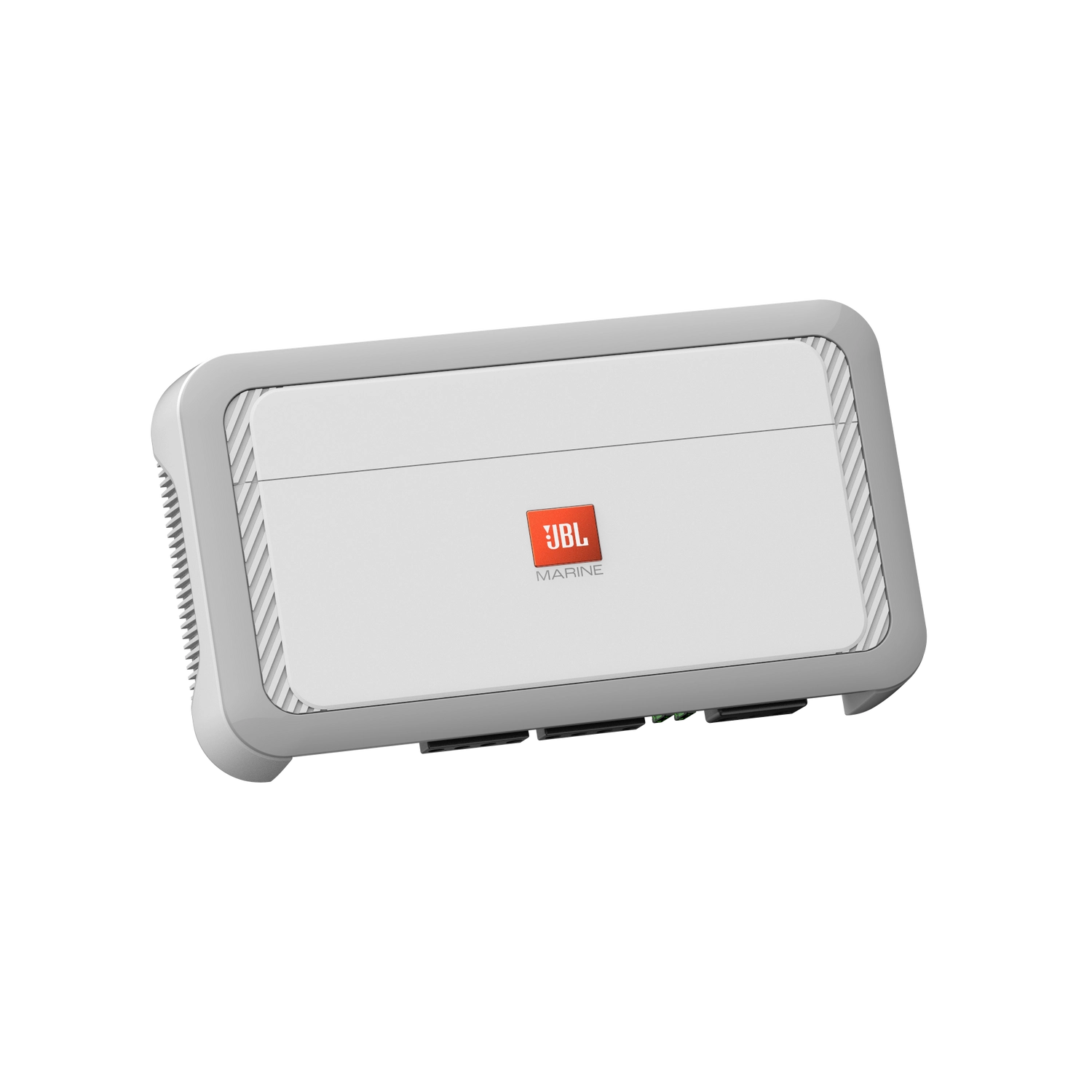

JBL MA754 Fullrange Marine 4-Channel Amplifier 75 Watts RMS x 4

The marine A754 4-channel amplifier delivers a powerful 75-Watts RMS to each of the front and rear speakers in your boat. You can also bridge the amp to 2-channel mode to drive a couple subs with 200 watts RMS or 3-channel mode to drive both a pair of full range speakers and a subwoofer. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your marine's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics.

Compact size

The JBL marine A754 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input

Speaker-level and low-level inputs allow the marine A754 to integrate with both aftermarket and factory marine stereo systems.

Variable crossover and bass boost

Unlike many amplifiers available at similar prices, the JBL marine A754 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion

The marine A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 4Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 1Vrms and 22Vrms.

Full on-board protection

On-board circuitry protects the marine A754 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Preamp Outputs

Using multiple amplifiers, the marine A754 has full range preamp outputs allowing you to feed an additional amplifier without using splitters.

Class H amp technology

The JBL marine A754 4 channels subwoofer amplifier delivers 400-Watts RMS using a Class H amplifier design to ensure high output and minimum current draw.

Turn-on mode

This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of remote turn-on lead of your installation more choice. A selectable "Turn-on mode" can protect battery to avoid current drain, when you don't expect turn on your amplifier.

Specifications:

•4 channel marine amplifier

•75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)

•200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)

•Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels

•Preamp and speaker-level inputs

•Preamp outputs

•Fuse rating 30A x 2

•8-gauge power and ground leads recommended — wiring and hardware not included with amplifier

•WxHxD=320mm x 51.3mm x 180mm WxHxD=12-5/8” x 2-1/16" x 7-1/8”
