Enhance your car monitoring system with the JVC KCA-R110 rear view camera, specially designed for the DRV-A310W and DRV-A510W Dash-Cams. This camera allows simultaneous recording of front and rear views, ensuring complete coverage of your driving environment. The included 26 feet (8 meters) cable provides maximum flexibility for installation, whether inside or outside your vehicle. With its IP67 certification, the KCA-R110 is water and dust resistant, capable of withstanding submersion of 3.3 feet of water for 30 minutes, making it a rugged option for all weather conditions . The kit includes two mounting brackets (adhesive and screw) and an adjustable bracket to easily adjust the camera angle as needed. By adding this reversing camera to your Dash-Cam system, you benefit from increased surveillance and better security when traveling and parking.
Features:
·Optional Rear View Recording: Connect the KCA-R110 to the connectable DRV-A310W to record in front of and behind your vehicle, all at the same time. The KCA-R110 includes a 26' (8m) cable that connects to the front dash camera, allowing it to be easily mounted on the rear windshield or exterior of the vehicle where you wish to record .
·

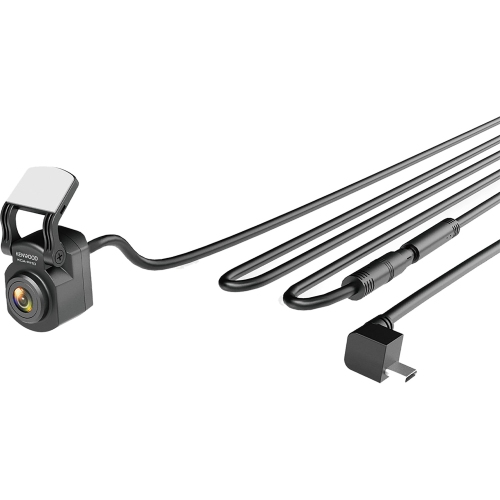

·26' (8m) Rear Camera Cable: The 26' (8m) power and video cable allows you to install the rear camera inside or outside your car, truck or camper -because.
·
·IP67 Waterproof and Dustproof: The KCA-R110 features an IP67 rating, which means the camera can be submerged in up to 3.3 feet of water for 30 minutes.
·
·The camera is also fully sealed and protected against dust ingress.
·

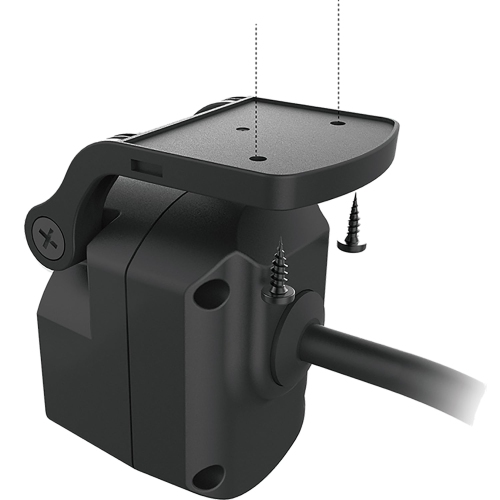

·2 rear camera mounts included for various installations: Adhesive and screw mount
·

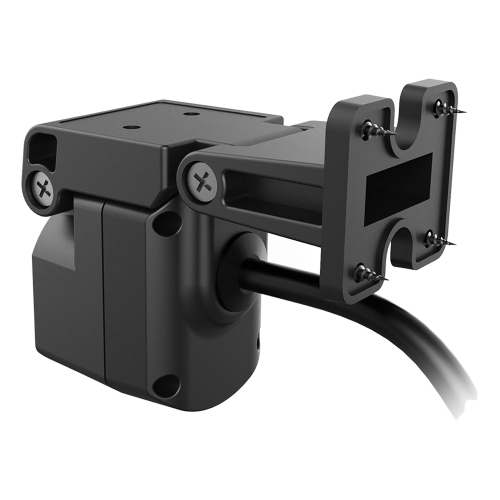

·Adjustable Mounting Bracket: Adjustable rear camera mounting bracket allows changing the viewing position from different angles.
·
Specifications:
General
·Operating Voltage: DC 5V
·
·Current consumption: ~300 mA
·
·Image sensor: 1/2.9" Galaxy Core / GC2093
·
·Valid pixel: 2 million pixels (1928 x 1108)
·
·Number of pixels: 2 million pixels (1920 x 1080)
·
·Viewing angles: Horizontal: 110.8° / Vertical: 59.6° / Diagonal: 131.6°
·
·Image Inversion: Yes (Invert/Mirror)
·
·Lens: F2.0
·
·Operating temperature: -10℃ to +60℃
·
·Noise protection: Yes
·
·Waterproof: IP67
·
Recording specifications
·Recording resolution: 1920 x 1080 Full HD
·
·Frame rate: 30 frames per second
·
·HDR: Yes
·
·Video format: H.264/MP4
·
Dimensions
·Dimensions WxHxD (bracket attached) with bracket: 1-1/16 x 2 x 1-1/4" (27.6 mm x 31.7 mm x 50.0 mm)
·
·Weight (main unit): 0.66 pounds (300g)
·
Accessories Provided

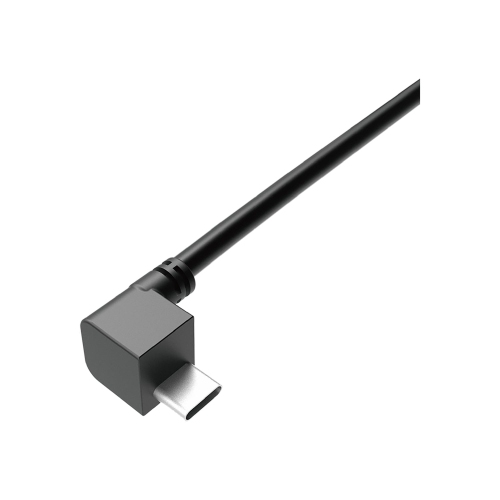

·DC cable: 18 feet (5.5 m)
·
·Support: Vertical support and screws (for non-car)
·
·Replacement 3M Adhesive Pad: Yes/2pcs
·
Warning The JVC DRV-A310W and DRV-A510W dashboard cameras (DashCam) compatible with this rear view camera are sold separately
