About: Kicker 51HS8 Hideaway Series 8" 150W RMS Compact Powered Subwoofer
KICKER's legendary subwoofer technology continues to lead the way for clear-sounding, ground-pounding bass in a vehicle.
Compact Performer
KICKER's legendary subwoofer technology continues to lead the way for clear-sounding, ground-pounding bass in a vehicle. It's incorporated into KICKER's latest bass machine, the brand's first compact powered subwoofer and an International Consumer Electronics Show (CES) Innovations award winner for design and engineering.
Plug-and-Play Bass

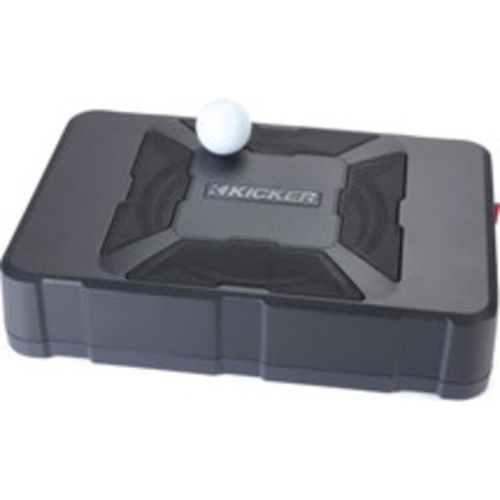

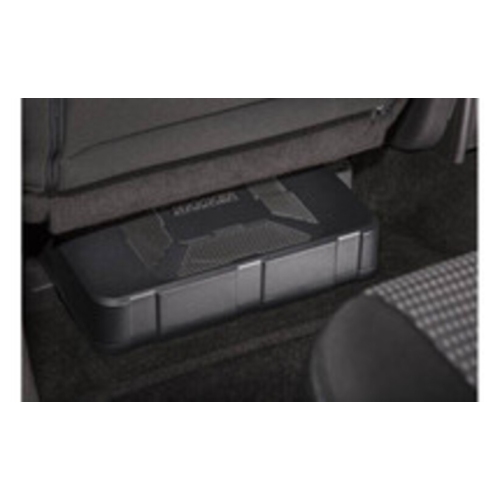

The KICKER Hideaway Compact Powered Subwoofer delivers surprising low frequency output from a remarkably small enclosure, setting a new standard in plug-and-play bass performance and convenience in a vehicle. At just over three inches high and nearly 14 inches long, the Hideaway combines a 150-watt amplifier and an 8-inch subwoofer to add thumping bass to any vehicle from the tightest locations. It also provides a quick-connect power plug and Velcro®-fastened nylon straps for secure installation and simple but fast removal.
Mr. Irby's Recipe - FOR BASS!
KICKER Senior Vice President Charlie Schultz said, "Our president Steve Irby was intimately involved in the design process with the KICKER Research and Development team, and they nailed it with the Hideaway Powered Subwoofer."
Feature Full

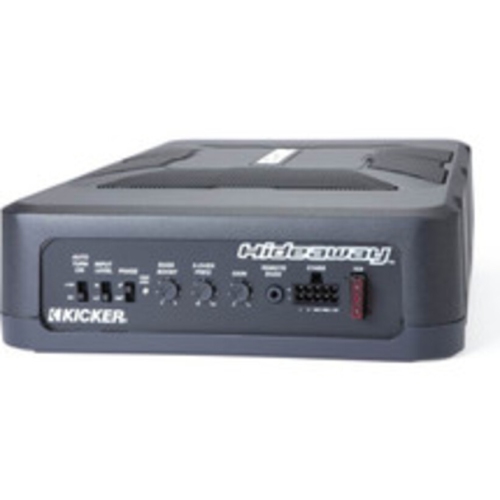

The quick-connect Molex® plug and harness entails power, signal and remote turn-on. The Hideaway comes with a remote bass control for fine-tuning bass levels, adjustable low-pass crossover, variable +6dB bass boost, phase-cancelling switch for max output and two automatic turn-on options. It also features high- and low-level inputs for integration with nearly any factory or aftermarket head unit.
Specifications:
Compact powered subwoofer
8" woofer
Built-in 150 watt RMS amplifier
Frequency response: 25-120 Hz
Variable low-pass crossover (50-120 Hz)
High-pass crossover (25 Hz)
Variable phase control (0 or 180 degrees)
Bass boost control (0dB to +6dB)
Speaker-level inputs (will also accept preamp-level signal using optional adapter, item 20646KiSL, sold separately)
Auto turn-on switch
Wired remote bass control
Dimensions (W x H x D): 15.13" x 3.13" x 9.25"

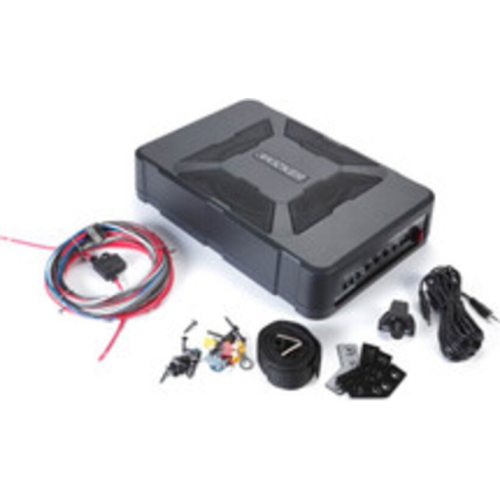

What's in the Box:
8" Amplified subwoofer
Wiring harness (17' Power input/ 8' Speaker level input/ 2' Ground/ 2' Remote turn-on)
12" Power wire with in-line fuse holder and installed 15A ATO fuse
Two 10A ATO fuses (1 installed in the chassis of the unit/1 spare)
Remote bass level control
19.5' Remote cable (3.5mm TRS plugs on both ends)
Two 29" nylon mounting straps
4 Mounting brackets
Four 1-1/2" screws
Four 3/4" pan head screws
Eight 3/4" flat head screws
Two 3/8" screws
4 Flat washers
Two 10-12 gauge crimp-on ring terminals
One 10-12 Gauge butt connector
Mounting template
Owner's manual (En/ Sp/ Ge/ Fr)
