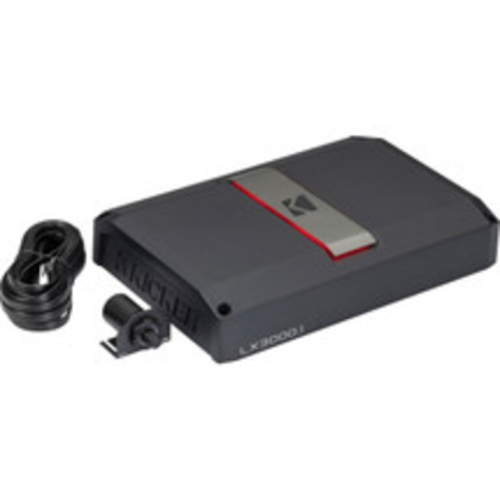

About: Kicker 51LX3000.1 LX-Series 3000W RMS Monoblock Amplifier
The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All monoblock amplifiers come with a robust remote level control (LXRC) featuring SHOCwave2.0™.
From the Ground Up
The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.
Monitor and adjust with the included LXRC Dash Remote
Class-D design for lower current draw, longer playing times, and lower operating temperatures
Gain-match LEDs show you perfect gain setting
KickEQ+™ parametric bass boost 0–6dB

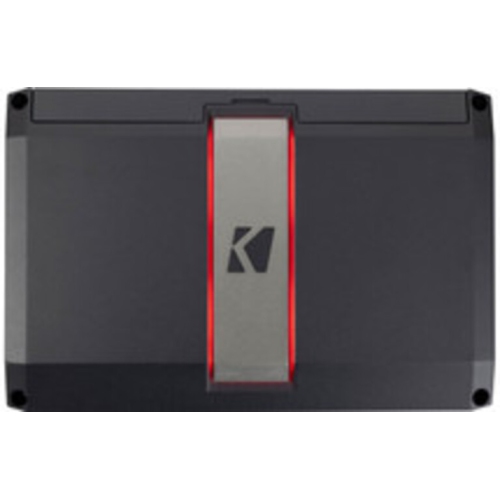

Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance

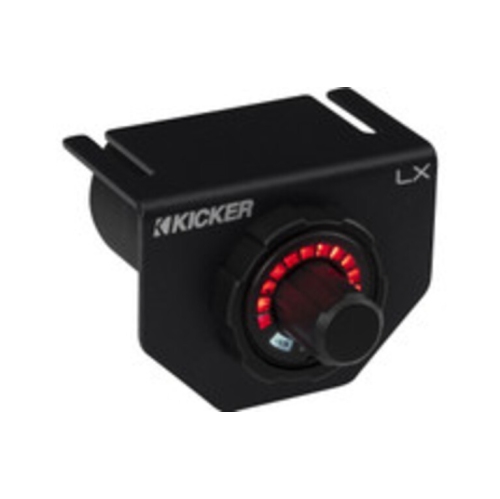

Comes With The LX Remote Control (LXRC)
Dynamic fingertip dash remote of bass level adjustment
Features SHOCwave2.0™ (Sub-Harmonic Octave Creation), KICKER’s 2nd-gen digital bass restoration algorithm that recovers lost, low-bass frequencies vital to your music selections
Displays battery voltage in fuel-gauge-style readout
Control of its RGB LED brightness
Output clipping indicator to prevent distortion and protect your system
Cable Length – 19.75 feet (6m) RJ45 cable
Specifications:
Mono subwoofer amplifier
1100 watts RMS x 1 at 4 ohms
2000 watts RMS x 1 at 2 ohms
3000 watts RMS x 1 at 1 ohm
Class D amp technology
Frequency response: 10-160 Hz
Channel gain knob with clip light
Adjustable RGB LED accent lighting and reversible center panel with Kicker logo
Variable low-pass filter: 40-160 Hz, 24 dB/octave
Variable subsonic filter: 10-80 Hz, 24 dB/octave
Switchable phase
Adjustable KickEQ+ parametric bass boost: 0-6 dB at 20-80 Hz, 1-5 bandwidth
LXRC Wired Remote Control:
Functions include subwoofer volume control
Clip indicator LED
SHOCwave2.0T sub-harmonic bass restoration
Graphic battery voltage meter
Controls RGB LED brightness
More Info:
Compatible with start-stop vehicle systems
Preamp and speaker-level inputs
Speaker wire adapters included
Speaker-level inputs handle up to 40V (400W)
Signal-sensing turn-on with speaker-level input
Preamp outputs
Wiring, fuse, and hardware not included with amplifier
1/0-gauge amp wiring kit with fuse or 1/0-gauge power and ground leads with a 200-amp fuse recommended
Dimensions (W x H x D): 12.63" x 2.38" x 8.42"
What's in the Box:
Mono subwoofer amplifier
LXRC Remote bass control with attached mounting bracket
19.5' Remote bass control cable (terminated in RJ-45 connectors on both ends)
10" Speaker-level input harness
Four 1-3/8" screws
Two 3/8" screws
3mm Allen key
Owner's manual
Power chart
Power certificate
