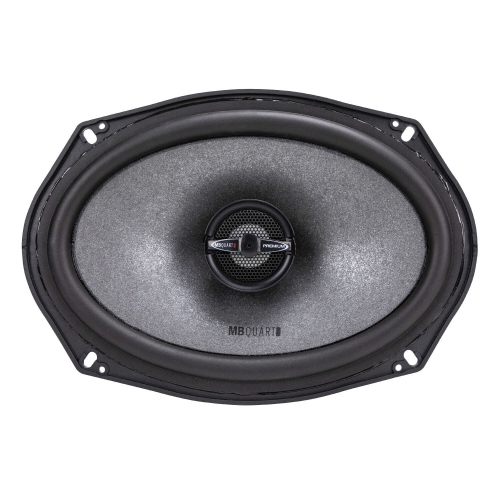

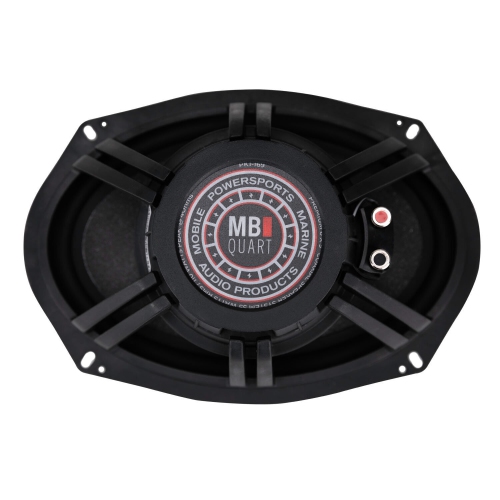

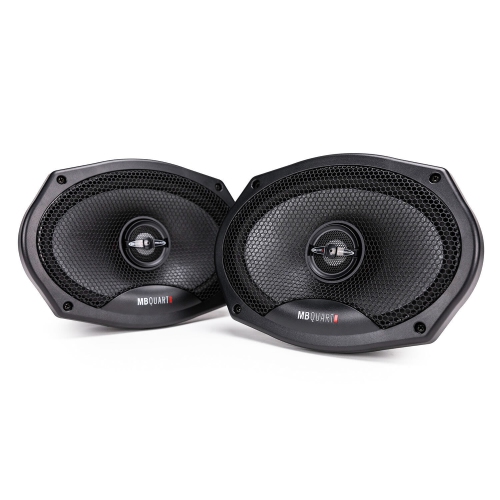

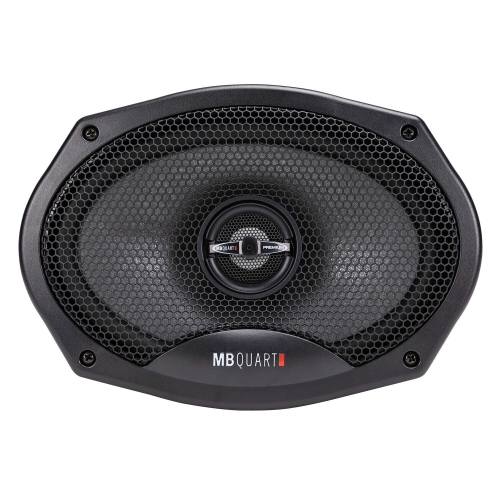

220 Watts 6×9″ Premium 2-Way Coaxial Speaker System (Grills Included). 6×9″ Premium 2-Way coax speakers with 1″ Magnesium WideSphere™ Technology Tweeters with pop aerated paper cone with a Mica blend.
Tweeters. 1" magnesium dome tweeter for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.
Cone Material. Lightweight aerated pop paper cone with Mica blend for strength and superior bass frequency reproduction. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
Surround / Cone Coupling. High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
Gasket. Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
Voice Coil / Former Assembly. High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.
Spider. Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
Cooling System Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil.
Crossover. Premium coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.
Tweeter Hardware. Tunable waveguide tweeter housing with removable phase lens creates larger than life sound stage.
Frame. Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.
Connectors. Stainless steel, push and insert connectors resist corrosion and create a superior electrical connection.
Grills Included
Weight: 6 lbs
Dimensions: 16.3 × 11.1 × 5.6 in
Speaker RMS Power Handling (watts): 55/110 Each & System
Speaker Peak Power Handling (watts): 110/220 Each & System
Speaker Impedance (ohms): 4
Speaker Frequency Response: 20Hz-22kHz
Speaker Sensitivity: 85.5dB
Speaker Crossover Slope: 6dB/Octave
Speaker Height (in): 3.58
Speaker Mounting Diameter / Cut Out (in): 8.77 x 6.06
Speaker Outside Diameter (in): 9.44 x 6.61
Speaker Mounting Depth / Chassis Depth (in): 2.95
Speaker Size (in): 6 x 9
