PREAMP LIVE has been designed from the ground up to be the ultimate digital preamp modeller for use in a live situation. Every control feature has been carefully
thought out to be intuitive and provide the best experience for live performance. PREAMP LIVE provides a wide array of
different amp tones right at your feet. It lets you select and carry 12 independent preamp channels of your choice, from a selection of 50
models available within the supporting software and mobile apps. Added to each of the 12 preamp channels is a dual position booster,
adjustable pre and post noise gates, a fully programmable effects loop with different modes, full channel switching control, MIDI IN and OUT,
dedicated headphone connection, multiple outputs with optional cab simulation and IR loading capabilities.Ever wanted
to get UK overdrive from your F style amp? Or sparkling, spanky cleans from your M style amp? The effects loop in PREAMP LIVE has a unique A/B
mode which lets you use your amplifiers analogue preamp along with the digital models. This effectively expands the tonal palette of your
amplifier without the need for an expensive, complicated switching device. If that wasn’t enough, you can also
use MOOER’s “TONE CAPTURE” feature, to sample your own amplifiers preamp section and create brand new digital models of your own to use at gigs
and share with your friends.MAIN FEATURES * Contains 12 independent preamp channels with intuitive, familiar switching controls* Pre/Post BOOSTER
and adjustable Pre/Post noise gates for each channel* Easily accessible global controls for fast setup in different live situations*
Optional independent speaker cab sim for each output* IR loading via the supporting software and mobile apps* Fully programmable effects loop with
serial and A/B modes. For use with external effects or combining with your head/combo’sown preamp using the 4-cable method*
TONE CAPTURE for sampling your real amplifiers tonal characteristics and creating new digital preamp models* Dedicated headphone output for use as
a stand-alone practice unit* Fully mappable MIDI IN and MIDI OUT for integration with other equipment* USB and Bluetooth for connecting to PC, MAC and MOBILE APP

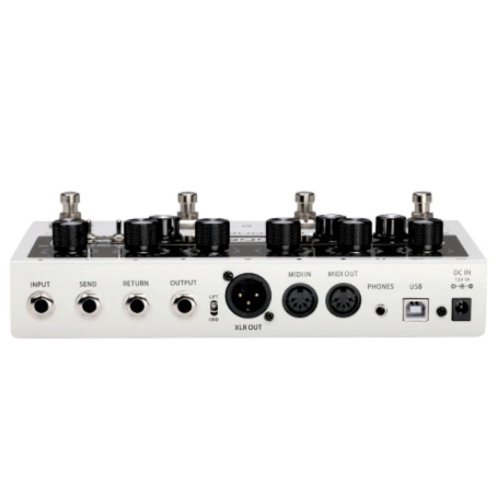

for deep editing and amp selection SPECIFICATIONS Preamp Channels: 12Input: 1/4'' mono audio jack (impedance 500k)Outputs: 1 x 1/4'' mono audio jack (impedance100Ω)
Effects Send: 1/4'' mono audio jack (impedance100Ω)Effects Return: 1/4'' mono audio jack (impedance 500k)USB: Type-B Female
Connector Sampling accuracy: 24bitSignal to noise ratio: 103dBEffects Loop: Mode 1 Serial ~ Mode 2 A/BMIDI IN & OUT: 5 pin DIN connector Sampling rate: 88.2KHz
Power requirements: 9V-12V DC 1ADimensions: 230mm x 130mm x 54mmWeight: 1.18Kg
Accessories: 1 x USB Cable
1 x Power Supply
1 x Manual
IMPULSE RESPONSE SPEC Format: .WAVSampling rate: 44.1KHzSampling accuracy: 24bitMax sample length: 23.2ms/1024
PointsSoftware Download Computer PC：win7/win8/win10， MAC: OSX 10.10 or higher.Mobile Device IOS: IPhone 5, IOS 9.0 or higher. IOS：
（Available from App Store） Android: Android 4.4 or higher. Android: （Available from Google Play）
