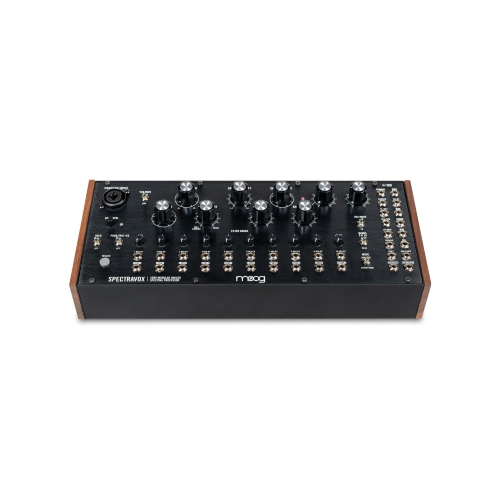

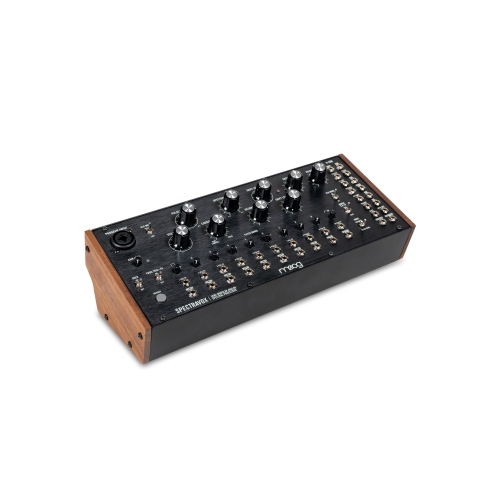

Moog Spectravox Semi-Modular Analog Spectral Processor

The newest member of the Moog family is a groundbreaking tool for sculpting sound.

An analog spectral processor based around a 10-band filter bank, Spectravox creates lively drones and colorful tonal sweeps on its own and adds resonant depth and psychedelic spectral movement to any external sound. Hook up a microphone and Spectravox becomes a 10-band analog vocoder with innovative integrated modulation of all of its filters. An exploration and expansion of the topology of the vocoder and filter bank, Spectravox is a highly flexible instrument and signal processor with a comprehensive patch bay for integration into studios of all sizes.

With 10 filters whose variable resonance can morph from soft precision to shimmering choral effects, Spectravox reshapes the sounds you love into surprising new forms and brings a new world of sonic possibilities to your studio.

In VOCODER mode its 10 analysis filters map the timbral characteristics of any external sound onto any other sound you can imagine. Shape the warm analog oscillator of Spectravox with the dynamics of your voice, or use a drum machine to animate guitar chords in a mesmerizing broadband percussive spa.

Specifications Analog Sound Engine

Sound source: VCO, White Noise Generator

Filter: 10x variable resonance voltage-controlled filters

1 Low-Pass Filter

8 Bandpass Filters

1 High-Pass Filter

Envelope: VCA EG (Decay)

Rear Panel

Audio: 1/4" TRS Headphone or 1/4" TS Instrument

Power: Power supply connection

Security: Kensington lock slot

Analysis Engine Sources

Sources: Ext Input via 1/4"/XLR Combo jack or 3.5mm jack with preamplifier.

Patchbay

Jacks: 36 x 3.5mm

Inputs: 19 Input Jacks

Outputs: 17 Output Jacks

Eurorack specs

Current Draw: 450 mA (Maximum) from +12VDC (10-pin header)

Mounting Dims: 60HP (1.5" Module Depth)
