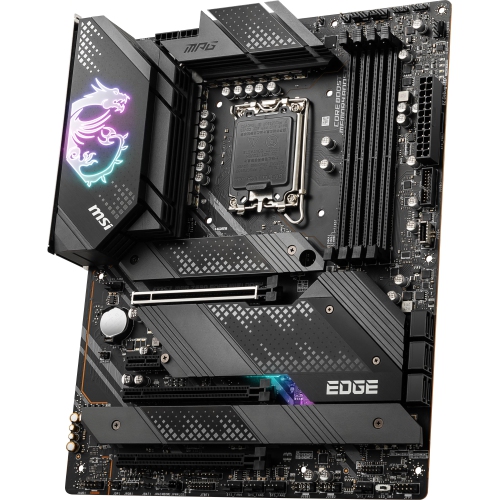

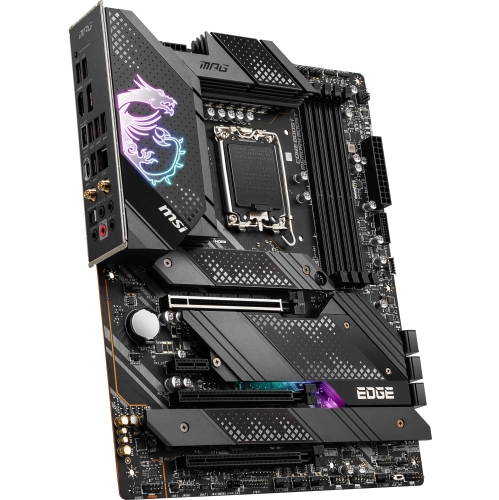

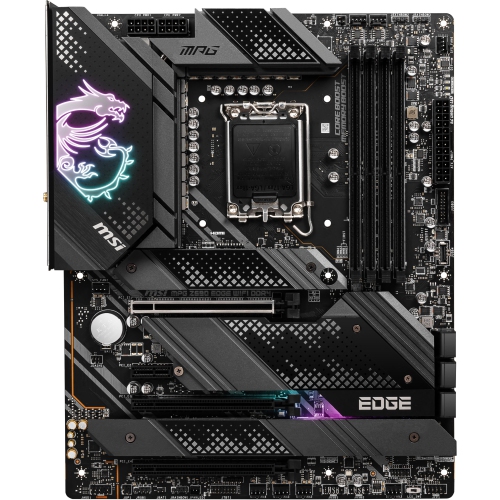

MSI MPG Z690 Edge WiFi Gaming Motherboard (Supports 12th Gen Intel® Core™ CPU, LGA 1700 Socket, DDR5, PCIe 4, CFX, M.2 Slots, Wi-Fi 6E, ATX)

MSI MPG Z690 Edge WiFi Gaming Motherboard (Supports 12th Gen Intel® Core™ CPU, LGA 1700 Socket, DDR5, PCIe 4, CFX, M.2 Slots, Wi-Fi 6E, ATX)

Model: Z690EDGEWI
Web Code: 16572039
Sold and shipped by | 3.5 seller rating (632 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

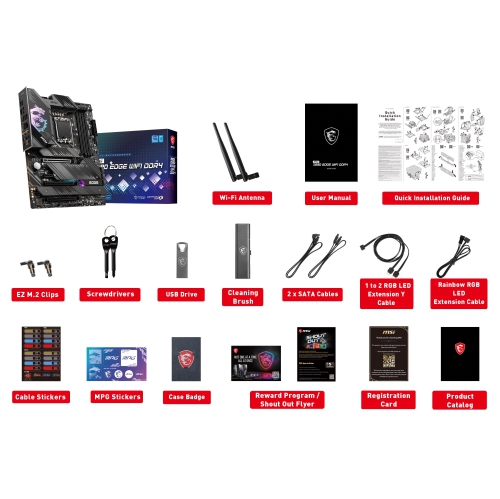

What's included:

  • MSI MPG Z690 EDGE WIFI Motherboard
  • User Manual
  • Quick Installation Guide

· Designed to support 12th Gen Intel Core processors, Pentium Gold and Celeron processors

· LGA 1700 socket offers more pins to enable effortless connection with the components and thereby improves functionality

· ATX Form Factor assures optimised power management and shuts off the system automatically if it overheats

· Intel Z690 chipset featuring 1x PCIe 5.0 x16 slots, 2x PCIe 3.0 x16 slots and more for high bandwidth graphic cards, network adaptors, etc.

· Comes with 4 DIMMs and supports Dual channel 6400 MHz DDR5 + (OC) that increase the processing speed for a seamless gameplay

· AMD CrossFire Technology combines two or four GPUs that work simultaneously to deliver a dynamic gaming performance

· With Processor Graphics, it supports 4K at 60Hz which is specified in HDMI 2.1 and DisplayPort 1.4

· Intel I225-V 2.5G LAN, Intel Wi-Fi 6E module and Bluetooth 5.2 make wireless and wired connectivity with the PC simple and easy

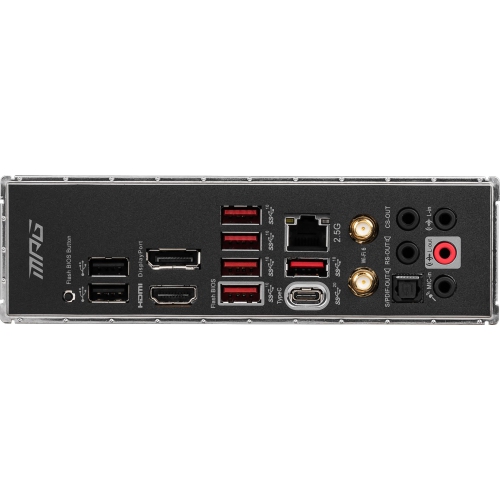

· Four M.2 Gen4x4 64Gbps slots, six SATA 6Gbps slots one USB 3.2 Gen 2x2 20Gbps (1 Type-C), six USB 3.2 Gen 2 10Gbps (5 Type-A + 1 Type-C), two USB 3.2 Gen 1 5Gbps (2 Type-A) and six USB 2.0 for extended connectivity option. Intel Optane Technology allows easy access to recently used files and programs to boots the overall productivity

· 8-Channel (7.1) HD Audio with Audio Boost 5 produces crisp sound to enhance the movie watching or game playing experience

Product Condition
Brand New
Motherboard Form Factor
ATX
CPU Socket Type
LGA 1700
Processors Supported
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsProcessor socket LGA1700
Supported Processor Chipset Make
Intel
Multi-GPU Support
CrossFireX Ready
Chipset
Intel Z690
Memory Channel Architecture
Dual Channel
Computer RAM Type
DDR5
Memory Supported
6400 MHz DDR5 + (OC)
RAM Pin Configuration
288-Pin
Memory Slots
4
Maximum Memory Supported
128 GB
Built-in Audio
Yes
M.2 Slot
4
PCIe Generation
PCIe 5.0
PCI Express X1 Slots
1
PCI Express X16 Slots
3
Ethernet Port
1
Wireless Standard Generation
Wi-Fi 6E
USB 2.0 Ports
6
USB 3.1/3.2 Gen 2 Ports
7
USB Type C Port
2
HDMI Port
1
Other Video Ports
1x DisplayPort
Other Audio Ports
1 x S/PDIF Optical
SATA III 6.0Gb/s Ports
6
