Overview

Certified Original Nagoya Antenna - Directly from the manufacturer. May Require a Rubber spacer (included) and has an extended antenna cover to protect your radio SMA male base from the elements

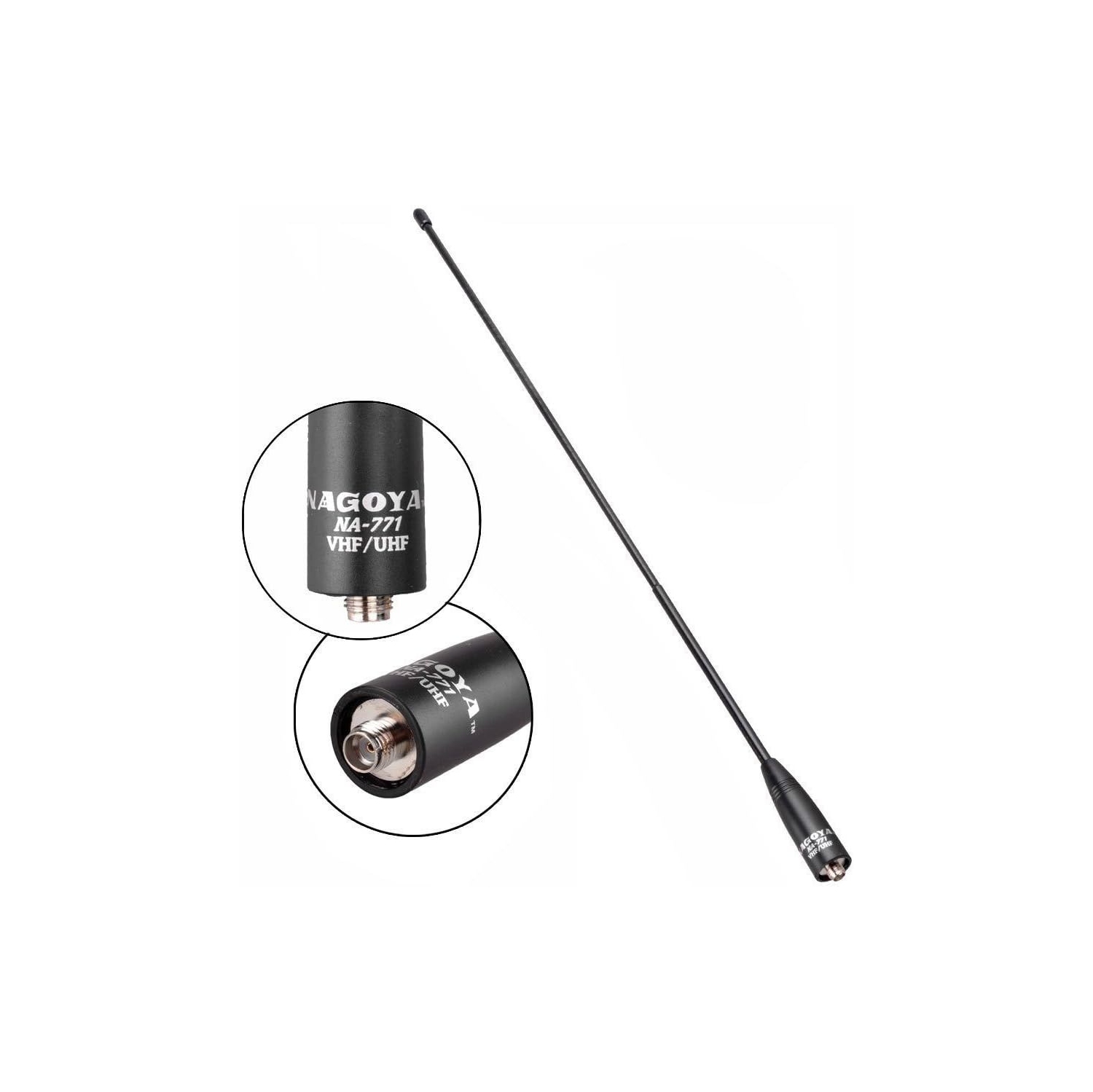

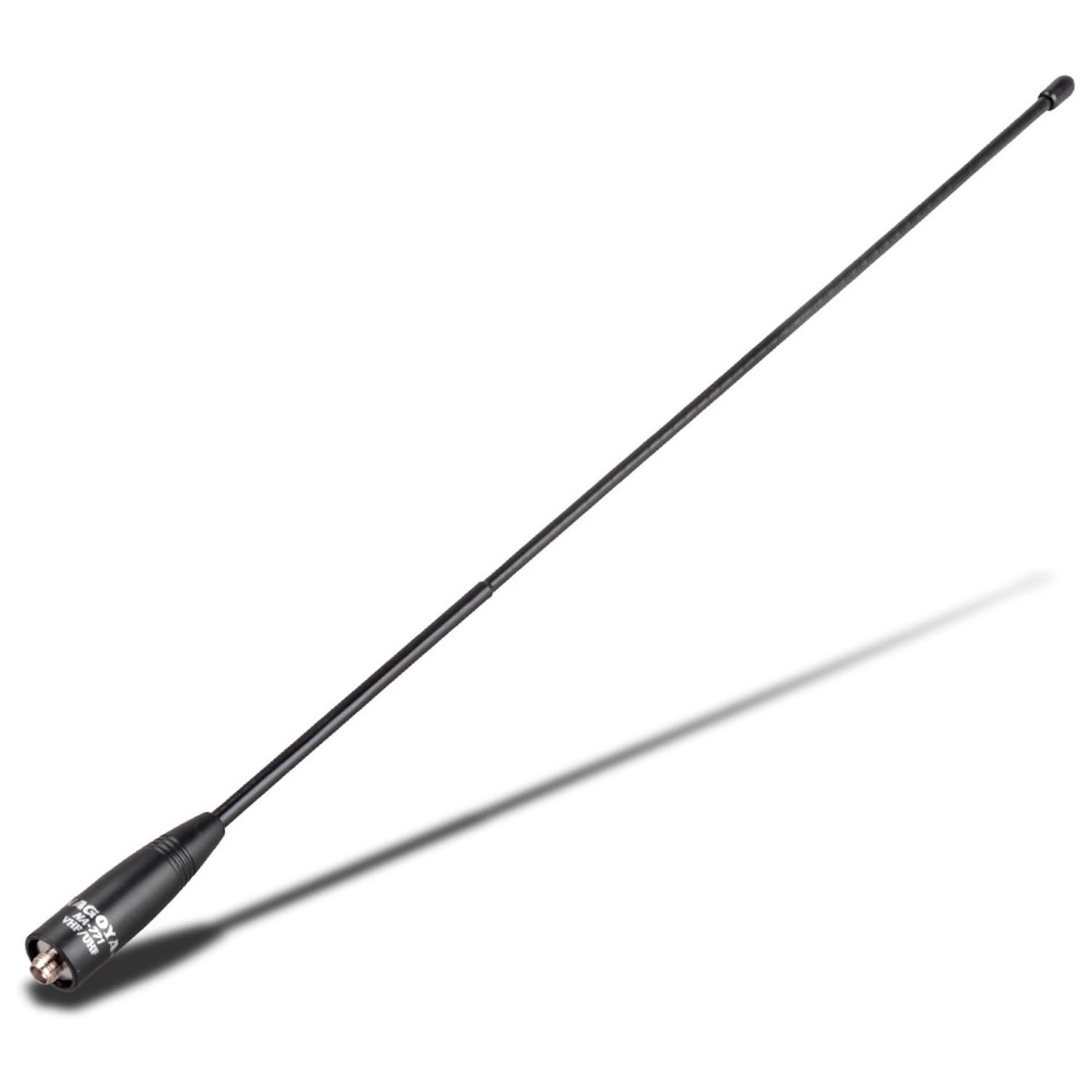

Nagoya NA-771 15.6-Inch Antenna SMA-Female

Model: NA771
Web Code: 12621773
Sold and shipped by | 3.7 seller rating (3 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • Nagoya NA771 Antenna, SMA-F

Genuine Nagoya NA-771

This is the Original Nagoya NA-771 Dual Band High Gain Antenna.

Every Nagoya Antenna is individually tested and tuned for the supported frequency range it was made for.

The Nagoya NA-771 is almost 16 inches long and is a must for outdoor and camping usage. This is a soft flexible antenna able to withstand more 'roughness' than a stock radio antenna, all while boosting the signal of your radio significantly! The added length significantly improves reception from a shorter stock antenna.

Compatible with:

BaoFeng: UV-82, UV-5R (All models), BF-F8HP, BF-F8+, and all other BaoFeng Models; Compatible With all Models of BaoFeng.

Kenwood:

TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G and more.

Frequency Range: 136-174MHz, 400-520MHz.

Optimal Frequency Range: 140-150MHz, 420-450MHz

Wave: 1/4λ (144MHz) - 1/2λ (430MHz)

Gain: 2.5dBi

Max power: 10 Watts

VSWR: Less 1.5:1

Impedance: 50 OHM

Connector: SMA-F

Length: 39.6 cm (~15.6 inches)

Impedance: 50 OHM

RoHS Compliant

Product Condition
Brand New
