Overview

Features:Shows SDI source on HDMI displaySupports SDI intput distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

  • New MINI SDI to HDMI Converter Adapter BNC SDI/HD-SDI/3G-SDI High Speed

    Model: ced_42193826480373
    Web Code: 15938352
    Sold and shipped by | 4.6 seller rating (126 reviews)

    Available for deliveryAvailable online only

    Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

    Enjoy on orders from this seller.

    Seller Return Policy

    Warranty

    Check with the manufacturer for details.

    For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

    Features:

    ·Shows SDI source on HDMI display

    ·Supports SDI intput distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

    ·SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s

    ·Supports HDMI output timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60

    ·Converts SDI to HDMI signal:

    ·SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s) to 480i/576i

    ·HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s) to 720p/1080i

    ·3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) to 1080p

    ·Works as receiver side of HDMI extender over BNC coaxial cable (need to work with HDMI to SDI converter, sold seperately)



    Specifications:

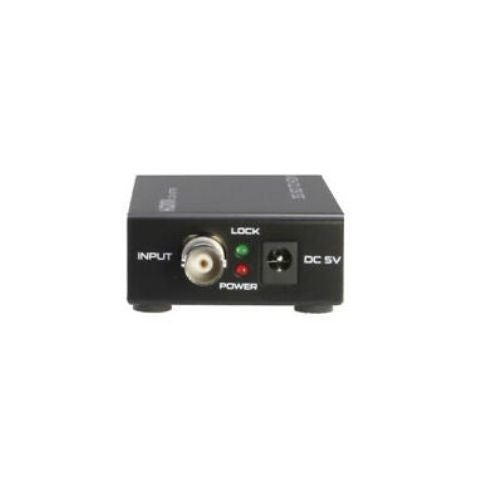

    ·Input Port: 1 x BNC (SDI/ HD-SDI/ 3G-SDI)

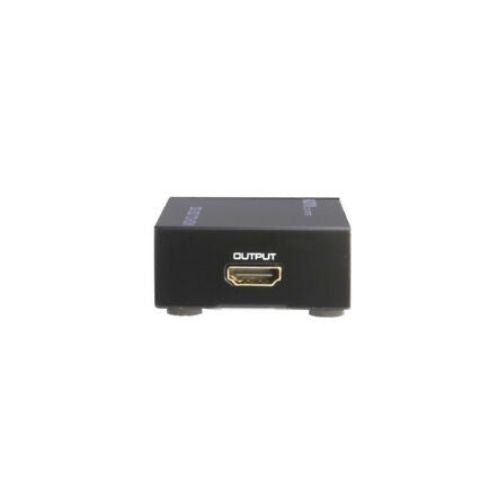

    ·Output Port: 1 x HDMI

    ·SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s

    ·Power Supply: DC 5V -12V

    ·ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)

    ·Power Consumption (Max): 5W

    ·Size: 94 x 49 x 25mm (3.7 x 1.9 x 1 inch)

    ·Weight: 117g (4.13 oz)

    Package Include:

    ·1 x SDI to HDMI Converter

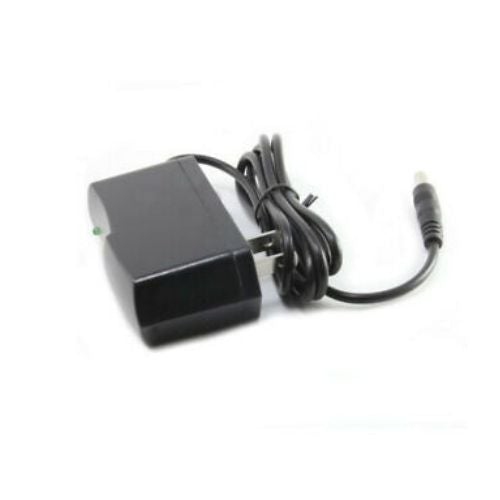

    ·1 x DC Power Adapter
