AT A GLANCE
·For Micro Four Thirds Cameras Only
·
·9-18mm Wide-Angle Zoom Lens
·
·Multi Coated Lens
·
·Close Focuses to 6"
·
·Aspherical Lens Elements
·
·Lightweight 5.5 oz Lens
·
·Compact 1.9" Long Lens
·
·Filter Thread 52 mm
·

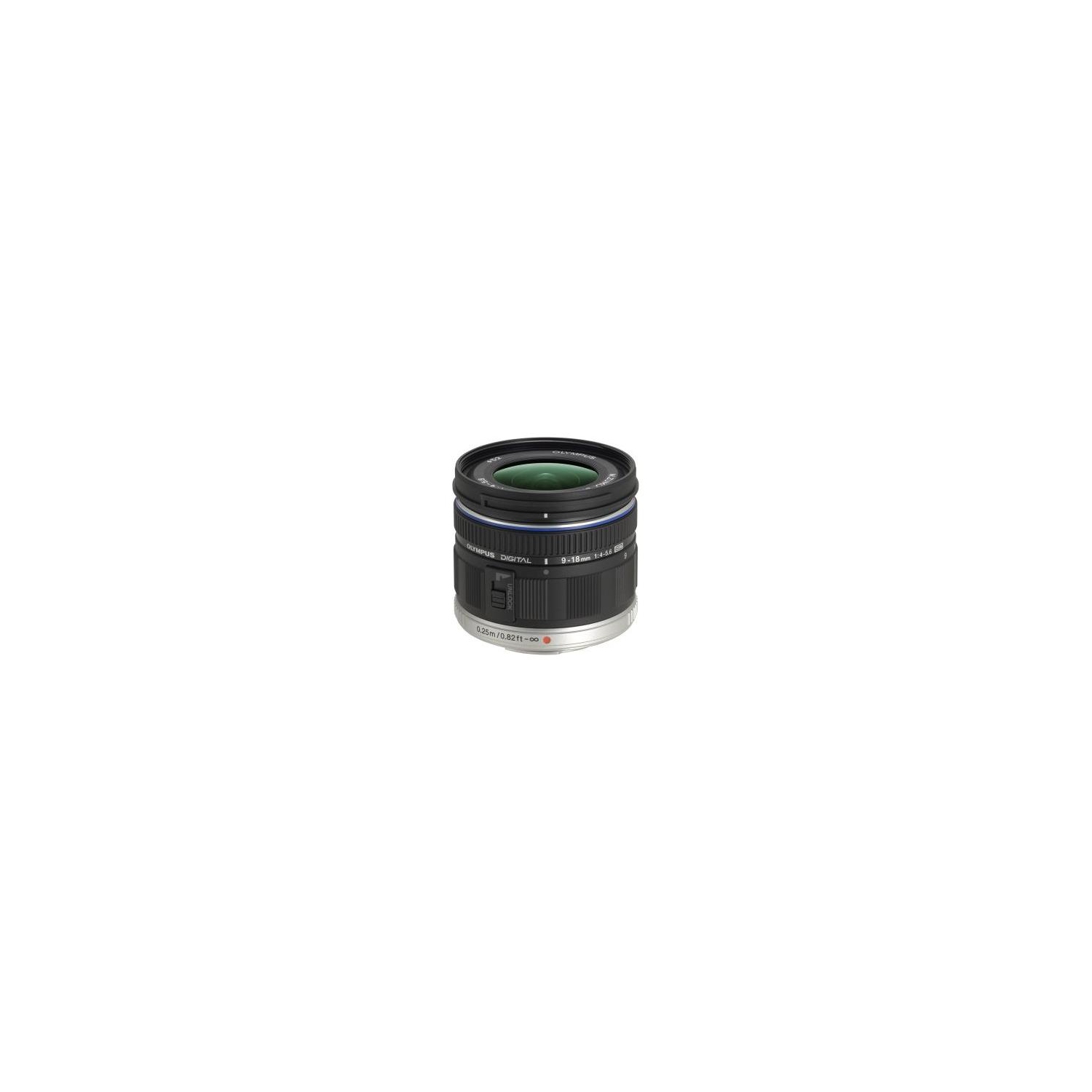

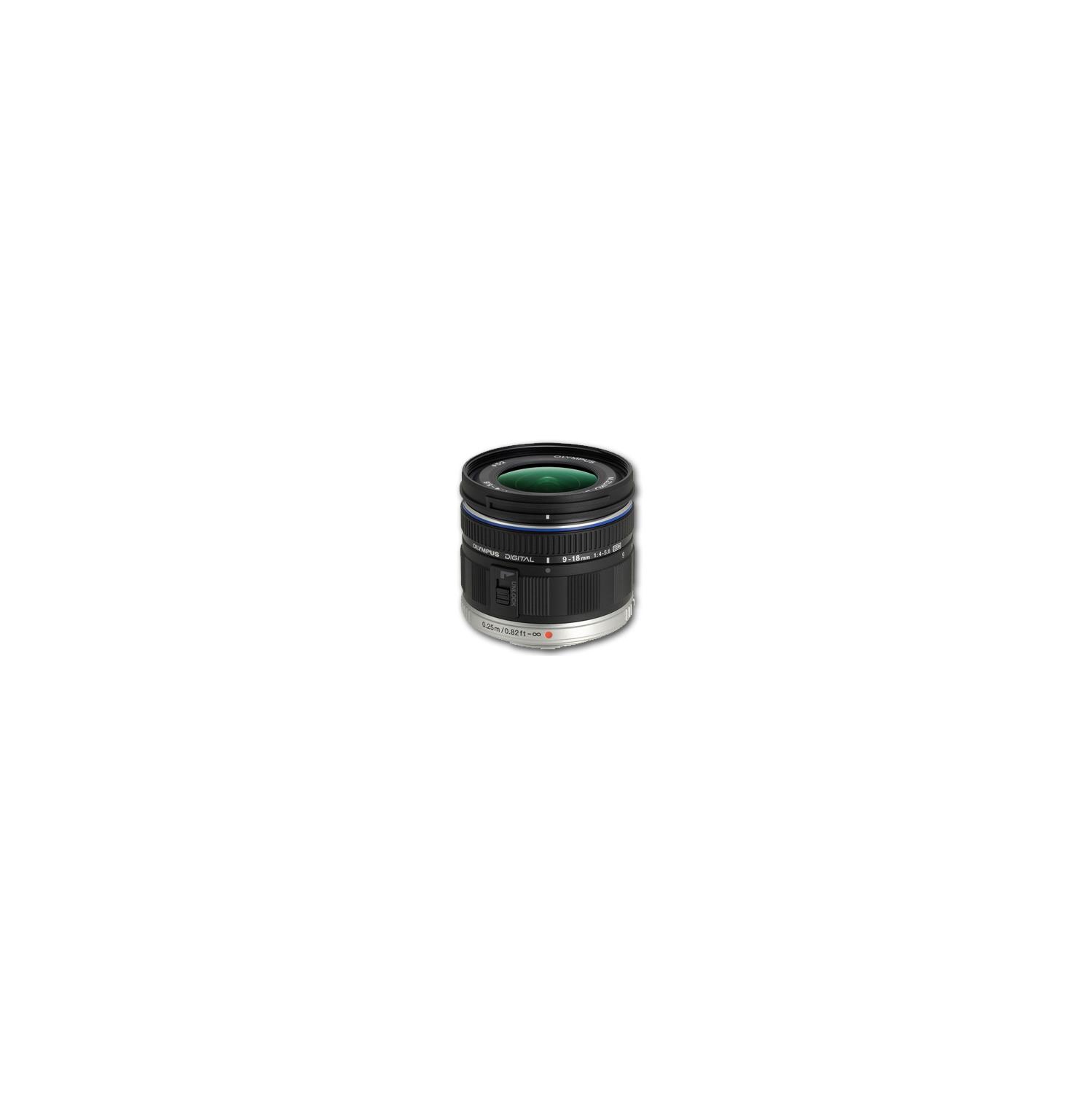

·DESCRIPTIONThe Olympus M.Zuiko Digital ED 9-18mm f/4.0-5.6 Lens is a super-wide-angle lens compatible with Micro Four Thirds System cameras. It offers a 100° angle of view, and overturns the rule that super wide-angle zooms have to be big and heavy. With a length of just 1.9" (49.5mm) and a weight of just 5.5 oz (155 g), it is less than half the size and 60% of the weight of the Zuiko Digital ED 9-18mm f/4.0-5.6. With its wide angle of view, it makes it easy to include background scenery in group photos, and can be used to create unique images with a sense of dynamically exaggerated perspective.A Dual Super Aspherical objective element, used at the front of the lens, makes it possible for the lens to offer a 100° angle of view, and dual aspherical elements are used at the back, to correct aberration and ensure superior image quality. Thanks to efficient optical design, the lens delivers an uncompromising combination of compact size and high quality, with clear imaging all the way to the periphery.Excellent Close-Focusing Performance
At the wide-angle end of the zoom range, the lens offers a minimum working distance of just 6" (15cm), making it possible to capture dramatic, wide-angle macro images.Dual Super Aspherical Objective Element
A Dual Super Aspherical objective element corrects aberration and ensures superior image quality. 1Full Multicoating of All Elements
All lens elements are multi-coated to ensure maximum light transmission and image clarity, with minimal ghosting and flaring in backlight.Circular Aperture Mechanism
A circular aperture mechanism is used to assure smooth, even background defocusing.High-Speed Autofocus
The inner focusing mechanism uses a light, compact, single-element unit to enable exceptionally fast, quiet autofocusing for smooth, stress-free still-image and movie shooting.Smooth Manual Focus
The manual focusing mechanism is designed to offer a responsive feel, with just the right amount of resistance to enable smooth, precise operation.SPECIFICATIONSFocal Length 9 - 18mm
Comparable 35mm Equivalent on Micro Four Thirds Format Focal Length 18 - 36 mm
Aperture Maximum: f/4 - 5.6 Minimum: f/22
Camera Mount Type Micro Four Thirds
Format Compatibility Micro Four Thirds
Angle of View 100° - 62°
Minimum Focus Distance 9.84" (25 cm)
Magnification 0.1x
Maximum Reproduction Ratio 1:10
Elements/Groups 12/8
Diaphragm Blades 7
Image Stabilization No
Autofocus Yes
Tripod Collar No
Exposure Control None
Filter Thread 52 mm
Dimensions (DxL) Approx. 2.22 x 1.95" (56.5 x 49.5 mm)
Weight 5.47 oz (155 g)
Package Weight 0.5 lb
Box Dimensions (LxWxH) 3.4 x 3.3 x 3.3"
·
