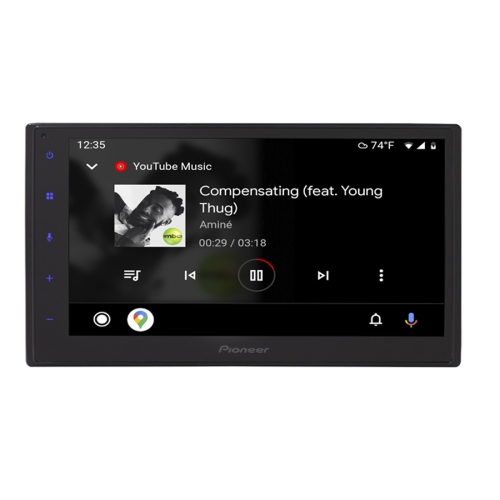

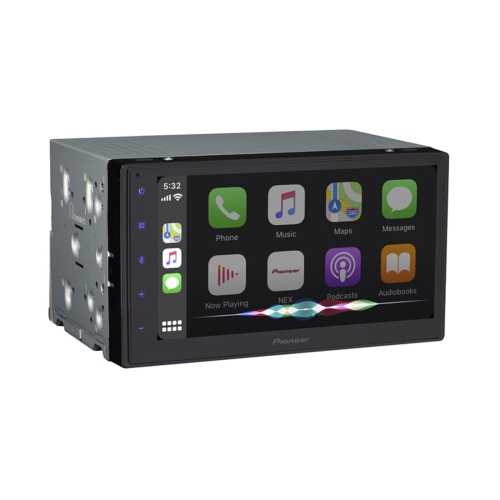

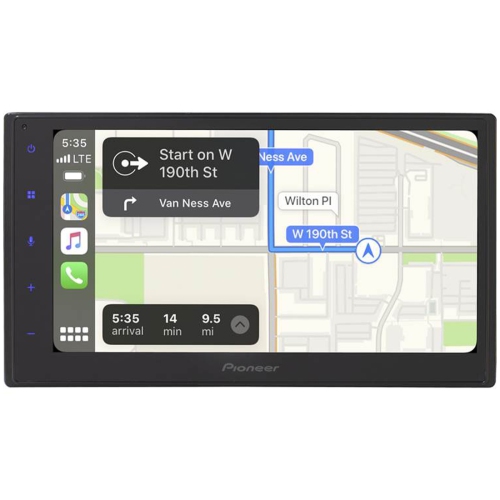

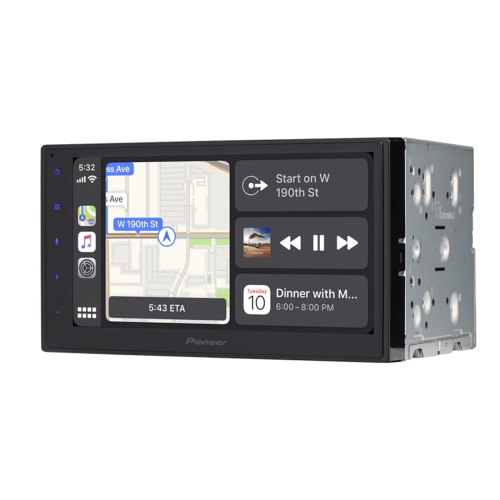

Pioneer DMH-1770NEX 6.8″ Capacitive Glass Touchscreen Digital Media Receiver

Pioneer DMH-1770NEX 6.8″ Capacitive Glass Touchscreen Digital Media Receiver

Model Number: 884938478946
Web Code: 15744738
Sold and shipped by | 4.5 seller rating (121 reviews)

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.


DMH-1770NEX 6.8" Capacitive Glass Touchscreen, Bluetooth, Back-up Camera Ready - Digital Media Receiver


No information available.

Seller Return Policy

Read return policy

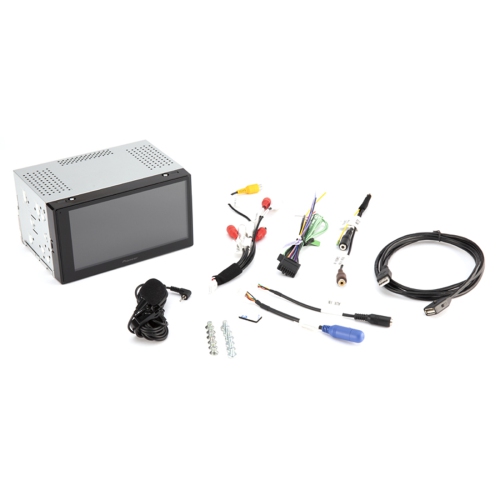

What's included:

  • Digital multimedia receiver(10A fuse)Wiring harnessRemote control (CXE5116)CR2025 3V lithium battery (installed in remote)AV/Preout harnessAux-in harnessCamera/SWC harnessSiriusXM harness58" USB extension cableMicrophone w/ bracket (attached 13' cable terminated by a right-angled 2.5mm connector)Two-sided tape6 Pan-head ISO screws (M5 x 9mm)6 Counter-sunk ISO screws (M5 x 9mm)Installation ManualQuick Start GuideWarranty Sheet

Product highlights:

General Features:

digital multimedia receiver with AM/FM tuner (does not play discs)

6.8" capacitive touchscreen

Bluetooth hands-free calling and audio streaming

multi-color illumination

fits double-DIN dash openings

wireless remote control

Smartphone Features:

Apple CarPlay compatible

Android Auto compatible

USB Mirroring for select Android phones

built-in iPhone/iPod control

playback and control of music files on compatible Android devices

Siri Hands Free compatible for use with iPhones

Google Voice compatible for use with Android phones

Audio/video Features:

plays MP3, WMA, AAC, FLAC, and WAV music files

plays lossless FLAC audio files up to 192kHz/24-bit

13-band graphic equalizer

7 EQ curve presets

high- and low-pass filters


works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features

inputs: rear USB port, rear-view camera input, rear 3.5mm A/V input

outputs: video output, 6-channel preamp outputs (2-volt front, rear, subwoofer)

Other Information:

wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

compatible with most factory steering wheel audio controls (adapter required)

built-in internal amp (14 watts RMS CTA-2006/50 peak x 4 channels)
