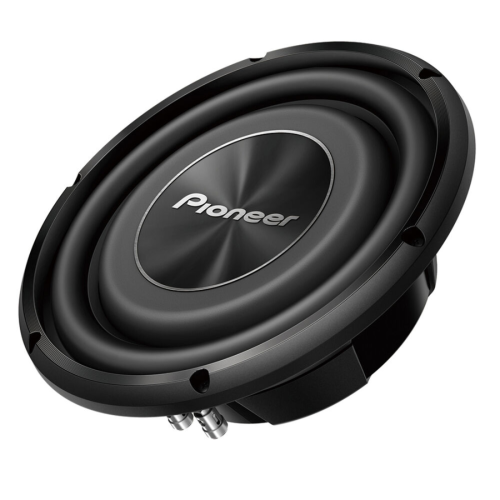

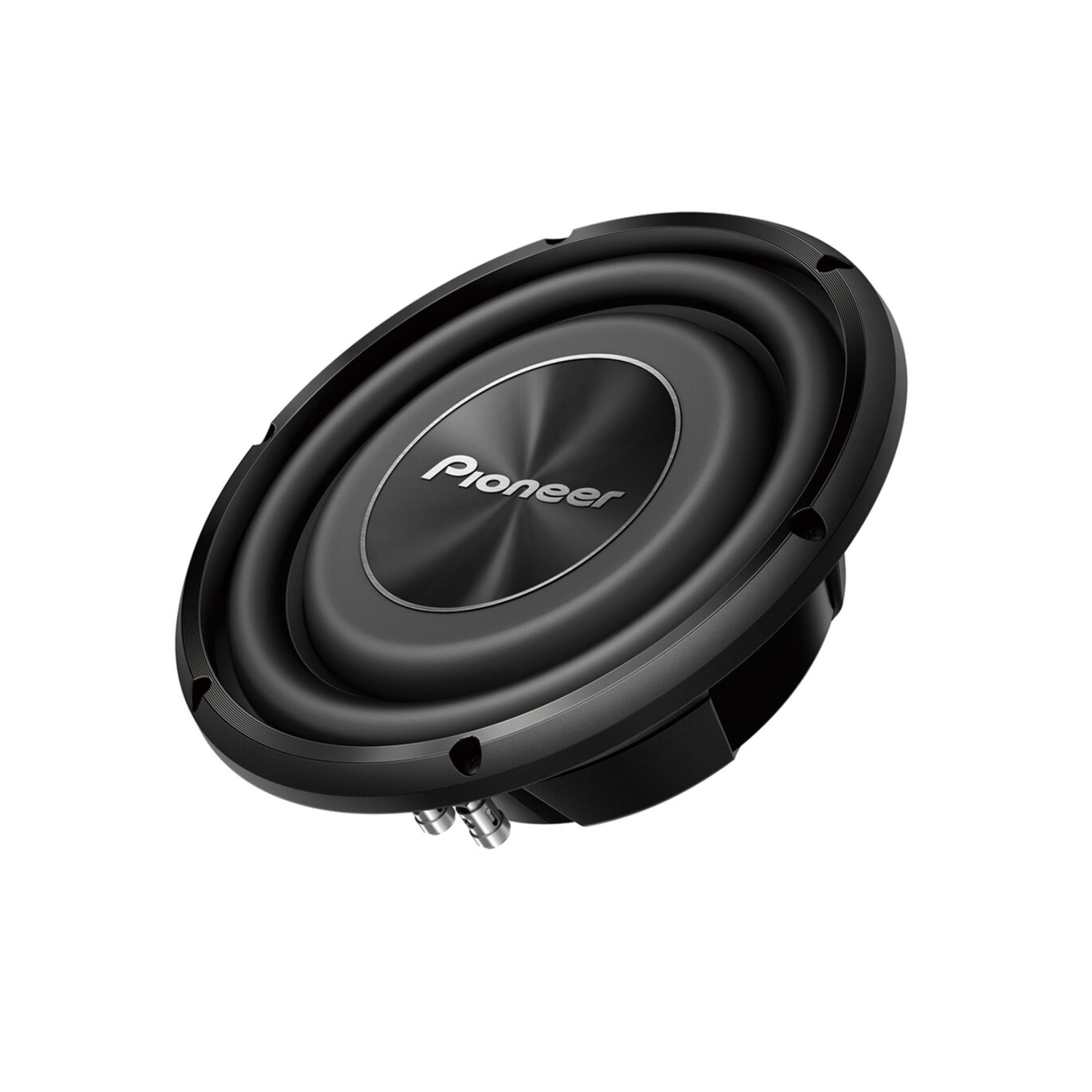

Pioneer TS-A3000LS4 12" Shallow Mount Subwoofer 1500W Max Power.

Pioneer TS-A3000LS4 12" Shallow Mount Subwoofer 1500W Max Power

Model: TS-A3000LS4
Web Code: 15388047
Sold and shipped by | 4.5 seller rating (226 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

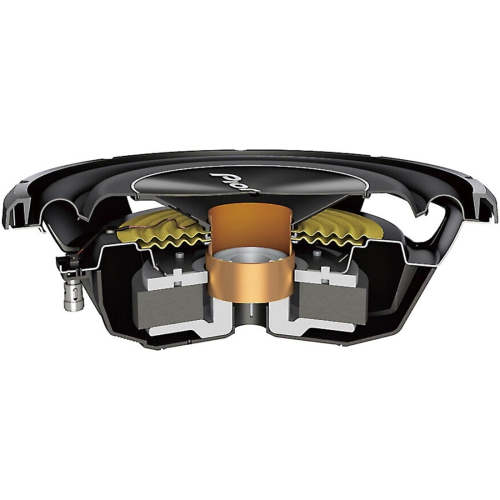

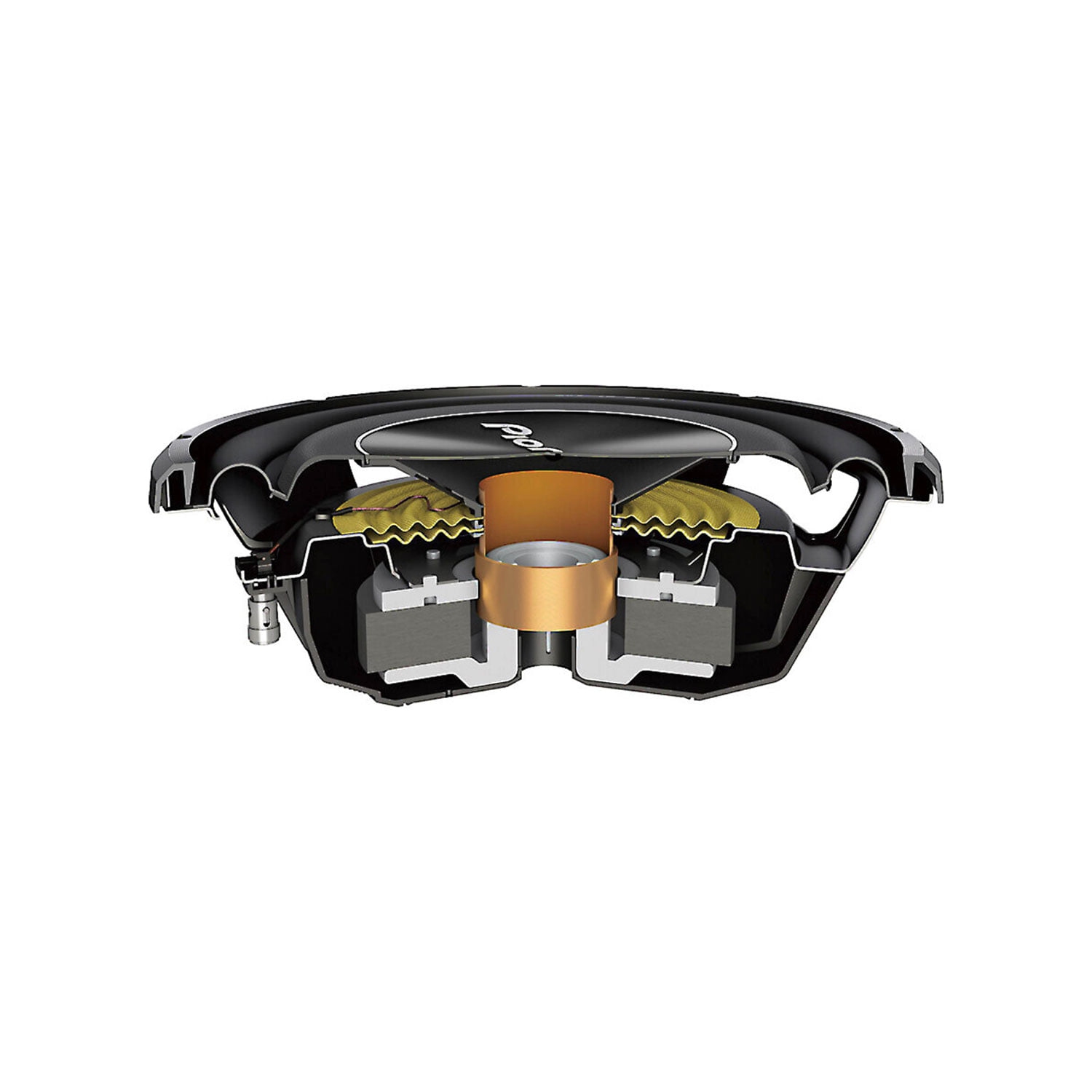

The cone structure of this Pioneer TS-A3000LS4 subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.

•1500 Watts Max Power (400 Watts Nominal)

•Unique Design with just 3-1/2" Mounting Depth

•Small Enclosure Use (0.5 ~ 1.0 cu. ft.)

•4 ohms Single Voice Coil

•Glass Fiber and Mica Reinforced IMPP Cone

•Double reinforced Spider

•8-AWG Push Terminals

•Rubber Surround

•System Type: Component Subwoofer

•Sensitivity (1W/1m): 88Db

•Frequency Range: 20 Hz to 1 kHz

•CTA-2031 Compliant: Yes

•Shape Round

•Size 12"

•Cone Material IMPP - Composite

•Center Cap Material ABS

•Surround Material Rubber

•Surround Type Rolled

•Basket Material Stamped Metal

•Magnet Material Ferrite

•Magnet Weight 71.6 oz

•Voice Coil Type Single Voice

•Voice Coil Bobbin Kapton

•Voice Coil wire Copper

•Damper Poly cotton

•Gasket PP

•Wire Terminals Push Type

•Unit Size (Dimensions) 12-1/2"

•Mounting Depth 3-1/2"

•Cut Out dimensions 11-1/8"

•Equivalent Compliance (VAS) [L] 45.6

•Free Air Resonance (Fs) [Hz] 31

•Total Speaker "Q" (Qts) 0.54

•Linear Excursion (Xmax) [mm] 8.8

•Recommended Sealed Box Volume [L] 22.6

•Port Box volume [L] 22.6

•Port Length 5-7/8"

•Port Diameter 3"

Product Condition
Brand New
