Overview

The LATNEX RF Signal Generator RF-SG6 is a powerful, wideband fully programmable RF signal generator. It is the perfect companion for the LATNEX Spectrum Analyzer product line.Frequency range supported: 24 to 6000 MHz

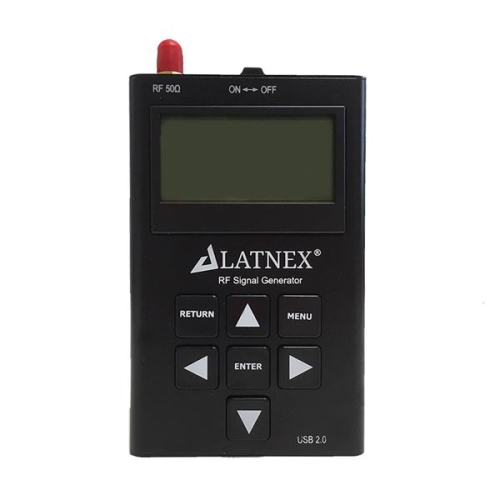

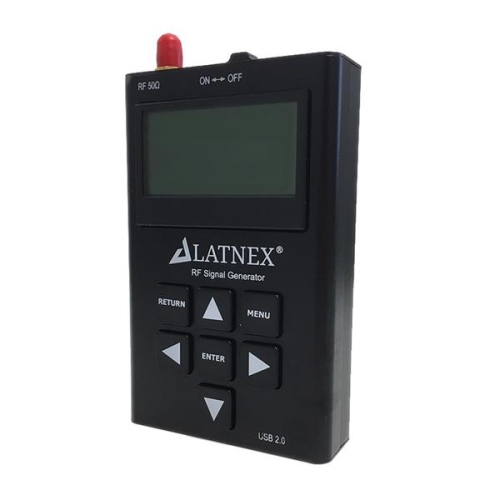

RF-SG6 RF Signal Generator. Handheld HF Frequency CW and Sweep Generator (24 to 6000 MHz)

Model: RF-SG6
Web Code: 13470518
Sold and shipped by | 4.4 seller rating (26 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • RF-SG6 Signal Generator

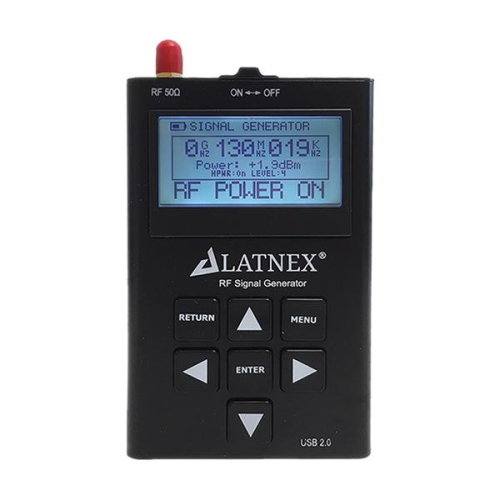

As a standalone unit, RF-SG6 can generate CW and Sweep signals by selecting embedded menu options. When connected to a PC, it can be fully programmed with the Windows software tool.

Further more, the unit can work as a powerful Tracking Generator when used with LATNEX Spectrum Analyzer connected to the same PC, offering full Scalar Network Analyzer (SNA) capabilities. The SNA feature allows full characterization of filters, amplifiers and any 2-port RF device.

Type
Signal Generator
Colour
Black
Other Features
Pocket size and light weight;Solid aluminum metal case;Lifetime free firmware upgrades available, open to community requested features;High capacity Lipo for 16hs+ of continuous run, rechargeable by USB;Windows PC client Open Source;Can be extended with internal Expansion Modules for additional future band support and functionality;Frequency range supported: 24 to 6000 MHz;Frequency step/resolution: 1KHz;Frequency stability: 0.5ppm;Temperature compensated (0-45C);Backlight for great indoor visib
Power Source
Lithium Cells / Batteries contained in equipment UN3481 - PI967
Batteries Included
Yes
Width
2.5 cm
Height
7 cm
Depth
11 cm
Weight
251 g
